HSS928 A ATD/A (SADA) - Honda 28" Snow Blower, Made in Japan (SN: SADA-2000001 - SADA-9999999) STARTER MOTOR (4) Parts Diagram

28" Snow Blower, Made in Japan

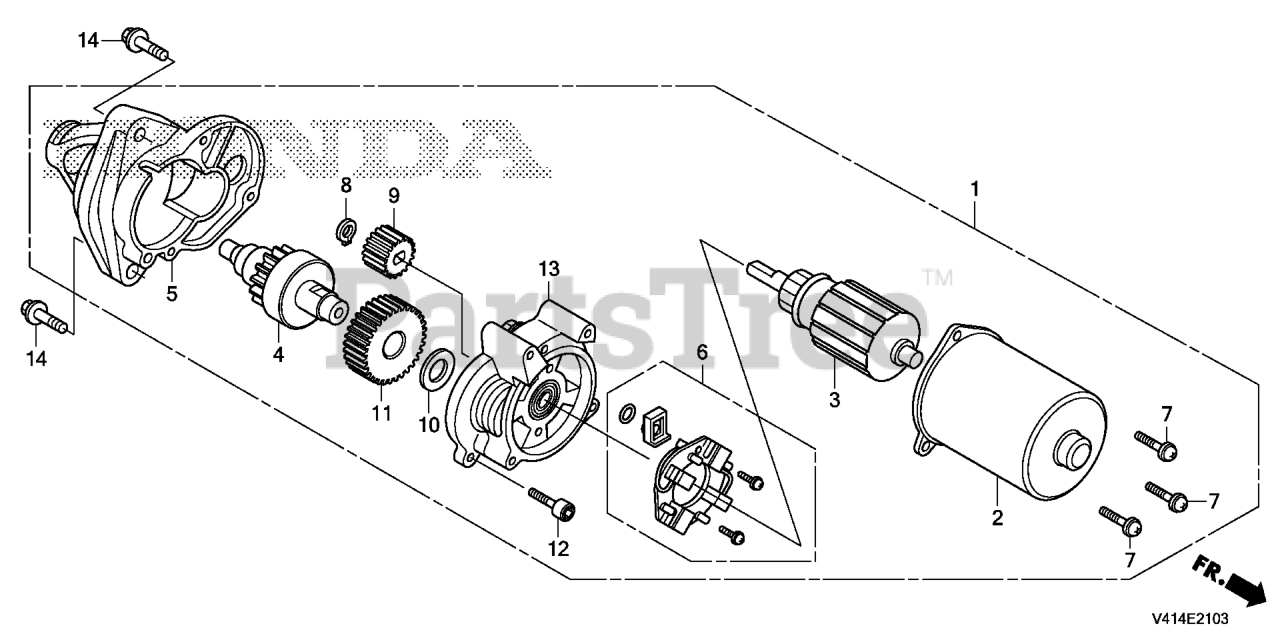

STARTER MOTOR (4) Parts Diagram

  • Title

1

Honda 31210-Z1D-H91

STARTER MOTOR UNIT

$138.99

$

Usually ships in 3-6 days

0

2

Honda 31211-Z7E-701

HOUSING ASSY.

$74.99

$

Usually ships in 3-6 days

0

3

Honda 31212-Z1C-701

ARMATURE ASSY.

$82.99

$

Usually ships in 3-6 days

0

4

Honda 31213-Z7E-701

GEAR ASSY., DRIVE

$241.99

$

Usually ships in 3-6 days

0

5

Honda 31214-Z1D-701

CONE ASSY., NOSE

$45.99

$

Usually ships in 3-6 days

0

6

Honda 31215-Z7E-701

BOARD ASSY., BRUSH

$45.99

$

Usually ships in 3-6 days

0

7

Honda 31218-Z7E-701

SCREW B

$3.99

$

Usually ships in 3-6 days

0

8

Honda 31222-Z7E-701

RING, RETAINER

$4.49

$

Usually ships in 3-6 days

0

9

Honda 31223-Z7E-701

GEAR A

$43.99

$

Usually ships in 3-6 days

0

10

Honda 31224-Z7E-701

WASHER

$8.49

$

Usually ships in 3-6 days

0

11

Honda 31225-Z7E-701

GEAR B

$72.99

$

Usually ships in 3-6 days

0

12

Honda 31226-Z7E-701

SCREW C

$5.99

$

Usually ships in 3-6 days

0

13

Honda 31230-Z1D-701

BRACKET ASSY.

$52.99

$

Usually ships in 3-6 days

0

14

Honda 95701-08040-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40) Use up to Engine SN 1003236.

$1.99

$

In Stock, Qty 20+

0
