HSS928 A ATD/A (SADA) - Honda 28" Snow Blower, Made in Japan (SN: SADA-2000001 - SADA-9999999) CHANGE LEVER (2) Parts Diagram

28" Snow Blower, Made in Japan

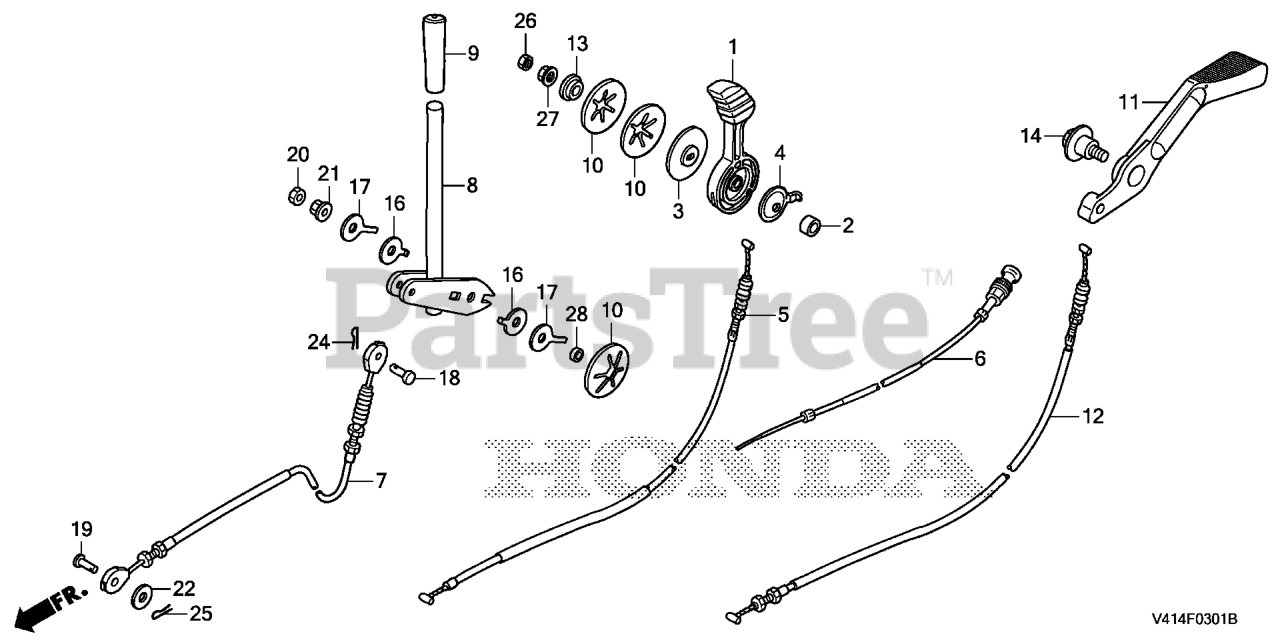

CHANGE LEVER (2) Parts Diagram

  • Title

1

Honda 17851-V45-A00

LEVER, THROTTLE

$6.49

$

Usually ships in 3-6 days

0

2

Honda 17856-V45-A10

COLLAR, THROTTLE PIN

$1.99

$

Usually ships in 3-6 days

0

3

Honda 17857-V03-000

PLATE, THROTTLE LEVER

$6.99

$

Usually ships in 3-6 days

0

4

Honda 17859-VA4-000

SEAT, SPRING

$5.99

$

Usually ships in 3-6 days

0

5

Honda 17910-V45-A21

CABLE, THROTTLE

$19.99

$

In Stock, only 1 left!

0

6

Honda 17950-V45-A20

CABLE, CHOKE

$13.99

$

In Stock, only 1 left!

0

7

Honda 24150-V45-A02

CABLE, CHANGE

$50.99

$

In Stock, only 4 left!

0

8

Honda 24410-V45-A00

LEVER, CHANGE

$14.99

$

Usually ships in 3-6 days

0

9

Honda 24411-734-A00

GRIP, CHANGE LEVER (ORANGE)

$8.99

$

Usually ships in 3-6 days

0

10

Honda 42915-959-000

SPRING, ADJUSTING ARM

$6.99

$

Usually ships in 3-6 days

0

11

Honda 42961-V45-A00

LEVER, HEIGHT ADJUSTING

$3.99

$

In Stock, only 2 left!

0

12

Honda 54620-V45-A01

CABLE, HEIGHT ADJUSTING

$44.99

$

Usually ships in 3-6 days

0

13

Honda 76316-V10-R10

COLLAR, CHUTE GUIDE

$13.99

$

Usually ships in 3-6 days

0

14

Honda 90106-V45-A00

BOLT, SPECIAL (8X22)

$1.99

$

Usually ships in 3-6 days

0

16

Honda 90501-V45-A00

WASHER, FRICTION

$0.99

$

Usually ships in 3-6 days

0

17

Honda 90502-767-000

WASHER, FRICTION SETTING

$4.49

$

Usually ships in 3-6 days

0

18

Honda 90751-V25-000

PIN, LOCK

$0.99

$

In Stock, only 1 left!

0

19

Honda 90763-V45-A00

PIN (8X34)

$1.49

$

Usually ships in 3-6 days

0

20

Honda 94002-080000S

NUT,HEX 8MM
(Superseded to 94002-08000-0S)

$1.99

$

Usually ships in 3-6 days

0

21

Honda 94071-08080

NUT-WASHER (8MM) (Honda Code 0612713).

$1.99

$

Usually ships in 3-6 days

0

22

Honda 94101-08000

SEE PART DETAILS - PRI; WASHER, PLAIN (8MM) (Honda Code 0059097).

$1.49

$

In Stock, Qty 20+

0

24

Honda 94201-16120

PIN, COTTER (1.6X12)

$1.49

$

In Stock, only 4 left!

0

25

Honda 94201-20181

PIN, SPLIT

$1.99

$

Usually ships in 3-6 days

0

26

Honda 94001-06080-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM) (Honda Code 0590455).

$1.99

$

In Stock, Qty 6

0

27

Honda 94050-06080

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0612689).

$0.99

$

In Stock, Qty 5

0

28

Honda 91401-V45-A00

TUBE, RUBBER (7.3X12.5X5.5)

$0.99

$

Usually ships in 3-6 days

0
