HSS928 A AT (SADA) - Honda 28" Snow Blower, Made in Japan (SN: SADA-1000001 - SADA-1999999) MUFFLER Parts Diagram

28" Snow Blower, Made in Japan

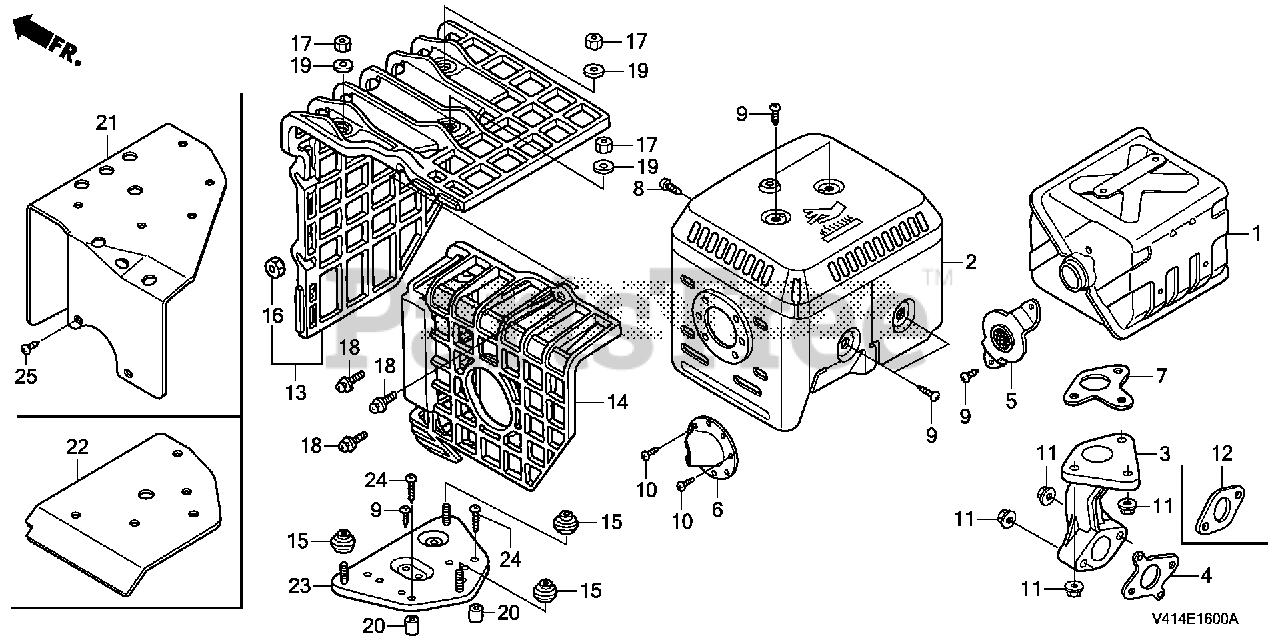

MUFFLER Parts Diagram

  • Title

1

Honda 18310-Z5K-010

SEE PART DETAILS - PRI; MUFFLER

$36.99

$

In Stock, only 1 left!

0

2

Honda 18320-Z5K-000

PROTECTOR, MUFFLER

$22.99

$

In Stock, only 1 left!

0

3

Honda 18331-Z5T-000

PIPE, EX.

$29.99

$

In Stock, only 1 left!

0

5

Honda 18336-ZE3-000

FLANGE, BAFFLE (Honda Code 2309581).

$14.99

$

Usually ships in 3-6 days

0

6

Honda 18337-Z1C-H00

CAP, MUFFLER

Note: Use up to Engine SN 1282636.

$42.99

$

Usually ships in 3-6 days

0

7

Honda 18381-ZE2-801

SEE PART DETAILS - PRI; GASKET, MUFFLER (NIPPON LEAKLESS)

$16.99

$

In Stock, only 2 left!

0

7

Honda 18381-Z1C-801

GASKET, MUFFLER (THAI LEAKLESS)

$16.99

$

In Stock, only 1 left!

0

8

Honda 90006-ZE2-000

SCREW, TAPPING (6X10)

$2.49

$

In Stock, only 3 left!

0

9

Honda 90050-ZE1-000

SCREW, TAPPING (5X8) (Honda Code 1431105).

Note: Use from Engine SN 1282637. Use up to Engine SN 1282636.

$2.49

$

In Stock, Qty 20+

0

10

Honda 90055-ZE1-000

SCREW, TAPPING (4X6) (TO INSTALL OPTIONAL SPARK ARRESTER)

Note: Use up to Engine SN 1282636.

$1.49

$

In Stock, Qty 20+

0

11

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

12

Honda 18333-Z1C-801

GASKET, EX. PIPE

$3.99

$

In Stock, Qty 7

0

13

Honda 18433-ZE2-J00

COVER, MUFFLER PROTECTOR

Note: Use from Engine SN 1011357.

$17.99

$

In Stock, only 2 left!

0

14

Honda 18434-Z5T-000

COVER, RR. MUFFLER

Note: Use from Engine SN 1011357.

$66.99

$

In Stock, only 2 left!

0

15

Honda 18466-ZH8-W40

SPACER, MUFFLER COVER (Honda Code 4787198).

Note: Use from Engine SN 1011357.

$8.99

$

Usually ships in 3-6 days

0

16

Honda 90301-782-000

NUT, U (6MM)

Note: Use from Engine SN 1011357.

$2.49

$

Usually ships in 3-6 days

0

17

Honda 90302-KF9-900

NUT, HEX. (5MM) (Honda Code 4787214).

Note: Use from Engine SN 1011357.

$4.99

$

Usually ships in 3-6 days

0

18

Honda 93891-06020-07

SCREW-WASHER (6X20) (Honda Code 1188614).

Note: Use from Engine SN 1011357.

$1.99

$

In Stock, Qty 6

0

19

Honda 94103-05700

WASHER, PLAIN (5MM) (Honda Code 0692491).

Note: Use from Engine SN 1011357.

$1.49

$

In Stock, only 4 left!

0

20

Honda 17233-896-701

COLLAR, AIR CLEANER HOUSING (Honda Code 2577419).

Note: Use from Engine SN 1282637.

$5.49

$

Usually ships in 3-6 days

0

22

Honda 18321-Z1D-H70

PROTECTOR, MUFFLER (UPPER)

Note: Use from Engine SN 1282637.

$10.99

$

Usually ships in 3-6 days

0

23

Honda 18436-Z1D-H70

BASE COMP

Note: Use from Engine SN 1282637.

$6.49

$

Usually ships in 3-6 days

0

24

Honda 90050-ZH8-W40

SCREW, TAPPING (5X25) (Honda Code 4787206).

Note: Use from Engine SN 1282637.

$3.49

$

Usually ships in 3-6 days

0
