HSS928 A AT (SADA) - Honda 28" Snow Blower, Made in Japan (SN: SADA-1000001 - SADA-1999999) HANDLEBAR (2) Parts Diagram

28" Snow Blower, Made in Japan

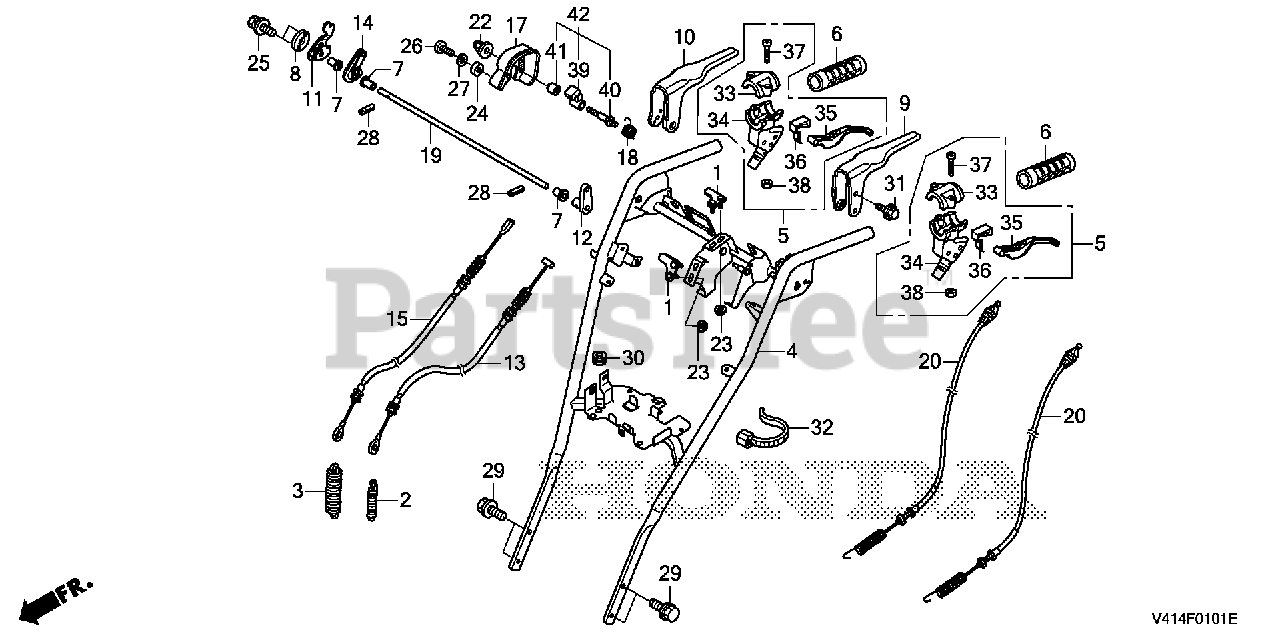

HANDLEBAR (2) Parts Diagram

  • Title

1

Honda 24413-V45-A00

BRACKET, STOPPER

Note: Use up to Frame SN 1005593.

$9.99

$

Usually ships in 3-6 days

0

1

Honda 24413-V45-A01

BRACKET, STOPPER

Note: Use from Frame SN 1005594.

$10.99

$

Usually ships in 3-6 days

0

2

Honda 24468-V45-A00

SPRING, WHEEL TENSION

$33.99

$

In Stock, only 2 left!

0

3

Honda 24469-V45-A00

SPRING, AUGER TENSIONER

$3.49

$

Usually ships in 3-6 days

0

4

Honda 53110-V45-A20ZB

PIPE, HANDLE (UPPER) *NH105* (MAT BLACK)

$482.99

$

Usually ships in 3-6 days

0

5

Honda 53175-V45-A01

LEVER ASSY., STEERING

$16.99

$

Usually ships in 3-6 days

0

6

Honda 53321-V45-A00

GRIP, HANDLE

$2.99

$

Usually ships in 3-6 days

0

7

Honda 53437-V45-A00

BUSHING (A)

$0.99

$

Usually ships in 3-6 days

0

8

Honda 54414-V45-A00

BOSS, CLUTCH SPACER

$2.99

$

Usually ships in 3-6 days

0

9

Honda 54415-V45-A00

LEVER, CLUTCH

$42.99

$

Usually ships in 3-6 days

0

10

Honda 54416-V45-A00

LEVER, AUGER CLUTCH

$46.99

$

Usually ships in 3-6 days

0

11

Honda 54418-V45-A00

BOSS, R. CLUTCH LEVER

$7.49

$

In Stock, only 2 left!

0

12

Honda 54419-V45-A00

BOSS, CLUTCH LEVER

$9.99

$

Usually ships in 3-6 days

0

13

Honda 54510-V45-A01

CABLE, CLUTCH

$29.99

$

In Stock, Qty 5

0

14

Honda 54520-V45-A00

BOSS, CAM LOCK

$5.49

$

Usually ships in 3-6 days

0

15

Honda 54521-V45-A01

CABLE, AUGER CLUTCH

$50.99

$

Usually ships in 3-6 days

0

17

Honda 54535-V45-A00

COVER, RATCHET

$31.99

$

Usually ships in 3-6 days

0

18

Honda 54536-V45-A00

SPRING, RATCHET

$24.99

$

Usually ships in 3-6 days

0

19

Honda 54550-V45-A00

SHAFT, CLUTCH LEVER

$15.99

$

Usually ships in 3-6 days

0

20

Honda 54720-V45-A01

CABLE, STEERING

Note: Use up to Frame SN 1016792.

$51.99

$

In Stock, only 2 left!

0

20

Honda 54720-V45-A02

CABLE, STEERING

Note: Use from Frame SN 1016793.

$53.99

$

In Stock, only 2 left!

0

22

Honda 90201-ZM0-J20

NUT, FLANGE CAP (6MM)

$2.99

$

Usually ships in 3-6 days

0

23

Honda 90303-VH3-N10

NUT, NYLON LOCK (6MM)

$1.99

$

In Stock, Qty 5

0

24

Honda 91501-Z0L-800

COLLAR, FUEL PETCOCK (Honda Code 6978399).

$1.99

$

In Stock, only 1 left!

0

25

Honda 93401-06016-00

BOLT-WASHER (6X16)

$2.49

$

Usually ships in 3-6 days

0

26

Honda 93500-04012-0H

SEE PART DETAILS - PRI; SCREW, PAN (4X12) (Honda Code 0285643).

$1.49

$

In Stock, only 2 left!

0

27

Honda 94101-04000

SEE PART DETAILS - PRI; WASHER, PLAIN (4MM) (Honda Code 0059048).

$1.49

$

In Stock, only 1 left!

0

28

Honda 94305-40201

PIN, SPRING (4X20)

$2.49

$

Usually ships in 3-6 days

0

29

Honda 95701-08016-07

BOLT, FLANGE (8X16)

$2.49

$

In Stock, Qty 6

0

31

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use from Engine SN 2086984.

$2.49

$

In Stock, Qty 9

0

32

Honda 90651-KV6-003

BAND, WIRE (165MM) (BLACK)

$4.99

$

Usually ships in 3-6 days

0

33

Honda 53176-V45-A01

CLAMP (NA USE ALT:53175-V45-A01)

$

$

Not available

34

Honda 53177-V45-A01

BRACKET (NA USE ALT:53175-V45-A01)

$

$

Not available

35

Honda 53178-V45-A01

LEVER (NA USE ALT:53175-V45-A01)

$

$

Not available

36

Honda 53179-V45-A01

PIVOT (NA USE ALT:53175-V45-A01)

$

$

Not available

37

Honda 90103-V45-A00

BOLT, SOCKET (5X25) (NA USE ALT:53175-V45-A01)

$

$

Not available

38

Honda 90302-V45-A00

NUT, NYLON LOCK (5MM) (NA USE ALT:53175-V45-A01)

$

$

Not available

39

Honda 54531-V45-A01

RATCHET, LEVER

Note: Use from Frame SN 1010501.

$2.99

$

Usually ships in 3-6 days

0

40

Honda 90127-V45-A00

BOLT, RATCHET LEVER

Note: Use from Frame SN 1010501.

$3.99

$

Usually ships in 3-6 days

0

41

Honda 91564-V45-A00

COLLAR, RATCHET COVER

Note: Use from Frame SN 1010501.

$2.49

$

Usually ships in 3-6 days

0

42

Honda 04401-V45-A00

RATCHET KIT

Note: Use up to Frame SN 1010500.

$9.49

$

Usually ships in 3-6 days

0
