HSS928 A AT/A (SADA) - Honda 28" Snow Blower, Made in Japan (SN: SADA-2000001 - SADA-9999999) DRIVEN PULLEY (2) Parts Diagram

28" Snow Blower, Made in Japan

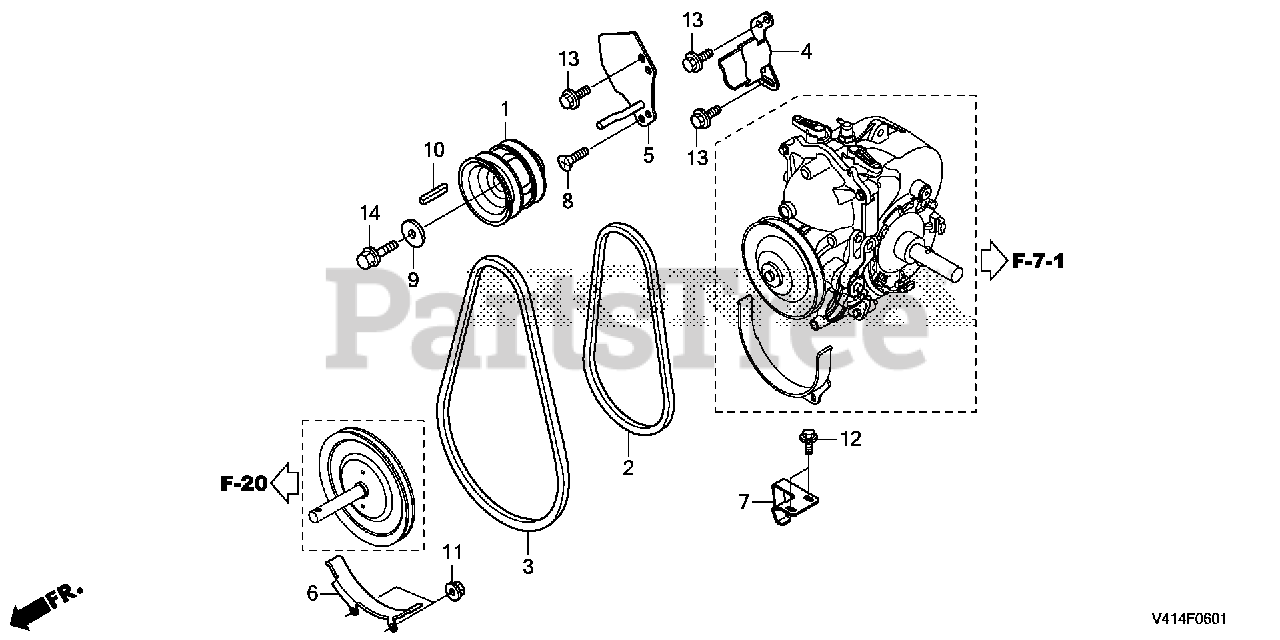

DRIVEN PULLEY (2) Parts Diagram

  • Title

1

Honda 22410-V45-A20

PULLEY, DRIVE

$63.99

$

Usually ships in 3-6 days

0

2

Honda 22431-V45-A11

V-BELT (SA-37) (W400)

$26.99

$

In Stock, only 2 left!

0

3

Honda 22432-V45-A11

V-BELT (SB-41.5) (W800)

$65.99

$

In Stock, only 2 left!

0

4

Honda 22441-V45-A20

STOPPER, L. BELT

$4.49

$

Usually ships in 3-6 days

0

5

Honda 22442-V45-A30

STOPPER, R. BELT

$17.99

$

Usually ships in 3-6 days

0

6

Honda 22444-V45-A00

STOPPER, AUGER BELT

$12.99

$

Usually ships in 3-6 days

0

7

Honda 22453-V45-A00

GUIDE, BELT

$7.99

$

Usually ships in 3-6 days

0

8

Honda 90125-V45-A20

BOLT, LOCK STRIKER

$1.49

$

Usually ships in 3-6 days

0

9

Honda 90534-706-010

SEE PART DETAILS - PRI; WASHER, LOCK (8MM) (Honda Code 0177998).

$7.49

$

Usually ships in 3-6 days

0

10

Honda 90741-889-810

SEE PART DETAILS - PRI; KEY (7X7X33) (Honda Code 1064039).

$10.99

$

Usually ships in 3-6 days

0

11

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

12

Honda 95701-06014-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X14) (Honda Code 2410884).

$1.49

$

In Stock, only 4 left!

0

13

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) Use from Engine SN 1000016.

$2.49

$

In Stock, Qty 13

0

14

Honda 95701-08028-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X28) (Honda Code 2581387).

$1.99

$

Usually ships in 3-6 days

0
