HSS724 A AWL (SABA) - Honda 24" Snow Blower, Made in USA (SN: SABA-2000001 - SABA-9999999) CONTROL Parts Diagram

24" Snow Blower, Made in USA

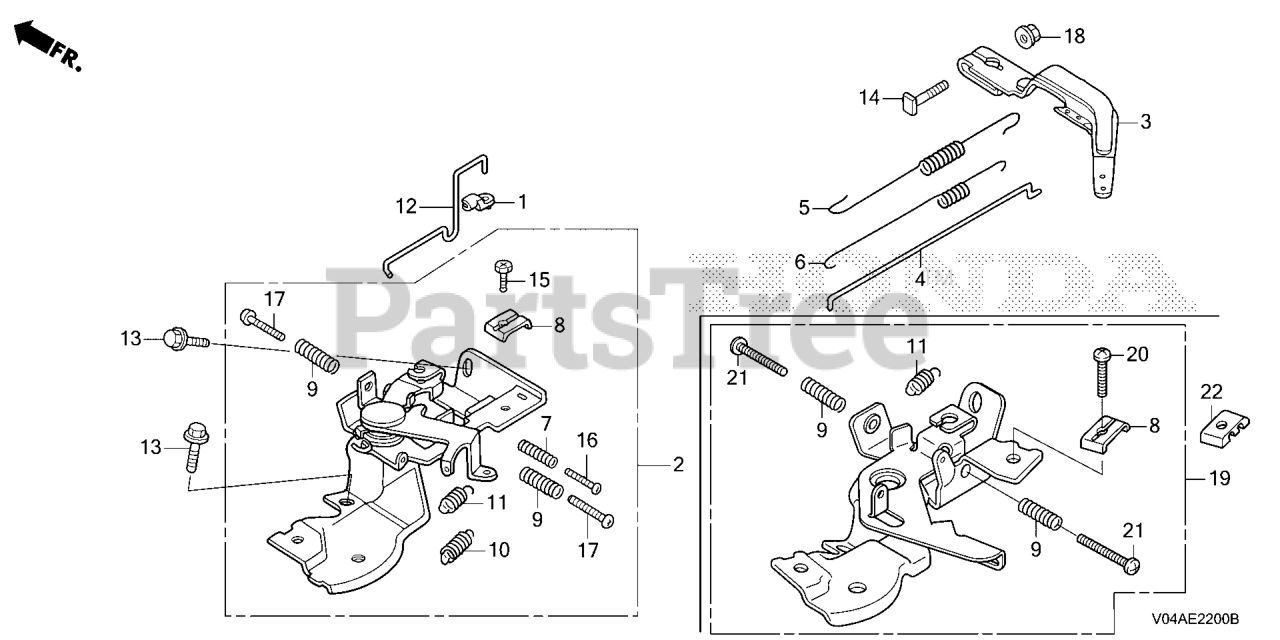

CONTROL Parts Diagram

  • Title

3

Honda 16551-Z4M-000

ARM, GOVERNOR

$17.99

$

Usually ships in 3-6 days

0

4

Honda 16555-Z0T-N70

ROD, GOVERNOR

$5.49

$

In Stock, Qty 6

0

5

Honda 16561-ZE1-710

SPRING, GOVERNOR

$5.49

$

Usually ships in 3-6 days

0

6

Honda 16562-ZE1-020

SEE PART DETAILS - PRI; SPRING, THROTTLE RETURN (Honda Code 1950625).

$4.49

$

In Stock, Qty 20+

0

8

Honda 16576-891-000

HOLDER, CABLE (Honda Code 0800466).

Note: Use up to Engine SN 3636937.

$5.49

$

In Stock, Qty 10

0

9

Honda 16584-883-300

SPRING, CONTROL ADJUSTING Use from Engine SN 2327377.

$5.49

$

In Stock, only 2 left!

0

11

Honda 16592-ZE1-810

SPRING, CABLE RETURN (Honda Code 1445774).

$2.49

$

In Stock, Qty 14

0

13

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$2.49

$

In Stock, Qty 20+

0

14

Honda 90015-Z5T-000

BOLT, GOVERNOR ARM

$0.99

$

In Stock, Qty 8

0

18

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

19

Honda 16500-Z0T-N00

CONTROL ASSY. (HS)

Note: Use up to Engine SN 3636937.

$13.99

$

Usually ships in 3-6 days

0

19

Honda 16500-Z0T-N10

CONTROL ASSY. (HS)

Note: Use from Engine SN 3636938.

$

$

Currently unavailable

20

Honda 92301-05016-0A

SEE PART DETAILS - PRI; BOLT, RECESSED (5X16) (Honda Code 3509742).

Note: Use from Engine SN 3636938.

$1.99

$

Usually ships in 3-6 days

0

20

Honda 93500-05016-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X16) (Honda Code 0145557).

Note: Use up to Engine SN 3636937.

$1.49

$

In Stock, Qty 6

0

21

Honda 93500-05025-0H

SCREW, PAN (5X25) (Honda Code 0374702).

$1.49

$

In Stock, only 4 left!

0

22

Honda 16617-VG3-000

HOLDER, CABLE

Note: Use from Engine SN 2013290.

$6.99

$

In Stock, only 4 left!

0
