HSS724 A AWD (SABA) - Honda 24" Snow Blower, Made in USA (SN: SABA-1000001 - SABA-1999999) CHUTER (4) Parts Diagram

24" Snow Blower, Made in USA

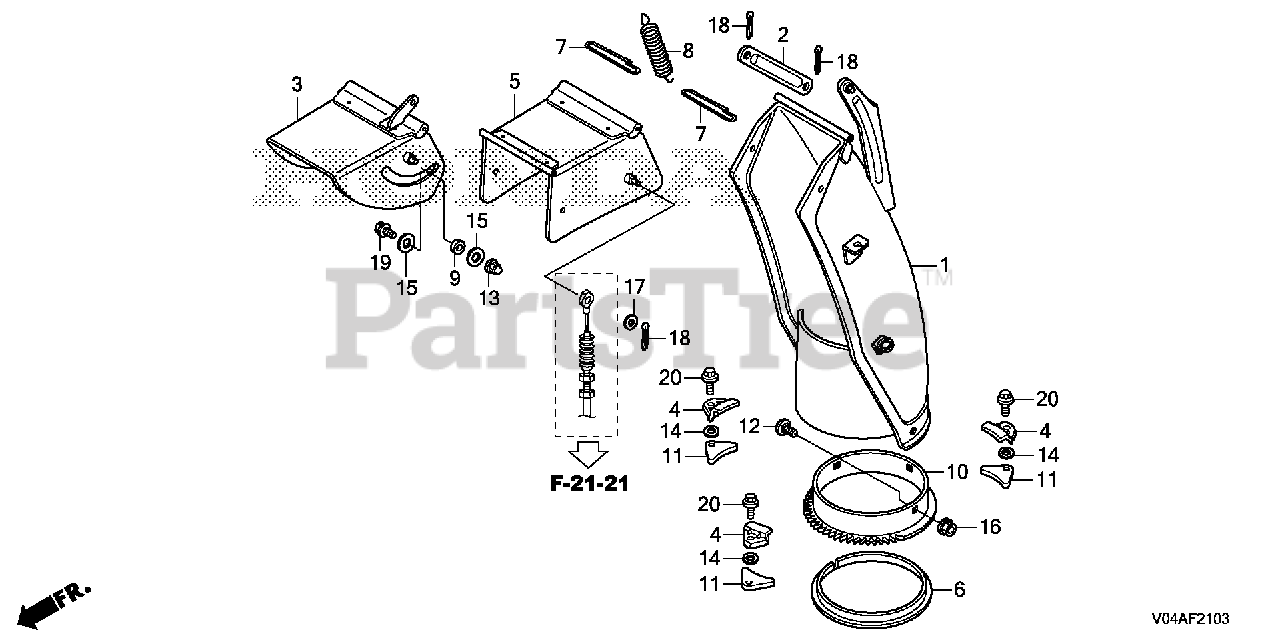

CHUTER (4) Parts Diagram

  • Title

1

Honda 76310-V45-A01ZA

CHUTE *R280* (POWER RED)

$71.99

$

Usually ships in 3-6 days

0

3

Honda 76320-V45-A00

GUIDE, CHUTE

$21.99

$

Usually ships in 3-6 days

0

4

Honda 76321-V45-A00

PLATE, CHUTE SETTING

$13.99

$

In Stock, only 2 left!

0

4

Honda 76321-V45-A01

PLATE, CHUTE SETTING

$2.99

$

Usually ships in 3-6 days

0

6

Honda 76325-V45-A00

BUSH, CHUTE

$4.49

$

Usually ships in 3-6 days

0

7

Honda 76326-V45-A00

PIN, CHUTE GUIDE

$2.49

$

In Stock, Qty 6

0

8

Honda 76328-V45-A00

SPRING, CHUTE (STD)

$2.49

$

Usually ships in 3-6 days

0

9

Honda 76329-V45-A00

COLLAR, CHUTE GUIDE

$0.99

$

Usually ships in 3-6 days

0

10

Honda 76331-V45-A00

GEAR, CHUTE

$24.99

$

Usually ships in 3-6 days

0

11

Honda 81360-V45-A00

PLATE, MOUNTING

$4.99

$

In Stock, only 2 left!

0

12

Honda 90132-V45-A00

BOLT, SPECIAL (8X14)

$0.99

$

Usually ships in 3-6 days

0

13

Honda 90201-415-000

NUT, CAP (6MM) (Honda Code 0670729).

$2.99

$

Usually ships in 3-6 days

0

14

Honda 90502-V45-A00

WASHER, CHUTE SETTING

$0.99

$

Usually ships in 3-6 days

0

15

Honda 90508-V45-A00

WASHER (10.2X22X1)

$0.99

$

Usually ships in 3-6 days

0

16

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 11

0

17

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 5

0

18

Honda 94201-20181

PIN, SPLIT

$1.99

$

Usually ships in 3-6 days

0

19

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$2.49

$

In Stock, Qty 19

0

20

Honda 95701-08016-07

BOLT, FLANGE (8X16)

$2.49

$

Usually ships in 3-6 days

0
