HSS724 A ATD (SABA) - Honda 24" Snow Blower, Made in USA (SN: SABA-1000001 - SABA-1999999) STARTER MOTOR (2) Parts Diagram

24" Snow Blower, Made in USA

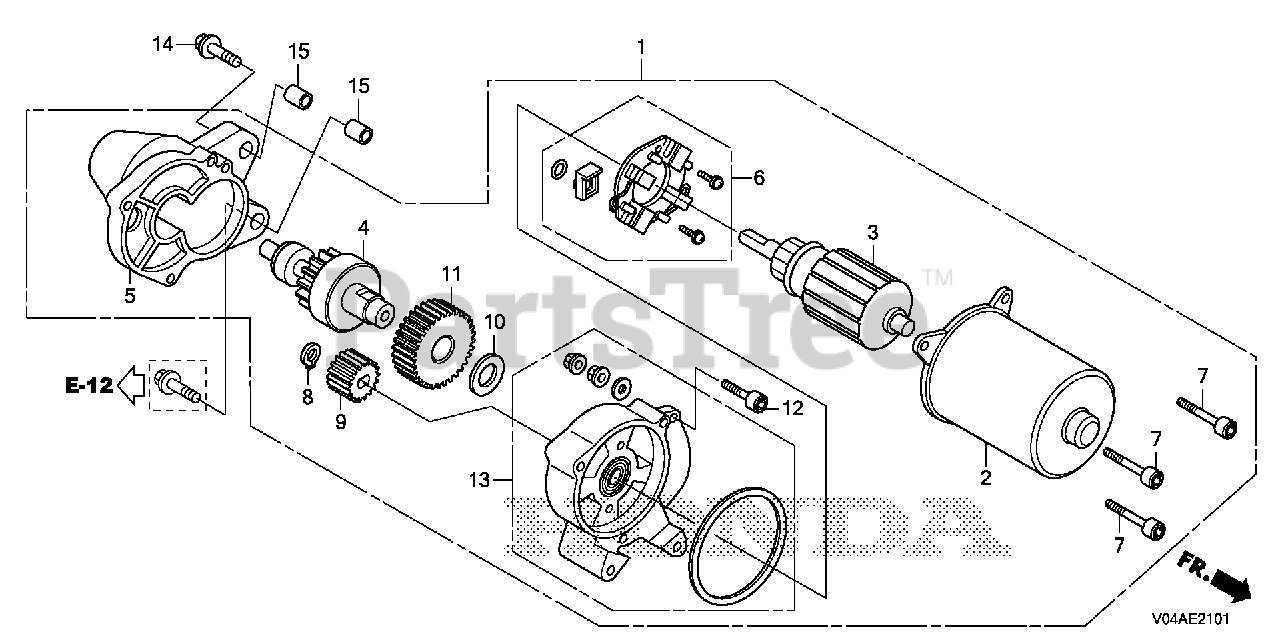

STARTER MOTOR (2) Parts Diagram

  • Title

1

Honda 31210-Z0V-H31

STARTER MOTOR UNIT

$255.99

$

Usually ships in 3-6 days

0

2

Honda 31211-Z7E-701

HOUSING ASSY.

$74.99

$

Usually ships in 3-6 days

0

3

Honda 31212-Z0V-701

ARMATURE ASSY.

$53.99

$

Usually ships in 3-6 days

0

4

Honda 31213-Z0V-701

GEAR ASSY., DRIVE

$104.99

$

Usually ships in 3-6 days

0

5

Honda 31214-Z0V-701

CONE ASSY., NOSE

$79.99

$

Usually ships in 3-6 days

0

6

Honda 31215-Z7E-701

BOARD ASSY., BRUSH

$45.99

$

Usually ships in 3-6 days

0

7

Honda 31218-Z7E-701

SCREW B

$3.99

$

Usually ships in 3-6 days

0

8

Honda 31222-Z7E-701

RING, RETAINER

$4.49

$

Usually ships in 3-6 days

0

9

Honda 31223-Z0V-701

GEAR A

$30.99

$

Usually ships in 3-6 days

0

10

Honda 31224-Z7E-701

WASHER

$8.49

$

Usually ships in 3-6 days

0

11

Honda 31225-Z0V-701

GEAR B

$33.99

$

Usually ships in 3-6 days

0

12

Honda 31226-Z0V-701

SCREW C

$10.99

$

Usually ships in 3-6 days

0

13

Honda 31230-Z0V-701

BRACKET ASSY.

$67.99

$

Usually ships in 3-6 days

0

14

Honda 90017-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X32) (Honda Code 0636076).

$3.49

$

In Stock, only 1 left!

0

15

Honda 94301-08100

SEE PART DETAILS - PRI; PIN A, DOWEL (8X10)

$2.99

$

Usually ships in 3-6 days

0
