HSS724 A AT (SABA) - Honda 24" Snow Blower, Made in USA (SN: SABA-1000001 - SABA-1999999) AUGER Parts Diagram

24" Snow Blower, Made in USA

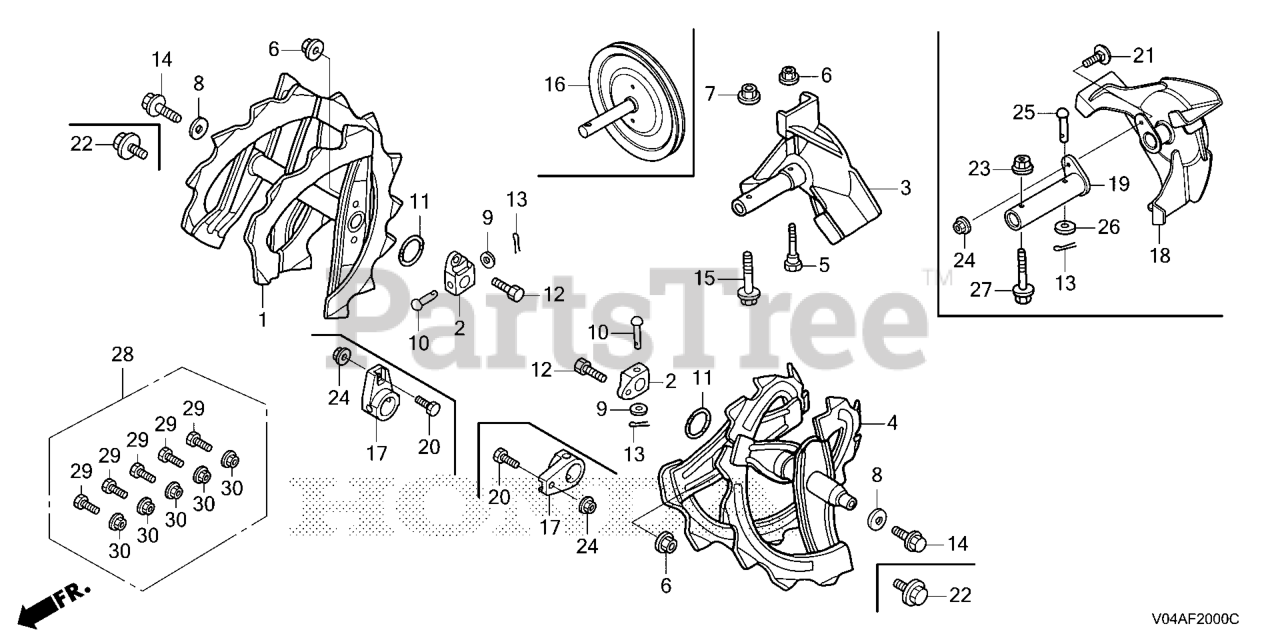

AUGER Parts Diagram

  • Title

1

Honda 72410-V45-A00

AUGER, R.

$200.99

$

Usually ships in 3-6 days

0

2

Honda 72419-767-013

SEE PART DETAILS - PRI; BOSS, LOCK BOLT

Note: (Optional) Use from Frame SN 1010576.

$28.99

$

In Stock, only 1 left!

0

4

Honda 72450-V45-A00

AUGER, L.

$269.99

$

Usually ships in 3-6 days

0

9

Honda 90503-V45-A00

WASHER, PLAIN (7MM)

$2.99

$

In Stock, only 1 left!

0

10

Honda 90757-767-000

PIN (7X40)

Note: Use from Frame SN 1010576.

$4.99

$

In Stock, Qty 20+

0

11

Honda 91351-V45-A00

O-RING (18.23X1.9)

$5.49

$

Usually ships in 3-6 days

0

13

Honda 94201-30450

SEE PART DETAILS - PRI; PIN, COTTER (3.0X45) (Honda Code 0058453).

$1.49

$

In Stock, Qty 11

0

16

Honda 22420-V45-A00

PULLEY, DRIVEN

$128.99

$

Usually ships in 3-6 days

0

17

Honda 72419-V45-A00

BOSS, LOCK BOLT
(Superseded to 72419-767-013)

$28.99

$

In Stock, only 1 left!

0

17

Honda 72419-767-013

SEE PART DETAILS - PRI; BOSS, LOCK BOLT

$28.99

$

In Stock, only 1 left!

0

18

Honda 72440-V45-A00

BLOWER

$258.99

$

Usually ships in 3-6 days

0

19

Honda 72442-V45-A00

PIPE, JOINT

$37.99

$

Usually ships in 3-6 days

0

20

Honda 90119-V45-A00

BOLT, SPECIAL (6X18)

$0.99

$

Usually ships in 3-6 days

0

21

Honda 90121-V45-A00

BOLT, CARRIAGE (6X18)

$0.99

$

In Stock, Qty 20+

0

22

Honda 90126-V45-A00

BOLT, FLANGE (8X14)

$4.49

$

Usually ships in 3-6 days

0

23

Honda 90309-428-731

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

$4.99

$

In Stock, Qty 7

0

24

Honda 90343-ZE6-000

SEE PART DETAILS - PRI; NUT, SELF-LOCK (6MM)

$2.49

$

In Stock, Qty 20+

0

25

Honda 90752-V45-A00

PIN (10X41)

$4.99

$

Usually ships in 3-6 days

0

26

Honda 94101-10800

WASHER, PLAIN (10MM) (Honda Code 0562199).

$2.99

$

Usually ships in 3-6 days

0

27

Honda 95701-08045-08

BOLT, FLANGE (8X45) (Honda Code 2602258).

$3.49

$

Usually ships in 3-6 days

0

28

Honda 06766-V45-A00

BOLT KIT

Note: (Optional)

$8.99

$

Usually ships in 3-6 days

0

29

Honda 90119-V45-A00

BOLT, SPECIAL (6X18)

Note: (Optional)

$0.99

$

Usually ships in 3-6 days

0

30

Honda 90343-ZE6-000

SEE PART DETAILS - PRI; NUT, SELF-LOCK (6MM)

Note: (Optional)

$2.49

$

In Stock, Qty 20+

0
