HSS724 A AT/A (SABA) - Honda 24" Snow Blower, Made in USA (SN: SABA-2000001 - SABA-9999999) CONTROL Parts Diagram

24" Snow Blower, Made in USA

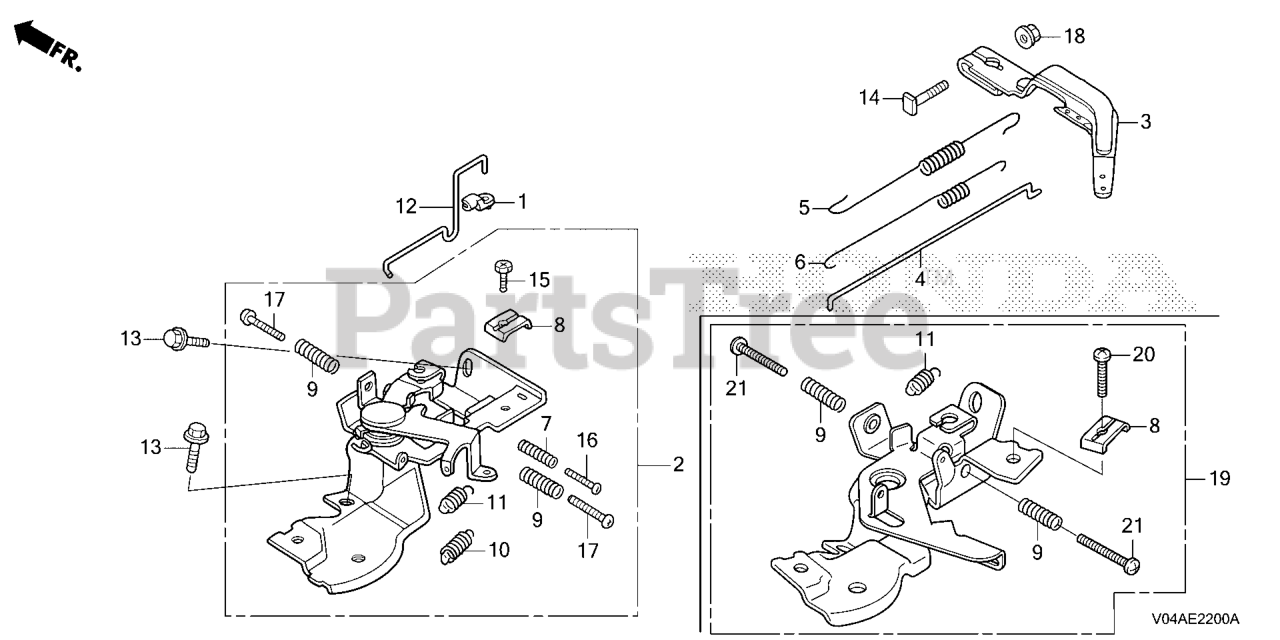

CONTROL Parts Diagram

  • Title

3

Honda 16551-ZL0-000

ARM, GOVERNOR

Note: Use up to Engine SN 3383808.

$17.99

$

In Stock, only 2 left!

0

3

Honda 16551-Z4M-000

ARM, GOVERNOR

Note: Use from Engine SN 3383809.

$16.99

$

Usually ships in 3-6 days

0

4

Honda 16555-Z4M-000

ROD, GOVERNOR
(Superseded to 16555-Z0T-N70)

Note: Use up to Engine SN 3383808.

$4.99

$

In Stock, Qty 11

0

4

Honda 16555-Z0T-N70

ROD, GOVERNOR

Note: Use from Engine SN 3383809.

$4.99

$

In Stock, Qty 11

0

5

Honda 16561-ZE1-710

SPRING, GOVERNOR

$4.99

$

Usually ships in 3-6 days

0

6

Honda 16562-ZE1-020

SEE PART DETAILS - PRI; SPRING, THROTTLE RETURN (Honda Code 1950625).

$3.99

$

In Stock, Qty 20+

0

8

Honda 16576-891-000

HOLDER, CABLE (Honda Code 0800466).

$4.99

$

Usually ships in 3-6 days

0

9

Honda 16584-883-300

SPRING, CONTROL ADJUSTING Use from Engine SN 2327377.

$4.99

$

In Stock, Qty 7

0

11

Honda 16592-ZE1-810

SPRING, CABLE RETURN (Honda Code 1445774).

$2.49

$

In Stock, only 2 left!

0

13

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

14

Honda 90015-Z5T-000

BOLT, GOVERNOR ARM

$0.99

$

Usually ships in 3-6 days

0

18

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

19

Honda 16500-Z0T-N00

CONTROL ASSY. (HS)

$13.99

$

Usually ships in 3-6 days

0

20

Honda 93500-05016-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X16) (Honda Code 0145557).

$1.49

$

In Stock, Qty 7

0

21

Honda 93500-05025-0H

SCREW, PAN (5X25) (Honda Code 0374702).

$0.99

$

In Stock, only 4 left!

0
