HSS1332 A ATD (SAFA) - Honda 32" Snow Blower, Made in Japan (SN: SAFA-1000001 - SAFA-1999999) CYLINDER HEAD Parts Diagram

32" Snow Blower, Made in Japan

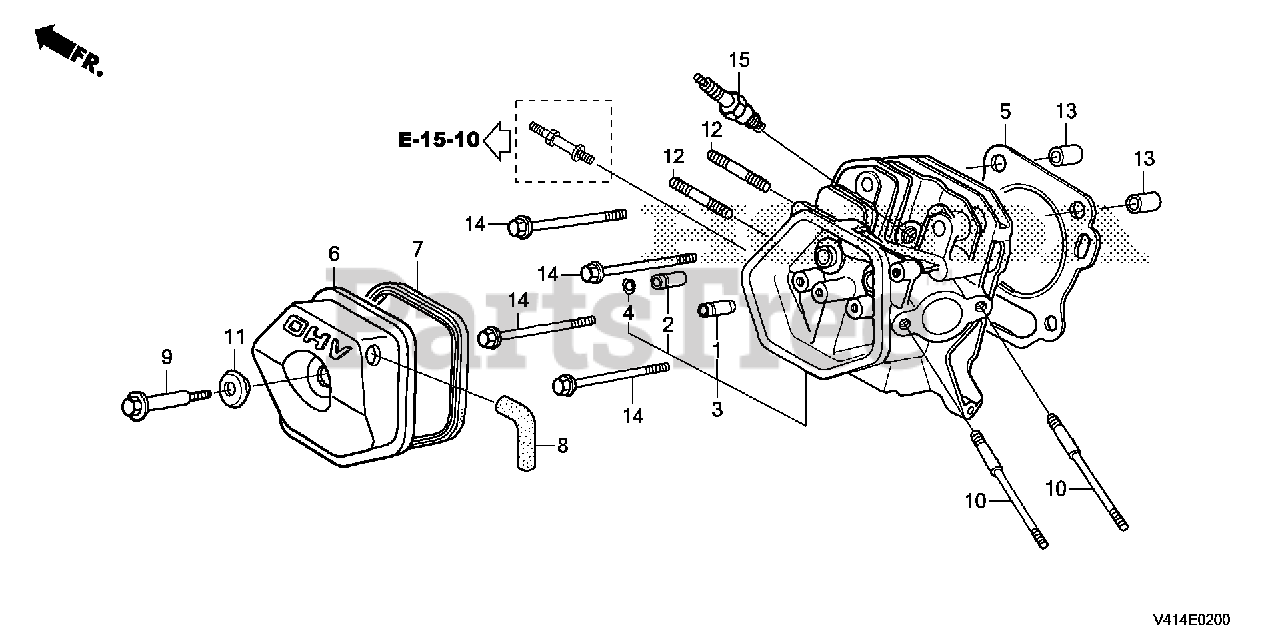

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 12204-ZE2-306

GUIDE, VALVE (OVER SIZE)

$

$

Not available

2

Honda 12205-ZE2-305

GUIDE, EX. VALVE (OVER SIZE)

$

$

Not available

3

Honda 12210-Z5K-405

CYLINDER HEAD
(Superseded to 12210-Z5K-415)

$68.99

$

In Stock, only 1 left!

0

4

Honda 12216-ZE2-300

CLIP, VALVE GUIDE

$2.49

$

In Stock, Qty 5

0

5

Honda 12251-Z5K-003

GASKET, CYLINDER HEAD

$3.99

$

In Stock, Qty 15

0

6

Honda 12310-ZE2-020

COVER, HEAD

$58.99

$

In Stock, only 1 left!

0

7

Honda 12391-ZE2-020

SEE PART DETAILS - PRI; GASKET, HEAD COVER

$11.99

$

In Stock, Qty 20+

0

8

Honda 15721-Z1D-H00

TUBE, BREATHER

$10.99

$

Usually ships in 3-6 days

0

9

Honda 90014-Z5T-000

BOLT, HEAD COVER

$1.49

$

In Stock, only 2 left!

0

10

Honda 90042-ZE2-000

BOLT, STUD (8X123)

$8.99

$

In Stock, only 2 left!

0

11

Honda 90441-ZE2-010

SEE PART DETAILS - PRI; WASHER, HEAD COVER

$6.49

$

In Stock, Qty 14

0

12

Honda 92900-08032-0E

BOLT, STUD (8X32)

$2.99

$

In Stock, Qty 20+

0

13

Honda 94301-12200

PIN, DOWEL (12X20)

$3.49

$

Usually ships in 3-6 days

0

14

Honda 95701-10080-00

BOLT, FLANGE (10X80)

$4.49

$

In Stock, only 3 left!

0

15

Honda 98079-55846

SEE PART DETAILS - PRI; SPARK PLUG (BPR5ES) (NGK)

$3.49

$

In Stock, Qty 20+

0
