HSS1332 A ATD (SAFA) - Honda 32" Snow Blower, Made in Japan (SN: SAFA-1000001 - SAFA-1999999) CONTROL PANEL (2) Parts Diagram

32" Snow Blower, Made in Japan

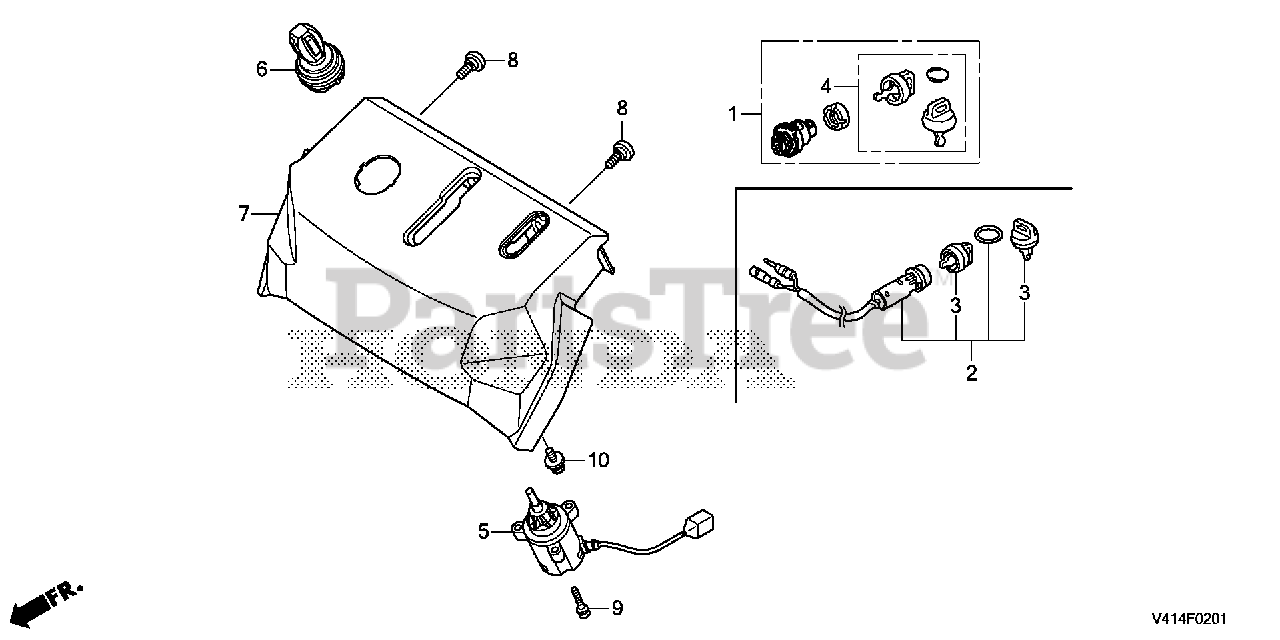

CONTROL PANEL (2) Parts Diagram

  • Title
1

Honda 35100-V41-701

SWITCH ASSY., COMBINATION

$90.99

$

Usually ships in 3-6 days

0

4

Honda 35110-V15-004

KEY ASSY., COMBINATION SWITCH

$10.99

$

In Stock, only 2 left!

0

5

Honda 35360-V45-A01

SEE PART DETAILS - SUP; SWITCH ASSY., CHUTE CONTROL
(Superseded to 35360-V45-A02)

$

$

Not available

5

Honda 35360-V45-A02

SEE PART DETAILS - PRI; SWITCH ASSY., CHUTE CONTROL
(Superseded to 35360-V45-A03)

$67.99

$

In Stock, Qty 8

0

6

Honda 35362-V45-A00

BOOT, RUBBER

$5.99

$

Usually ships in 3-6 days

0

7

Honda 54221-V45-C30ZA

PANEL, CONTROL *NH296* (ALPS GRAY)

$202.99

$

Usually ships in 3-6 days

0

8

Honda 90112-V10-R10

BOLT, CHUTE SETTING

$3.99

$

Usually ships in 3-6 days

0

9

Honda 93401-05020-08

BOLT-WASHER (5X20)

$2.49

$

In Stock, only 1 left!

0

10

Honda 93404-05012-08

BOLT-WASHER (5X12)

$2.49

$

Usually ships in 3-6 days

0
