HSS1332 A ATD (SAFA) - Honda 32" Snow Blower, Made in Japan (SN: SAFA-1000001 - SAFA-1999999) AUGER TRANSMISSION (2) Parts Diagram

32" Snow Blower, Made in Japan

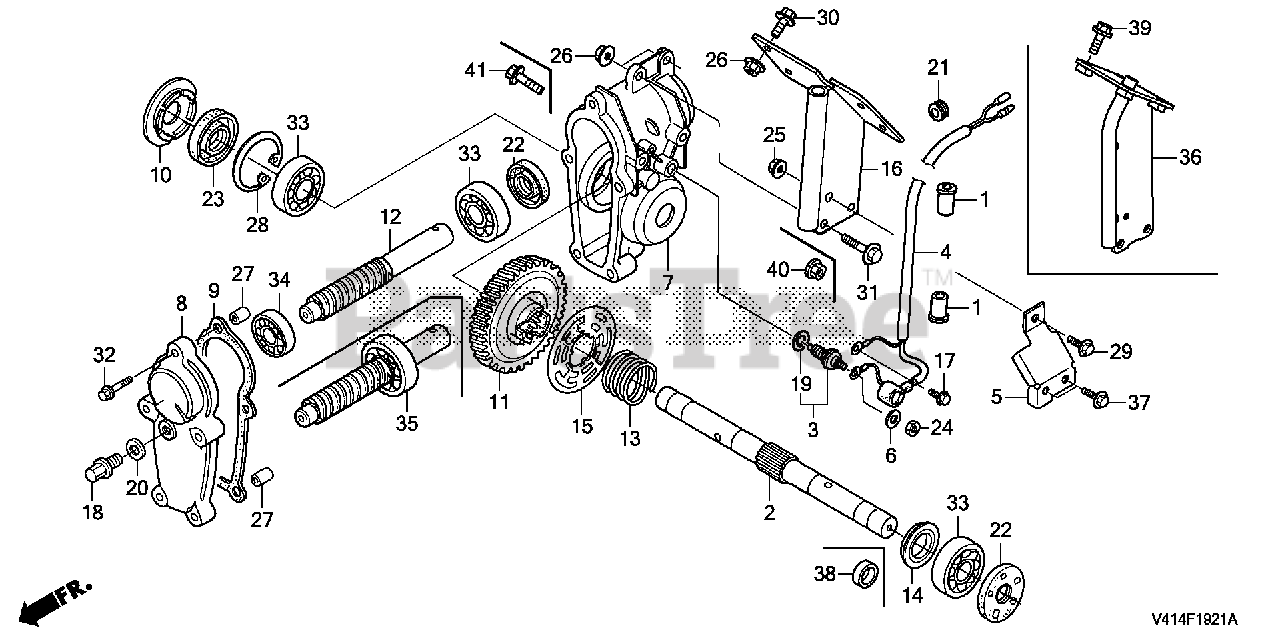

AUGER TRANSMISSION (2) Parts Diagram

  • Title

1

Honda 17506-MB1-000

CUSHION, FUEL TANK PIVOT

$6.49

$

Usually ships in 3-6 days

0

2

Honda 23377-V45-A00

SHAFT, AUGER

$40.99

$

Usually ships in 3-6 days

0

3

Honda 35600-768-P01

SWITCH ASSY., LIMIT

$43.99

$

Usually ships in 3-6 days

0

4

Honda 35604-V45-A50

WIRE, LIMIT SWITCH

$19.99

$

Usually ships in 3-6 days

0

5

Honda 35616-V45-C30

GUARD, LIMIT SWITCH

$13.99

$

Usually ships in 3-6 days

0

6

Honda 63776-768-P00

RUBBER, SEPARATOR

$4.49

$

Usually ships in 3-6 days

0

7

Honda 71210-V45-C30

CASE, AUGER TRANSMISSION

$54.99

$

Usually ships in 3-6 days

0

8

Honda 71211-V45-A00

COVER, AUGER TRANSMISSION

$151.99

$

Usually ships in 3-6 days

0

9

Honda 71212-V45-A00

GASKET, AUGER TRANSMISSION

$1.99

$

In Stock, only 2 left!

0

10

Honda 71222-743-010

CAP, AUGER CASE

$8.99

$

In Stock, Qty 10

0

11

Honda 73210-768-P00

GEAR, DRIVEN (55T)

$206.99

$

Usually ships in 3-6 days

0

13

Honda 73441-768-P00

SPRING, SLIP SENSOR

$2.99

$

Usually ships in 3-6 days

0

14

Honda 73442-768-P00

HOLDER, SHIFTER SPRING

$21.99

$

Usually ships in 3-6 days

0

15

Honda 74261-768-P00

PLATE, SLIP SENSOR

$37.99

$

Usually ships in 3-6 days

0

17

Honda 90019-883-000

BOLT, FLANGE (5X10) (CT200)

$3.49

$

Usually ships in 3-6 days

0

18

Honda 90131-ZE1-000

BOLT, DRAIN PLUG

$3.49

$

In Stock, only 1 left!

0

19

Honda 90443-KR0-000

WASHER, NEUTRAL SWITCH

$1.99

$

Usually ships in 3-6 days

0

20

Honda 90601-ZE1-000

WASHER, DRAIN PLUG (10.2MM)

$1.49

$

In Stock, Qty 20+

0

22

Honda 91201-732-003

OIL SEAL (20X32X7)

$11.99

$

In Stock, only 4 left!

0

23

Honda 91201-743-000

OIL SEAL (20X42X8)

$10.99

$

In Stock, Qty 8

0

24

Honda 94001-04080-0S

NUT, HEX. (4MM)

$1.49

$

Usually ships in 3-6 days

0

25

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, only 3 left!

0

27

Honda 94301-08140

PIN, DOWEL (8X14)

$2.99

$

In Stock, Qty 8

0

28

Honda 94520-42000

CIRCLIP (INNER) (42MM)

$2.99

$

Usually ships in 3-6 days

0

29

Honda 95701-06012-08

BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 1 left!

0

32

Honda 95801-06032-00

BOLT, FLANGE (6X32)

$1.49

$

Usually ships in 3-6 days

0

33

Honda 96100-60040-00

BEARING, RADIAL BALL (6004)

$20.99

$

In Stock, only 2 left!

0

34

Honda 96100-62020-00

BEARING, RADIAL BALL (6202)

$12.99

$

In Stock, only 4 left!

0

35

Honda 73250-V45-A00

GEAR, DRIVE (6T)

$45.99

$

Usually ships in 3-6 days

0

36

Honda 76714-V45-C30

BRACKET, AUGER HOUSING

$40.99

$

Usually ships in 3-6 days

0

37

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

38

Honda 91552-V45-C30

COLLAR, AUGER TRANSMISSION (B)

$1.99

$

Usually ships in 3-6 days

0

39

Honda 95701-08018-07

BOLT, FLANGE (8X18)

$1.49

$

Usually ships in 3-6 days

0

40

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 16

0

41

Honda 95701-08025-08

BOLT, FLANGE (8X25)

$0.99

$

In Stock, Qty 12

0
