HSS1332 A ATD/A (SAFA) - Honda 32" Snow Blower, Made in Japan (SN: SAFA-2000001 - SAFA-9999999) AUGER HOUSING Parts Diagram

32" Snow Blower, Made in Japan

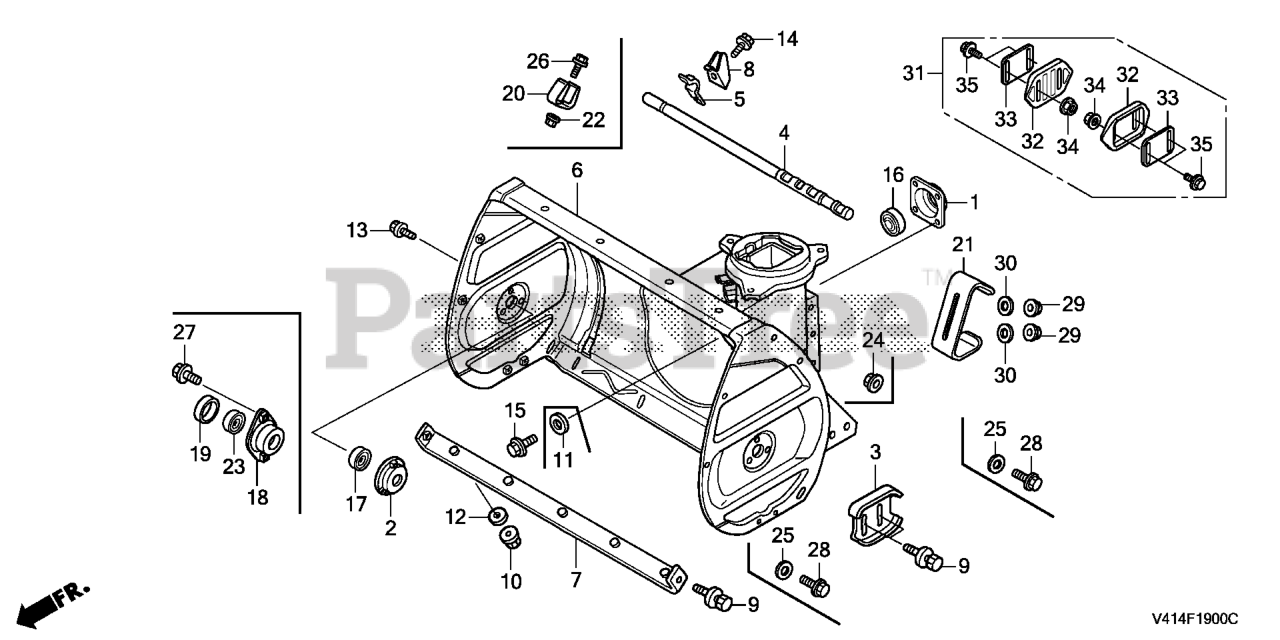

AUGER HOUSING Parts Diagram

  • Title

1

Honda 42316-V45-A00

HOLDER, BLOWER SHAFT BEARING

$24.99

$

Usually ships in 3-6 days

0

4

Honda 76211-V45-A00

BAR, SNOW DROP

$17.99

$

Usually ships in 3-6 days

0

6

Honda 76710-V45-A40ZA

HOUSING, AUGER *R280* (POWER RED)

$1348.99

$

In Stock, only 1 left!

0

7

Honda 76322-V45-A40

BLADE, SCRAPER

$114.99

$

Usually ships in 3-6 days

0

10

Honda 94050-08080

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0468447).

$1.49

$

In Stock, Qty 17

0

12

Honda 94103-08800

WASHER, PLAIN (8MM)

$1.49

$

In Stock, Qty 10

0

15

Honda 95701-08012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X12) (Honda Code 2647428).

$2.49

$

Usually ships in 3-6 days

0

16

Honda 96150-62050-10

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205UU)

$44.99

$

Usually ships in 3-6 days

0

18

Honda 72423-V45-A00

HOLDER, AUGER BEARING

$17.99

$

Usually ships in 3-6 days

0

19

Honda 72424-V45-A00

SPACER, AUGER BEARING

$9.49

$

Usually ships in 3-6 days

0

20

Honda 76212-V45-A00

BRACKET, SNOW DROP BAR

$13.99

$

Usually ships in 3-6 days

0

21

Honda 76728-V45-A00

SKID, AUGER

$17.99

$

In Stock, Qty 8

0

22

Honda 90220-MA5-700

NUT, NYLON RING (6MM)

$11.99

$

Usually ships in 3-6 days

0

23

Honda 91051-V45-A00

BEARING, RADIAL BALL (6203-19.05)

$6.49

$

Usually ships in 3-6 days

0

25

Honda 94103-08800

WASHER, PLAIN (8MM)

$1.49

$

In Stock, Qty 10

0

26

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use from Engine SN 2086984.

$2.49

$

In Stock, only 1 left!

0

27

Honda 95701-08012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X12) (Honda Code 2647428).

$2.49

$

Usually ships in 3-6 days

0

28

Honda 95701-08016-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) (Honda Code 2374767).

$2.49

$

In Stock, only 3 left!

0

29

Honda 94050-08080

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0468447).

$1.49

$

In Stock, Qty 17

0

30

Honda 94103-08800

WASHER, PLAIN (8MM)

$1.49

$

In Stock, Qty 10

0

31

Honda 06769-V45-A00

RESIN SKID SHOE(KIT)

Note: (Optional)

$56.99

$

Usually ships in 3-6 days

0

32

Honda 76728-V45-PA0

SKID, AUGER

Note: (Optional)

$25.99

$

Usually ships in 3-6 days

0

33

Honda 76729-V45-PA0

PLATE, AUGER SKID

Note: (Optional)

$

$

Currently unavailable

34

Honda 90309-MR1-770

NUT, FLANGE (8MM)

Note: (Optional)

$4.49

$

Usually ships in 3-6 days

0

35

Honda 95701-08022-07

BOLT, FLANGE (8X22)

Note: (Optional)

$2.99

$

Usually ships in 3-6 days

0
