HSS1332 A AT (SAFA) - Honda 32" Snow Blower, Made in Japan (SN: SAFA-1000001 - SAFA-1999999) WIRE HARNESS (3) Parts Diagram
32" Snow Blower, Made in Japan

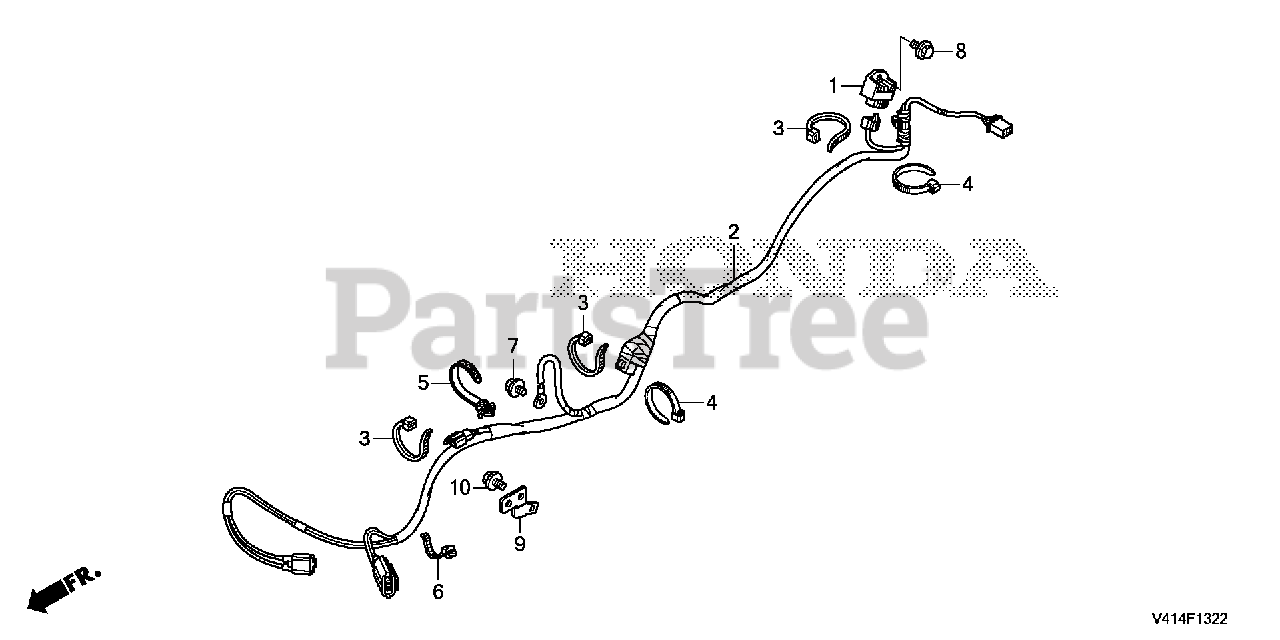

WIRE HARNESS (3) Parts Diagram
Honda 31715-V45-A01
RECTIFIER
$35.99
$
Usually ships in 3-6 days
Honda 32100-V45-A40
WIRE HARNESS ASSY., MAIN
$46.99
$
Usually ships in 3-6 days
Honda 90650-KV6-003
BAND, WIRE (95MM)
$4.99
$
Usually ships in 3-6 days
Honda 90651-KV6-003
BAND, WIRE (165MM) (BLACK)
$4.99
$
Usually ships in 3-6 days
Honda 90672-SA0-003
STRAP, CABLE (118MM) *NH1L* (Honda Code 1170653). (BLACK)
$10.99
$
Usually ships in 3-6 days
Honda 91541-S0A-003
CLIP, HARNESS BAND (145MM) (BLACK)
$5.49
$
In Stock, only 1 left!
Honda 90013-883-000
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).
Note: Use from Frame SN 1000528.
$2.49
$
In Stock, Qty 20+
Honda 95701-06010-00
SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 2410876).
Note: Use up to Frame SN 1000527.
$1.99
$
In Stock, Qty 20+
Honda 95701-06012-00
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.
$2.49
$
In Stock, Qty 20+
Honda 35806-V45-A20
BASE, CLIP
$4.99
$
Usually ships in 3-6 days
Honda 90013-883-000
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).
$2.49
$
In Stock, Qty 20+
