HSS1332 A AT/A (SAFA) - Honda 32" Snow Blower, Made in Japan (SN: SAFA-2000001 - SAFA-9999999) TENSIONER (2) Parts Diagram

32" Snow Blower, Made in Japan

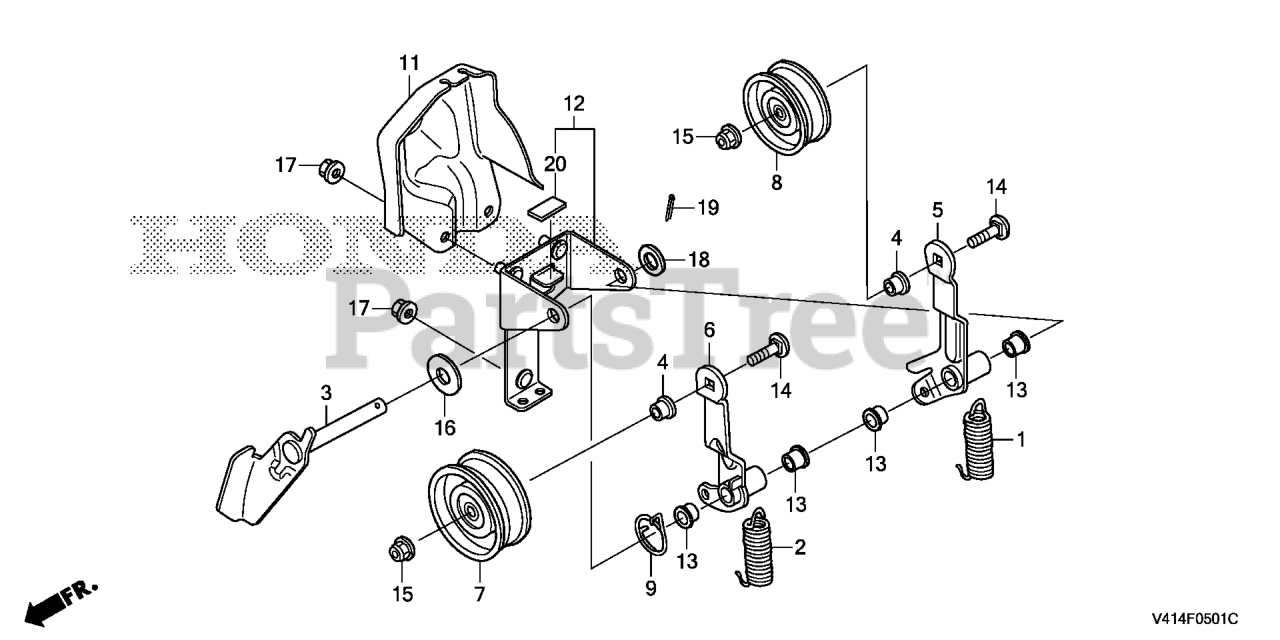

TENSIONER (2) Parts Diagram

  • Title

1

Honda 22437-V45-A00

SPRING, WHEEL TENSIONER RETURN

$7.99

$

Usually ships in 3-6 days

0

2

Honda 22438-V45-A00

SPRING, AUGER TENSIONER RETURN

$17.99

$

Usually ships in 3-6 days

0

3

Honda 22512-V45-A00

ARM, AUGER BRAKE

$29.99

$

Usually ships in 3-6 days

0

4

Honda 22514-V45-A00

COLLAR, ROLLER

$8.49

$

Usually ships in 3-6 days

0

5

Honda 22522-V45-A00

ARM, WHEEL TENSION

$5.49

$

Usually ships in 3-6 days

0

6

Honda 22526-V45-A00

ARM, AUGER TENSIONER

$82.99

$

Usually ships in 3-6 days

0

7

Honda 22530-V45-A00

ROLLER, TENSIONER

$13.99

$

Usually ships in 3-6 days

0

8

Honda 22531-V45-A00

ROLLER, TENSIONER

$13.99

$

Usually ships in 3-6 days

0

9

Honda 43417-V45-A00

SPRING, BRAKE ARM (NOT AVAILABLE)

$5.49

$

Usually ships in 3-6 days

0

11

Honda 51120-V45-A20

HOLDER, WIRE

$24.99

$

Usually ships in 3-6 days

0

12

Honda 51176-V45-A00

BRACKET, TENSION ARM

$145.99

$

Usually ships in 3-6 days

0

13

Honda 54429-762-003

BUSH, CHANGE ARM

$3.99

$

Usually ships in 3-6 days

0

14

Honda 90109-V45-A00

BOLT, CARRIAGE (8X28)

$0.99

$

Usually ships in 3-6 days

0

15

Honda 90309-428-731

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

$4.99

$

In Stock, Qty 20+

0

16

Honda 90501-736-A00

WASHER, BRAKE ARM

$3.99

$

Usually ships in 3-6 days

0

17

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

18

Honda 94102-12800

SEE PART DETAILS - PRI; WASHER, PLAIN (12MM)

$

$

Not available

19

Honda 94201-30180

PIN, COTTER (3.0X18)

$1.49

$

In Stock, Qty 20+

0

20

Honda 50319-V45-A00

RUBBER, STOPPER

$3.99

$

Usually ships in 3-6 days

0
