HSS1332 A AT/A (SAFA) - Honda 32" Snow Blower, Made in Japan (SN: SAFA-2000001 - SAFA-9999999) CHUTER MOTOR (2) Parts Diagram

32" Snow Blower, Made in Japan

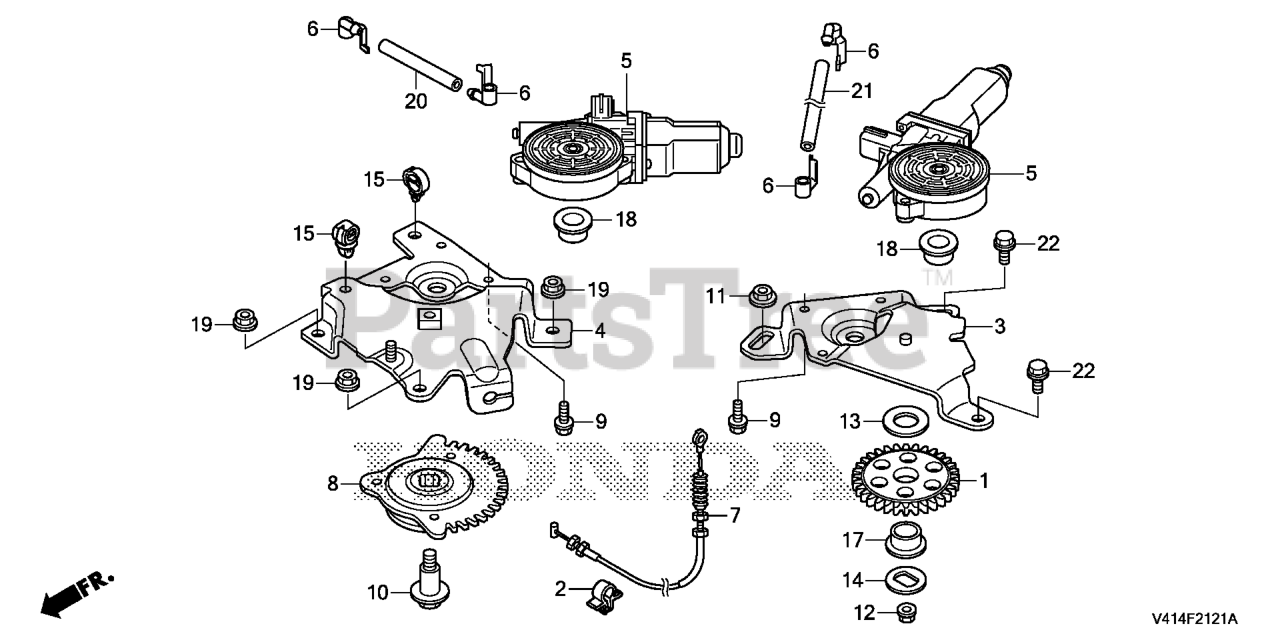

CHUTER MOTOR (2) Parts Diagram

  • Title
1

Honda 23408-V45-A00

GEAR, IDLE (32T)

$8.49

$

Usually ships in 3-6 days

0

2

Honda 30701-887-791

CLIP, IGNITION WIRE

$2.49

$

In Stock, only 2 left!

0

3

Honda 31351-V45-A00

BRACKET, CHUTE MOTOR

$37.99

$

Usually ships in 3-6 days

0

4

Honda 31352-V45-A00

BRACKET A, CHUTE MOTOR

$17.99

$

Usually ships in 3-6 days

0

5

Honda 36110-V45-A03

MOTOR ASSY., CHUTE

$51.99

$

In Stock, only 1 left!

0

6

Honda 38229-V45-A00

CAP, WATER PROTECTION

$1.49

$

In Stock, only 4 left!

0

7

Honda 54580-V45-A01

CABLE, CHUTE GUIDE

$23.99

$

Usually ships in 3-6 days

0

8

Honda 54584-V45-A00

GEAR, CHUTE GUIDE MOTOR (46T)

$12.99

$

In Stock, only 1 left!

0

9

Honda 90105-V21-000

SCREW, TAPPING (5X14)

$1.99

$

Usually ships in 3-6 days

0

10

Honda 90113-V45-A00

BOLT, SHOULDER (M8)

$1.99

$

Usually ships in 3-6 days

0

11

Honda 90201-ZM0-000

NUT, FLANGE (6MM) (Honda Code 6478812).

$2.99

$

In Stock, Qty 20+

0

12

Honda 90343-ZE6-000

SEE PART DETAILS - PRI; NUT, SELF-LOCK (6MM)

$2.49

$

In Stock, Qty 20+

0

13

Honda 90506-V45-A00

WASHER (12.5X28X1)

$2.99

$

In Stock, only 1 left!

0

14

Honda 90507-V45-A00

WASHER, SPECIAL

$0.99

$

In Stock, only 1 left!

0

15

Honda 90683-SA0-003

CLIP, WIRE HARNESS (25MM) (Honda Code 1226265).

$12.99

$

Usually ships in 3-6 days

0

17

Honda 91554-V45-A01

BUSH (12X6)

$2.49

$

In Stock, only 1 left!

0

18

Honda 91555-V45-A01

BUSH (10X5)

$2.49

$

In Stock, only 2 left!

0

19

Honda 94050-06080

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0612689).

$0.99

$

In Stock, Qty 5

0

20

Honda 95005-45001-30M

BULK HOSE, VACUUM (4.5X1000) (4.5X290)

$12.99

$

Usually ships in 3-6 days

0

21

Honda 95005-45001-30M

BULK HOSE, VACUUM (4.5X1000) (4.5X290)

$12.99

$

Usually ships in 3-6 days

0

22

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$2.49

$

In Stock, Qty 19

0
