HSS1332 A AT/A (SAFA) - Honda 32" Snow Blower, Made in Japan (SN: SAFA-2000001 - SAFA-9999999) AUGER TRANSMISSION (1) Parts Diagram

32" Snow Blower, Made in Japan

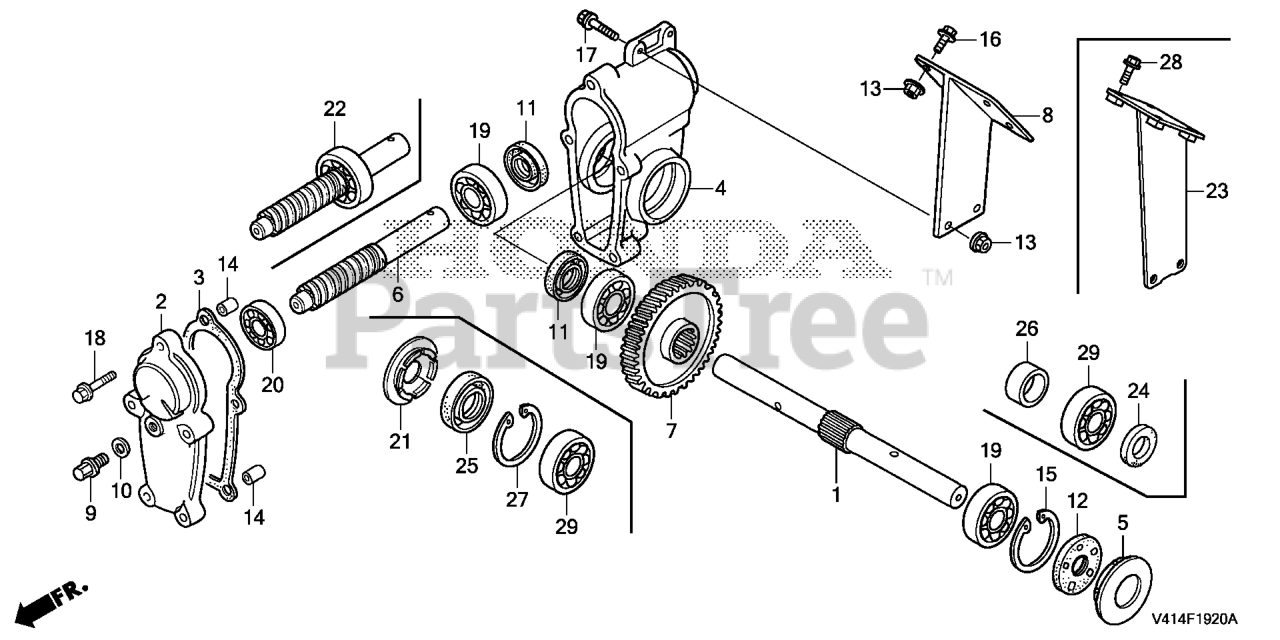

AUGER TRANSMISSION (1) Parts Diagram

  • Title

1

Honda 23377-V45-A00

SHAFT, AUGER

$42.99

$

Usually ships in 3-6 days

0

2

Honda 71211-V45-A00

COVER, AUGER TRANSMISSION

$157.99

$

Usually ships in 3-6 days

0

3

Honda 71212-V45-A00

GASKET, AUGER TRANSMISSION

$1.99

$

In Stock, only 2 left!

0

4

Honda 71221-V45-A00

CASE, AUGER TRANSMISSION

$163.99

$

Usually ships in 3-6 days

0

7

Honda 73551-767-000

GEAR, DRIVEN (55T)

$127.99

$

Usually ships in 3-6 days

0

9

Honda 90131-ZE1-000

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG

$3.49

$

In Stock, only 2 left!

0

10

Honda 90601-ZE1-000

WASHER, DRAIN PLUG (10.2MM) (Honda Code 1436583).

$1.49

$

In Stock, Qty 20+

0

11

Honda 91201-732-003

OIL SEAL (20X32X7)

$12.99

$

In Stock, only 2 left!

0

13

Honda 94050-08080

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0468447).

$1.49

$

In Stock, Qty 15

0

14

Honda 94301-08140

SEE PART DETAILS - PRI; PIN A, DOWEL (8X14) (Honda Code 0069310).

$2.99

$

In Stock, Qty 8

0

17

Honda 95701-08025-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X25)

$0.99

$

In Stock, Qty 12

0

18

Honda 95801-06032-00

BOLT, FLANGE (6X32)

$1.49

$

Usually ships in 3-6 days

0

20

Honda 96100-62020-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6202) (Honda Code 0708941).

$12.99

$

In Stock, only 3 left!

0

21

Honda 71222-743-010

CAP, AUGER CASE

$9.49

$

In Stock, Qty 8

0

22

Honda 73250-V45-A00

GEAR, DRIVE (6T)

$46.99

$

Usually ships in 3-6 days

0

23

Honda 76714-V45-A00

BRACKET, AUGER HOUSING

$30.99

$

Usually ships in 3-6 days

0

24

Honda 91201-732-003

OIL SEAL (20X32X7)

$12.99

$

In Stock, only 2 left!

0

25

Honda 91201-743-000

OIL SEAL (20X42X8)

$10.99

$

In Stock, Qty 6

0

26

Honda 91551-V45-A00

COLLAR, AUGER TRANSMISSION (A)

$1.49

$

Usually ships in 3-6 days

0

27

Honda 94520-42000

CIRCLIP (INNER) (42MM)

$2.99

$

Usually ships in 3-6 days

0

28

Honda 95701-08018-07

SEE PART DETAILS - SUP; BOLT, FLANGE (8X18)

$1.49

$

Usually ships in 3-6 days

0

29

Honda 96100-60040-00

BEARING, RADIAL BALL (6004)

$21.99

$

In Stock, only 2 left!

0
