HSM1336 IK2 ATDR (SBCJ) - Honda 36" Snow Blower, Made in Japan (SN: SBCJ-5500001 - SBCJ-5509999) PISTON Parts Diagram

36" Snow Blower, Made in Japan

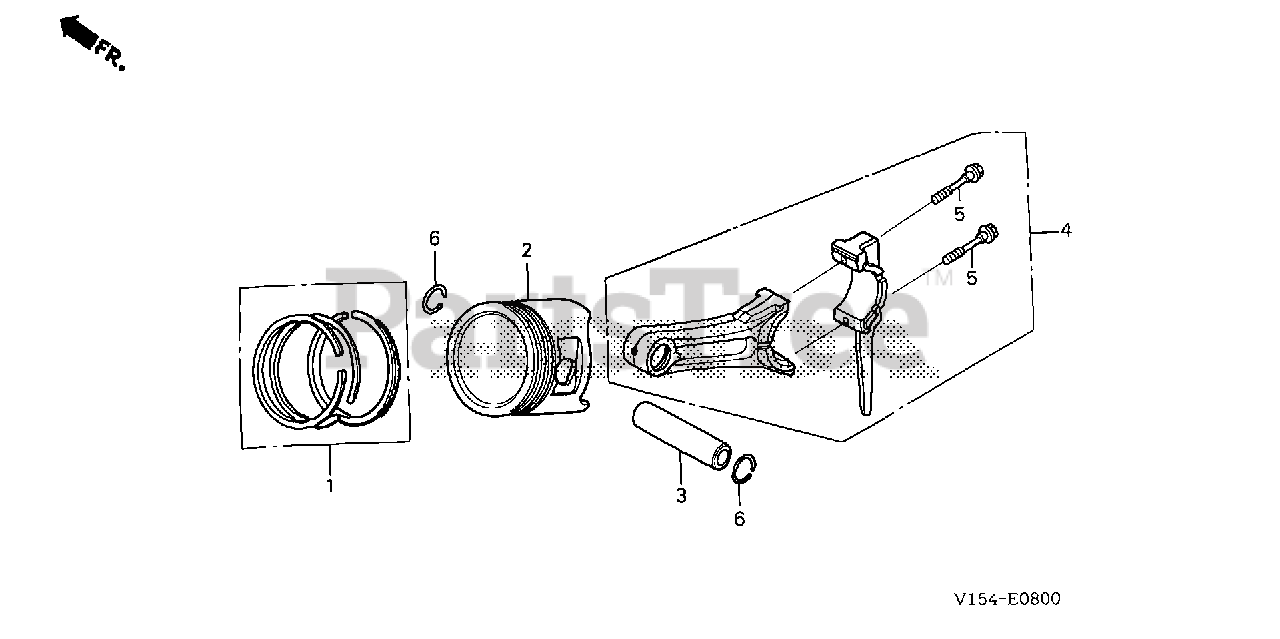

PISTON Parts Diagram

  • Title

1

Honda 13010-Z5R-004

SEE PART DETAILS - PRI; RING SET, PISTON (STD) (TEIKOKU)

$59.99

$

In Stock, Qty 10

0

1

Honda 13011-Z5R-004

SEE PART DETAILS - PRI; RING SET, PISTON (0.25) (TEIKOKU)

Note: (Optional).

$

$

Not available

1

Honda 13012-Z5R-004

SEE PART DETAILS - PRI; RING SET, PISTON (0.50) (TEIKOKU)

Note: (Optional).

$

$

Not available

1

Honda 13013-Z5R-004

SEE PART DETAILS - PRI; RING SET, PISTON (0.75) (TEIKOKU)

Note: (Optional).

$

$

Not available

2

Honda 13101-Z1C-900

SEE PART DETAILS - PRI; PISTON (STD)

$22.99

$

In Stock, only 1 left!

0

2

Honda 13102-Z5T-800

PISTON (0.25)

Note: (Optional).

$

$

Not available

2

Honda 13103-Z5T-800

PISTON (0.50)

Note: (Optional).

$

$

Not available

2

Honda 13104-Z5T-800

PISTON (0.75)

Note: (Optional).

$

$

Not available

3

Honda 13111-Z5T-000

PIN, PISTON

$7.99

$

In Stock, Qty 6

0

4

Honda 13200-Z1C-305

ROD ASSY., CONNECTING (0.25 LOWER SIZE)

Note: (Optional).

$

$

Not available

4

Honda 13200-Z1C-900

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING (STD)

$34.99

$

In Stock, only 2 left!

0

5

Honda 90001-ZE8-000

BOLT, CONNECTING ROD (Honda Code 2160489).

$4.99

$

Usually ships in 3-6 days

0

6

Honda 90601-ZE3-000

CLIP, PISTON PIN (20MM) (Honda Code 2108579).

$2.49

$

In Stock, only 2 left!

0
