HSM1336 IK2 ATDR/A (SBCJ) - Honda 36" Snow Blower, Made in Japan (SN: SBCJ-5510001 - SBCJ-9999999) MUFFLER (2) Parts Diagram

36" Snow Blower, Made in Japan

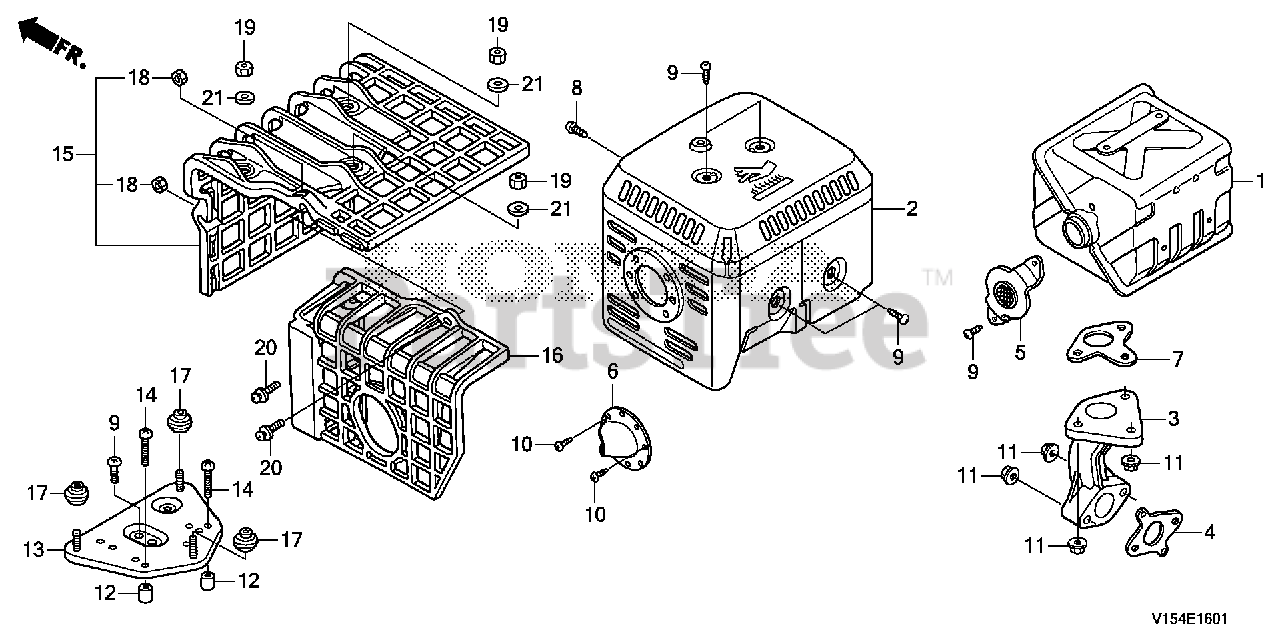

MUFFLER (2) Parts Diagram

  • Title

1

Honda 18310-Z5T-010

SEE PART DETAILS - PRI; MUFFLER

$36.99

$

In Stock, only 2 left!

0

2

Honda 18320-Z5T-000

PROTECTOR, MUFFLER

$20.99

$

Usually ships in 3-6 days

0

3

Honda 18331-Z5T-000

PIPE, EX.

$27.99

$

In Stock, only 1 left!

0

4

Honda 18333-Z1C-901

SEE PART DETAILS - PRI; GASKET, EX. PIPE

$2.99

$

In Stock, only 3 left!

0

5

Honda 18336-ZE3-000

FLANGE, BAFFLE (Honda Code 2309581).

$13.99

$

Usually ships in 3-6 days

0

7

Honda 18381-ZE2-801

SEE PART DETAILS - PRI; GASKET, MUFFLER (NIPPON LEAKLESS)

$14.99

$

In Stock, only 2 left!

0

7

Honda 18381-Z1C-801

GASKET, MUFFLER (THAI LEAKLESS)

$15.99

$

Usually ships in 3-6 days

0

8

Honda 90006-ZE2-000

SCREW, TAPPING (6X10)

$1.99

$

In Stock, Qty 5

0

9

Honda 90050-ZE1-000

SCREW, TAPPING (5X8) (Honda Code 1431105).

$2.49

$

In Stock, Qty 20+

0

11

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

12

Honda 17233-896-701

COLLAR, AIR CLEANER HOUSING (Honda Code 2577419).

$4.99

$

Usually ships in 3-6 days

0

13

Honda 18436-Z1D-H70

BASE COMP

$5.99

$

Usually ships in 3-6 days

0

14

Honda 90050-ZH8-W40

SCREW, TAPPING (5X25) (Honda Code 4787206).

$2.99

$

Usually ships in 3-6 days

0

15

Honda 18433-ZE3-H30

CVR, MUFF PROTECTOR

$109.99

$

Usually ships in 3-6 days

0

16

Honda 18434-ZE3-H31

COVER, RR.

$91.99

$

Usually ships in 3-6 days

0

17

Honda 18466-ZH8-W40

SPACER, MUFFLER COVER (Honda Code 4787198).

$8.49

$

Usually ships in 3-6 days

0

18

Honda 90301-782-000

NUT, U (6MM)

$2.49

$

Usually ships in 3-6 days

0

19

Honda 90302-KF9-900

NUT, HEX. (5MM) (Honda Code 4787214).

$4.49

$

Usually ships in 3-6 days

0

20

Honda 93891-06020-07

SCREW-WASHER (6X20) (Honda Code 1188614).

$1.99

$

In Stock, only 4 left!

0

21

Honda 94103-05700

WASHER, PLAIN (5MM) (Honda Code 0692491).

$1.49

$

In Stock, only 4 left!

0
