HSM1336 IK2 ATDR/A (SBCJ) - Honda 36" Snow Blower, Made in Japan (SN: SBCJ-5510001 - SBCJ-9999999) CLUTCH@DRIVEN PULLEY (2) Parts Diagram

36" Snow Blower, Made in Japan

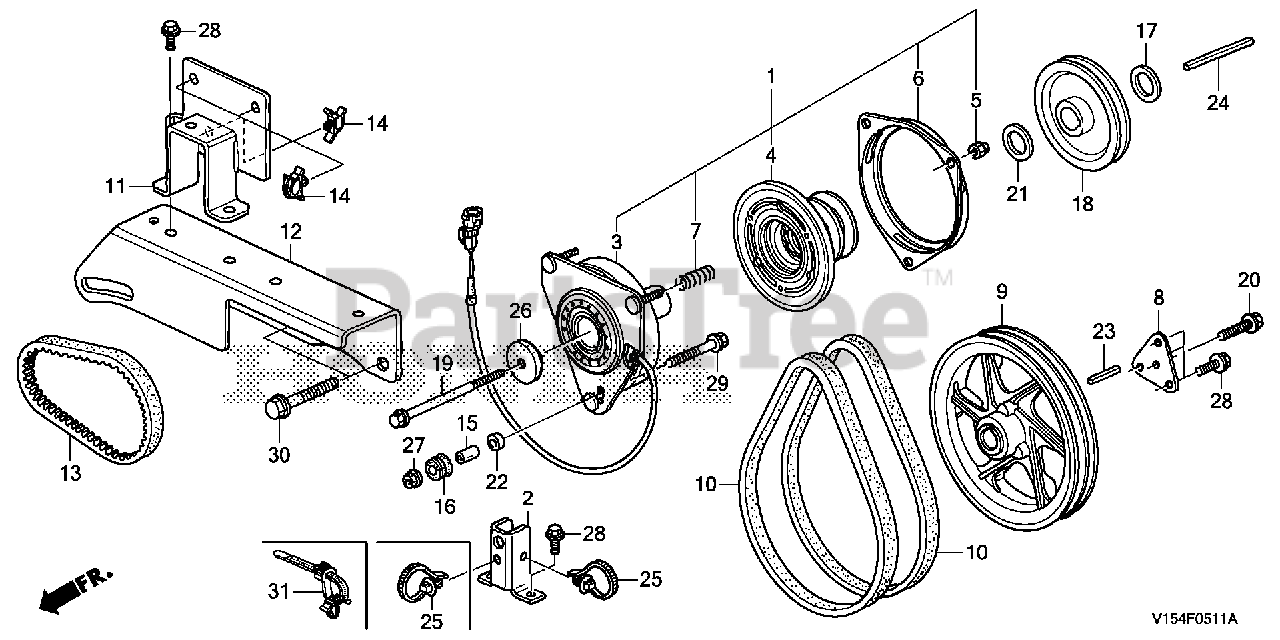

CLUTCH@DRIVEN PULLEY (2) Parts Diagram

  • Title

1

Honda 22000-V27-731

CLUTCH-BRAKE ASSY.

$686.99

$

Usually ships in 3-6 days

0

5

Honda 22277-V27-731

NUT, HEX. (3/8-24UNF)

$3.49

$

Usually ships in 3-6 days

0

6

Honda 22278-V27-003

COVER, BRAKE

$113.99

$

Usually ships in 3-6 days

0

7

Honda 22279-V27-003

SPRING, RETURN

$24.99

$

Usually ships in 3-6 days

0

8

Honda 22416-752-630

PATCH, PULLEY

$7.99

$

Usually ships in 3-6 days

0

9

Honda 22424-V15-010

PULLEY, AUGER DRIVEN

$216.99

$

Usually ships in 3-6 days

0

10

Honda 22431-V15-003

V-BELT (LB-36)

$23.99

$

Usually ships in 3-6 days

0

11

Honda 31636-V15-E00

BRACKET, ALTERNATOR

$48.99

$

Usually ships in 3-6 days

0

12

Honda 31637-V15-F00

STAY, ALTERNATOR

$92.99

$

Usually ships in 3-6 days

0

13

Honda 31638-V15-003

BELT, ALTERNATOR

$32.99

$

Usually ships in 3-6 days

0

14

Honda 32171-GJ1-003

CLIP, WIRE HARNESS

$5.49

$

Usually ships in 3-6 days

0

15

Honda 51486-KV3-000

COLLAR, STEP (LOWER)

$3.99

$

Usually ships in 3-6 days

0

16

Honda 51489-086-000

BUSH, RUBBER (NOT AVAILABLE)

$

$

Not available

17

Honda 75146-750-000

COLLAR, DISTANCE (25MM)

$8.49

$

In Stock, only 1 left!

0

18

Honda 75170-V15-F00

PULLEY, ENGINE

$130.99

$

Usually ships in 3-6 days

0

19

Honda 90016-ML0-000

BOLT, UBS (8X95) (NOT AVAILABLE)

$

$

Not available

20

Honda 90103-MW3-670

BOLT, FLANGE (8X20)

$5.49

$

Usually ships in 3-6 days

0

21

Honda 90401-V15-000

WASHER (35MM)

$10.99

$

Usually ships in 3-6 days

0

22

Honda 90501-GK8-870

COLLAR, MUFFLER MOUNTING

$4.99

$

Usually ships in 3-6 days

0

23

Honda 90751-792-000

KEY (7X7X42)

$6.99

$

Usually ships in 3-6 days

0

24

Honda 90765-V15-000

KEY (7X7X103)

$16.99

$

Usually ships in 3-6 days

0

26

Honda 91559-V15-010

COLLAR, CLUTCH

$10.99

$

Usually ships in 3-6 days

0

27

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

28

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) Use from Engine SN 1000016.

$2.49

$

In Stock, Qty 20+

0

29

Honda 95701-08038-00

BOLT, FLANGE (8X38)

$1.99

$

Usually ships in 3-6 days

0

30

Honda 95701-10016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (10X16)

$1.99

$

Usually ships in 3-6 days

0

31

Honda 32161-V15-003

BAND, WIRE HARNESS

$4.99

$

Usually ships in 3-6 days

0
