HSM1336 IK2 ATDR/A (SBCJ) - Honda 36" Snow Blower, Made in Japan (SN: SBCJ-5510001 - SBCJ-9999999) CHUTER MOTOR Parts Diagram

36" Snow Blower, Made in Japan

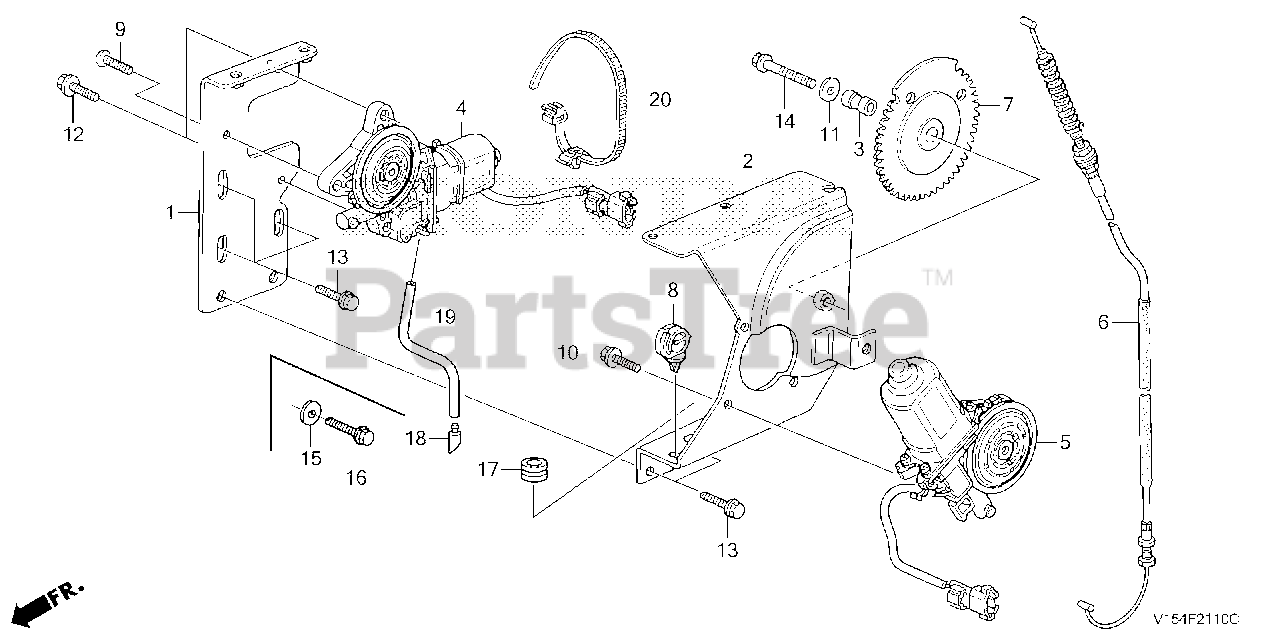

CHUTER MOTOR Parts Diagram

  • Title

1

Honda 31350-V15-010

BRACKET, CHUTE MOTOR

$34.99

$

Usually ships in 3-6 days

0

2

Honda 31361-V15-020

BRACKET, CHUTE GUIDE MOTOR

$47.99

$

Usually ships in 3-6 days

0

3

Honda 31362-797-000

COLLAR, CLUTCH GUIDE GEAR

$5.49

$

Usually ships in 3-6 days

0

4

Honda 36110-V15-013

MOTOR ASSY., CHUTE

$205.99

$

Usually ships in 3-6 days

0

5

Honda 36115-V15-003

MOTOR ASSY., CHUTE GUIDE

$265.99

$

Usually ships in 3-6 days

0

6

Honda 54580-V15-000

CABLE, CHUTE GUIDE

$32.99

$

Usually ships in 3-6 days

0

7

Honda 54584-766-000

GEAR, CHUTE GUIDE MOTOR

$31.99

$

Usually ships in 3-6 days

0

8

Honda 90683-SA0-003

CLIP, WIRE HARNESS (25MM) (Honda Code 1226265).

$12.99

$

Usually ships in 3-6 days

0

9

Honda 93500-06012-0A

SEE PART DETAILS - PRI; SCREW, PAN (6X12)

$1.49

$

Usually ships in 3-6 days

0

10

Honda 90105-V21-000

SCREW, TAPPING (5X14)

$1.99

$

Usually ships in 3-6 days

0

11

Honda 94103-06000

WASHER, PLAIN (6MM) (Honda Code 0450122).

$1.49

$

In Stock, Qty 20+

0

12

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$2.49

$

In Stock, Qty 19

0

13

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$2.49

$

In Stock, Qty 19

0

14

Honda 95701-06030-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X30) (Honda Code 2401222).

$2.49

$

In Stock, only 4 left!

0

15

Honda 94103-06000

WASHER, PLAIN (6MM) (Honda Code 0450122).

$1.49

$

In Stock, Qty 20+

0

16

Honda 95701-06016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) Use from Engine SN 2056820.

$2.49

$

Usually ships in 3-6 days

0

17

Honda 33606-GBZ-000

RUBBER, TURN SIGNAL BOLT MOUNTING (NOT AVAILABLE)

$

$

Not available

18

Honda 38426-Z1E-H00

BELL, MOUTH

$8.49

$

Usually ships in 3-6 days

0

19

Honda 95005-35001-30M

BULK HOSE, VACUUM (3.5X1000) (3.5X75)

$12.99

$

Usually ships in 3-6 days

0

20

Honda 32161-V15-003

BAND, WIRE HARNESS

$4.99

$

Usually ships in 3-6 days

0
