HSM1336 IK2 ATDR/A (SBCJ) - Honda 36" Snow Blower, Made in Japan (SN: SBCJ-5510001 - SBCJ-9999999) AUGER TRANSMISSION Parts Diagram

36" Snow Blower, Made in Japan

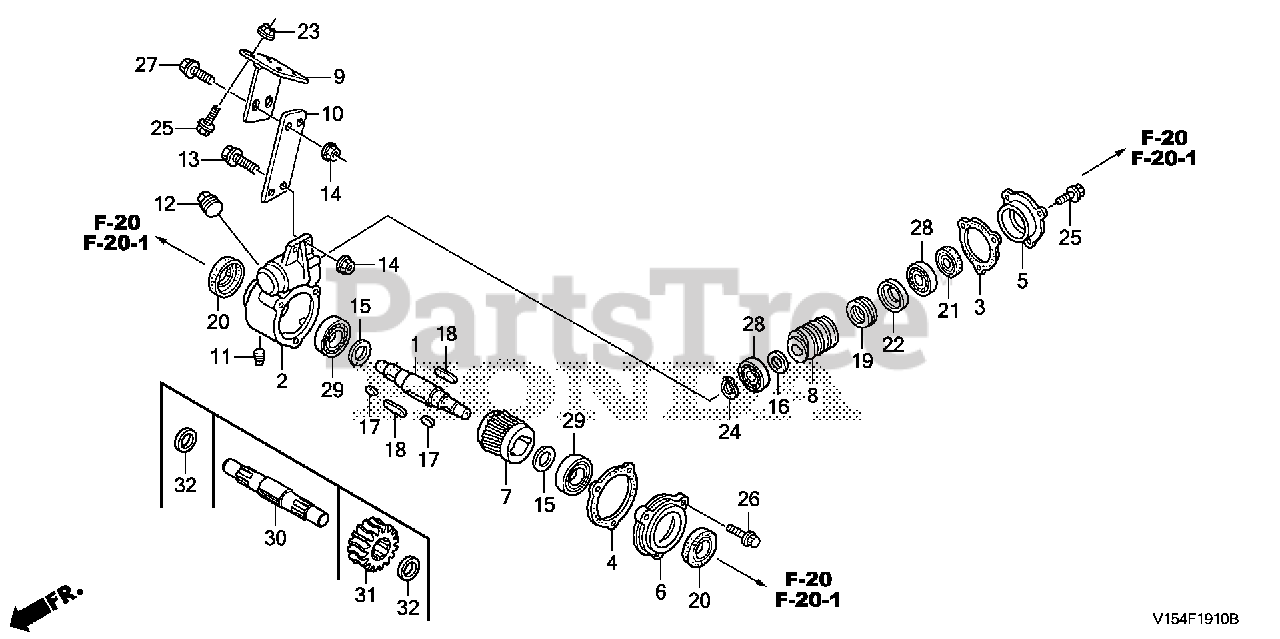

AUGER TRANSMISSION Parts Diagram

  • Title

2

Honda 71211-V15-F00

CASE, AUGER TRANSMISSION

$184.99

$

Usually ships in 3-6 days

0

3

Honda 71212-V15-000

GASKET A, AUGER TRANSMISSION

$2.99

$

In Stock, Qty 5

0

4

Honda 71216-V15-000

GASKET B, AUGER TRANSMISSION

$3.99

$

In Stock, only 2 left!

0

5

Honda 71231-V15-000

COVER A, AUGER TRANSMISSION

$30.99

$

Usually ships in 3-6 days

0

6

Honda 71236-V15-000

COVER B, AUGER TRANSMISSION

$35.99

$

Usually ships in 3-6 days

0

8

Honda 73251-V15-F00

GEAR, DRIVE

$68.99

$

Usually ships in 3-6 days

0

9

Honda 76715-V15-000

BRACKET A, AUGER HOUSING

$31.99

$

Usually ships in 3-6 days

0

10

Honda 76718-V15-000

BRACKET B, AUGER HOUSING

$10.99

$

Usually ships in 3-6 days

0

11

Honda 90103-V15-000

BOLT, DRAIN PLUG (PT 1/8)

$2.49

$

Usually ships in 3-6 days

0

12

Honda 90104-V15-000

BOLT, DRAIN PLUG (PT 3/4)

$8.49

$

Usually ships in 3-6 days

0

13

Honda 90173-S3Y-000

BOLT, RR. DAMPER (UPPER)

$5.99

$

Usually ships in 3-6 days

0

14

Honda 90212-671-005

NUT, SELF-LOCK (10MM)

$1.49

$

Usually ships in 3-6 days

0

16

Honda 90544-759-610

WASHER (20X29X2)

$6.99

$

Usually ships in 3-6 days

0

19

Honda 91051-797-003

BEARING, THRUST (51204)

$27.99

$

Usually ships in 3-6 days

0

20

Honda 91201-889-003

SEE PART DETAILS - PRI; OIL SEAL (30X45X8)

$11.99

$

Usually ships in 3-6 days

0

21

Honda 91201-ZG9-U71

SEE PART DETAILS - PRI; OIL SEAL (25X38X7) (Honda Code 5230073).

$4.99

$

In Stock, Qty 7

0

21

Honda 91252-888-003

SEE PART DETAILS - SUP; OIL SEAL (25X38X7) (ARAI) (Honda Code 0671628).
(Superseded to 91201-ZG9-U71)

$4.99

$

In Stock, Qty 7

0

22

Honda 91558-V27-000

COLLAR, THRUST

$37.99

$

Usually ships in 3-6 days

0

23

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

24

Honda 94510-20000

CIRCLIP (OUTER) (20MM)

$1.99

$

Usually ships in 3-6 days

0

25

Honda 95701-08020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X20) Use up to Engine SN 1609606.

$2.49

$

In Stock, only 1 left!

0

26

Honda 95701-08025-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X25) (Honda Code 2545325).

$2.49

$

In Stock, only 4 left!

0

27

Honda 95701-10022-00

BOLT, FLANGE (10X22)

$2.49

$

Usually ships in 3-6 days

0

28

Honda 96100-60040-00

BEARING, RADIAL BALL (6004)

$20.99

$

In Stock, only 2 left!

0

29

Honda 96100-60060-00

BEARING, RADIAL BALL (6006)

$17.99

$

Usually ships in 3-6 days

0

30

Honda 23377-V15-N00

SHAFT, AUGER

$178.99

$

Usually ships in 3-6 days

0

31

Honda 73211-V15-N00

GEAR, DRIVEN (20T)

$149.99

$

Usually ships in 3-6 days

0

32

Honda 91551-V15-N00

COLLAR (30X44X14)

$5.49

$

Usually ships in 3-6 days

0
