HSM1336 IK2 ATDR/A (SBCJ) - Honda 36" Snow Blower, Made in Japan (SN: SBCJ-5510001 - SBCJ-9999999) AUGER@BLOWER (2) Parts Diagram

36" Snow Blower, Made in Japan

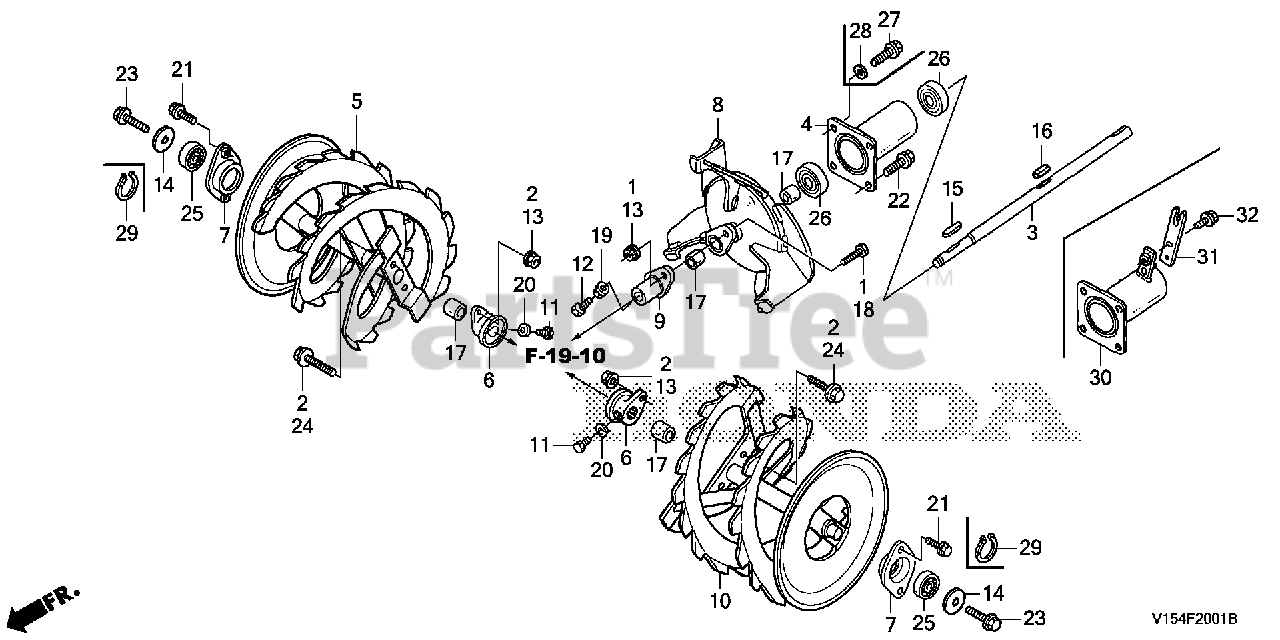

AUGER@BLOWER (2) Parts Diagram

  • Title

1

Honda 06921-V15-F00

BOLT SET, BLOWER

Note: (Optional)

$6.49

$

In Stock, only 1 left!

0

2

Honda 06957-V15-F00

BOLT SET, AUGER

Note: (Optional)

$12.99

$

In Stock, Qty 20+

0

3

Honda 23376-V15-030

SHAFT, AUGER DRIVE

$337.99

$

Usually ships in 3-6 days

0

5

Honda 72410-V15-305

AUGER, R. (COO)
(Superseded to 72410-V15-N11)

$603.99

$

Usually ships in 3-6 days

0

6

Honda 72419-V15-N00

FLANGE, AUGER SHEAR

$44.99

$

Usually ships in 3-6 days

0

7

Honda 72423-V15-000

HOLDER, AUGER BEARING

$18.99

$

Usually ships in 3-6 days

0

8

Honda 72440-V27-003

BLOWER

$330.99

$

Usually ships in 3-6 days

0

9

Honda 72446-V15-010

PIPE, JOINT

$146.99

$

Usually ships in 3-6 days

0

10

Honda 72450-V15-N11

AUGER, L.

$603.99

$

Usually ships in 3-6 days

0

11

Honda 90105-792-000

BOLT, SPECIAL (10X16)

$13.99

$

Usually ships in 3-6 days

0

12

Honda 90106-V15-003

BOLT, SPECIAL (8X25)

$7.99

$

Usually ships in 3-6 days

0

13

Honda 90115-659-003

NUT, SELF-LOCK (8MM) (Honda Code 0599480).

$0.99

$

In Stock, Qty 20+

0

15

Honda 90758-V15-000

KEY (6X6X40)

$7.99

$

Usually ships in 3-6 days

0

16

Honda 90762-V15-003

KEY (7X7X33)

$5.49

$

Usually ships in 3-6 days

0

17

Honda 91551-V15-003

BUSH (25X28X25)

$14.99

$

Usually ships in 3-6 days

0

18

Honda 92101-08025-0A

SEE PART DETAILS - PRI; BOLT, HEX. (8X25) (Honda Code 2651537).

$2.49

$

In Stock, Qty 6

0

19

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

20

Honda 94111-10800

SEE PART DETAILS - PRI; WASHER, SPRING (10MM)

$1.99

$

In Stock, only 1 left!

0

21

Honda 95701-08012-07

BOLT, FLANGE (8X12)

$2.49

$

Usually ships in 3-6 days

0

24

Honda 95701-08025-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X25) (Honda Code 2545325).

$2.49

$

In Stock, only 3 left!

0

25

Honda 96150-60040-10

BEARING, RADIAL BALL (6004UU)

$24.99

$

In Stock, Qty 9

0

26

Honda 96150-62050-10

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205UU)

$44.99

$

Usually ships in 3-6 days

0

27

Honda 90103-MW3-670

BOLT, FLANGE (8X20)

$5.49

$

Usually ships in 3-6 days

0

28

Honda 94102-08000

WASHER, PLAIN (8MM) (Honda Code 0199596).

$1.49

$

Usually ships in 3-6 days

0

29

Honda 94510-20000

CIRCLIP (OUTER) (20MM)

$1.99

$

Usually ships in 3-6 days

0

30

Honda 50120-V27-010

HOLDER, BEARING

$101.99

$

Usually ships in 3-6 days

0

31

Honda 50122-V27-000

ARM, ROLLING SENSOR

$15.99

$

Usually ships in 3-6 days

0

32

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$2.49

$

In Stock, Qty 20+

0
