HSK840-8216A - Tecumseh Engine Engine Parts List Parts Diagram

Engine

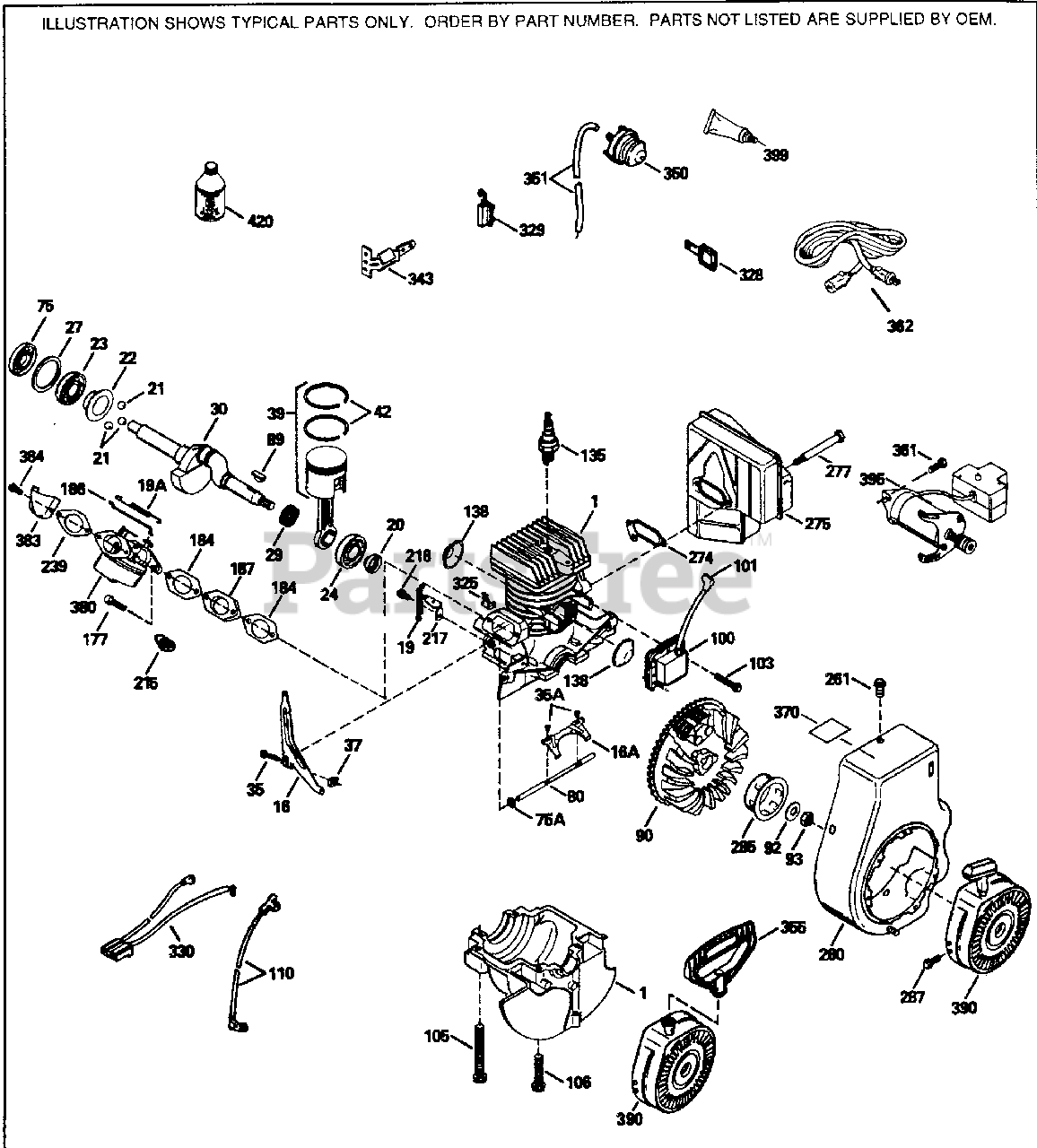

Engine Parts List Parts Diagram

  • Title

1

Tecumseh 250295

"Cylinder Ass'y. (Incl. 75A, 138, 105, 106)& 138)
(Superseded to 250305)

$

$

Not available

1

Tecumseh 37083

Cylinder (Incl. 2, 20, 72 & 80) (3-5/ 16" Bore)

$179.99

$

Usually ships in 3-12 days

0

2

Tecumseh 27652

Dowel Pin

$2.49

$

Usually ships in 3-12 days

0

14

Tecumseh 28277

Flat Washer

$1.99

$

In Stock, only 3 left!

0

15

Tecumseh 35685

Governor Rod (Incl. 14 & 38)

$7.49

$

Usually ships in 3-12 days

0

16

Tecumseh 490317

Governor Lever

$

$

Not available

16A

Tecumseh 490304

Governor Follower Arm

$5.49

$

Usually ships in 3-12 days

0

17

Tecumseh 29916

Governor Lever Clamp

$1.99

$

In Stock, only 1 left!

0

19A

Tecumseh 490318

Throttle Link Spring

$5.49

$

In Stock, Qty 7

0

19

Tecumseh 490320

Extension Spring
(Superseded to 570271)

$

$

Not available

20

Tecumseh 35319

Oil Seal

$4.99

$

Usually ships in 3-12 days

0

20

Tecumseh 510340

Oil Seal

$5.49

$

In Stock, only 1 left!

0

21

Tecumseh 570673

Ball Bearing

$1.99

$

In Stock, only 1 left!

0

22

Tecumseh 510338

Slide Ring

$3.99

$

Usually ships in 3-12 days

0

23

Tecumseh 530158

Ball Bearing

$26.99

$

In Stock, only 1 left!

0

24

Tecumseh 530161

Ball Bearing

$22.99

$

In Stock, only 1 left!

0

27

Tecumseh 530159

Bearing Retainer

$1.99

$

Usually ships in 3-12 days

0

29

Tecumseh 530164

Bearing Strip (31 Needles)

$13.99

$

Usually ships in 3-12 days

0

30

Tecumseh 35680B

Crankshaft

$

$

Not available

30

Tecumseh 290627

Crankshaft

$

$

Not available

31

Tecumseh 35327

Counterbalance Gear

$18.99

$

Usually ships in 3-12 days

0

35

Tecumseh 29826

Screw, 10-32 X 3/4"

$1.99

$

In Stock, only 3 left!

0

35

Tecumseh 29826

Screw, 10-32 x 3/4"

$1.99

$

In Stock, only 3 left!

0

35A

Tecumseh 650961

Screw, 4-40 x 1/4"
(Superseded to 650506)

$1.49

$

In Stock, Qty 14

0

37

Tecumseh 29216

Lock Nut, 10-32

$1.99

$

In Stock, only 2 left!

0

37

Tecumseh 29216

Lock Nut, 10-32

$1.99

$

In Stock, only 2 left!

0

38

Tecumseh 29642

Retaining Ring

$100.99

$

In Stock, only 1 left!

0

39

Tecumseh 310277B

Piston & Rod Ass'y. (Incl. 29 & 42)
(Superseded to 310291A)

$106.99

$

Usually ships in 3-12 days

0

40

Tecumseh 35776B

Piston, Pin & Ring Set (Std.)

$54.99

$

Usually ships in 3-12 days

0

42

Tecumseh 310278

Ring Set

$

$

Not available

43

Tecumseh 35772

Piston Pin Retaining Ring

$1.99

$

In Stock, only 4 left!

0

45

Tecumseh 36898A

Connecting Rod Assembly (Incl. 47 & 4 9)

$52.99

$

Usually ships in 3-12 days

0

47

Tecumseh 651033A

Connecting Rod Bolt (1/4-20 X 1-5/16" )

$

$

Not available

48

Tecumseh 35313A

Valve Lifter

$

$

Not available

50

Tecumseh 35682A

Camshaft (MCR)

$105.99

$

Usually ships in 3-12 days

0

51

Tecumseh 35747A

Counterbalance Weight

$65.22

$

In Stock, only 1 left!

0

69

Tecumseh 35683

Cylinder Cover Gasket

$3.99

$

Usually ships in 3-12 days

0

70

Tecumseh 35684B

Cylinder Cover

$

$

Not available

71

Tecumseh 35377

Crankshaft Bushing

$11.99

$

In Stock, only 1 left!

0

72

Tecumseh 27642

Oil Drain Plug (Sq. Hd., 1/4-18)

$1.99

$

In Stock, only 2 left!

0

75A

Tecumseh 510337

Oil Seal

$3.99

$

Usually ships in 3-12 days

0

75

Tecumseh 510339

Oil Seal

$7.49

$

Usually ships in 3-12 days

0

80

Tecumseh 490305

Governor Shaft

$11.99

$

Usually ships in 3-12 days

0

80

Tecumseh 35751

Governor Shaft

$

$

Not available

81

Tecumseh 35479A

Washer
(Superseded to 651080)

$1.99

$

In Stock, Qty 5

0

82

Tecumseh 35321

Governor Gear Assembly

$9.49

$

Usually ships in 3-12 days

0

83

Tecumseh 35322

Governor Spool

$1.99

$

In Stock, Qty 5

0

84

Tecumseh 29193

Retaining Ring

$1.99

$

In Stock, only 4 left!

0

86

Tecumseh 650833

Screw, 1/4-20 X 1-3/16"

$1.99

$

Usually ships in 3-12 days

0

87

Tecumseh 650832

Screw, 1/4-20 X 1- 11/16"

$

$

Not available

89

Tecumseh 611191

Flywheel Key

$1.99

$

Usually ships in 3-12 days

0

90

Tecumseh 611192

Flywheel

$

$

Not available

92

Tecumseh 650815

Belleville Washer

$1.99

$

In Stock, Qty 10

0

93

Tecumseh 650816

Flywheel Nut

$4.49

$

In Stock, Qty 6

0

100

Tecumseh 34443A

Solid State Ignition
(Superseded to 34443D)

$44.99

$

In Stock, only 2 left!

0

101

Tecumseh 610118

Spark Plug Cover

$6.49

$

In Stock, only 2 left!

0

103

Tecumseh 650814

Screw. Torx T-15, 10-24 x 1"
(Superseded to 651007)

$1.99

$

In Stock, only 4 left!

0

105

Tecumseh 650892

Screw, 5/16-18 x 2-3/16"

$1.99

$

In Stock, only 1 left!

0

106

Tecumseh 650891

Screw, 5/16-18 x 1-5/8"

$

$

Not available

119

Tecumseh 36932

Cylinder Head Gasket

$11.99

$

In Stock, Qty 5

0

135

Tecumseh 611049

Resistor Spark Plug (RCJ8Y)

$4.99

$

In Stock, Qty 20+

0

138

Tecumseh 570683

Port Cover

$3.99

$

Usually ships in 3-12 days

0

159

Tecumseh 35952

Rocker Arm Cover Gasket

$6.49

$

In Stock, only 1 left!

0

161

Tecumseh 30063

Screw, T-30, 1/4-20 x 1/2"

$1.99

$

In Stock, Qty 13

0

169

Tecumseh 27896A

Valve Cover Gasket

$1.49

$

In Stock, only 3 left!

0

170

Tecumseh 28423

Breather Body

$13.99

$

In Stock, only 1 left!

0

171

Tecumseh 28424

Breather Element

$3.99

$

In Stock, Qty 8

0

172

Tecumseh 38014

Valve Cover

$

$

Not available

174

Tecumseh 650128

Screw, 10-24 X 1/2"

$5.49

$

In Stock, only 2 left!

0

177

Tecumseh 650959

Screw, 5/32 Allen, 1/4-20 x 1"

$1.99

$

In Stock, Qty 8

0

184

Tecumseh 510326A

Carburetor Gasket

$1.49

$

In Stock, only 3 left!

0

184

Tecumseh 33263

Carburetor-To-Intake Pipe Gasket

$1.49

$

In Stock, Qty 16

0

186

Tecumseh 490319

Governor Link

$1.99

$

In Stock, only 2 left!

0

187

Tecumseh 570438A

Spacer

$3.99

$

In Stock, only 1 left!

0

217

Tecumseh 570667A

Control Lever

$1.99

$

Usually ships in 3-12 days

0

218

Tecumseh 650847

Screw, 8-32 x 1/2"

$1.99

$

In Stock, only 2 left!

0

224

Tecumseh 33515A

Intake Pipe Gasket

$1.99

$

In Stock, only 2 left!

0

239

Tecumseh 35815

Air Filter Gasket

$1.49

$

In Stock, Qty 20+

0

260

Tecumseh 350441

Blower Housing

$

$

Not available

261

Tecumseh 650894

Screw, 5/16-18 x 5/8"

$1.99

$

Usually ships in 3-12 days

0

269

Tecumseh 35762

Exhaust Manifold Gasket

$1.99

$

In Stock, Qty 6

0

274

Tecumseh 510343A

Exhaust Gasket

$3.99

$

In Stock, only 1 left!

0

275

Tecumseh 390325

Muffler

$98.99

$

Usually ships in 3-12 days

0

277

Tecumseh 650893

Screw, 5/16-18 x 3-13/64"

$5.49

$

In Stock, only 2 left!

0

285

Tecumseh 34449

Starter Cup
(Superseded to 34449A)

$10.99

$

Usually ships in 3-12 days

0

287

Tecumseh 650926

Screw, 8-32 x 21/64"

$1.49

$

Usually ships in 3-12 days

0

325

Tecumseh 611034

Wire Clip
(Superseded to 29443)

$1.99

$

In Stock, only 4 left!

0

330

Tecumseh 611158

Wire Harness

$

$

Not available

350

Tecumseh 570629A

Primer Ass'y.
(Superseded to 570629B)

$10.99

$

In Stock, Qty 6

0

351

Tecumseh 32180C

Primer Line

$6.99

$

In Stock, Qty 8

0

362

Tecumseh 32450B

Extension Cord

$

$

Not available

370

Tecumseh 35977

Caution Decal

$2.49

$

In Stock, Qty 6

0

380

Tecumseh 632642

Carburetor (Incl. 184)
(Superseded to 640310)

$107.99

$

Usually ships in 3-12 days

0

383

Tecumseh 570695

Spit Cup

$3.99

$

In Stock, only 1 left!

0

384

Tecumseh 650229

Screw, Torx T-25, 10-32 x 3/8"

$1.99

$

Usually ships in 3-12 days

0

390

Tecumseh 590652

Rewind Starter
(Superseded to 590784)

$50.99

$

Usually ships in 3-12 days

0

395

Tecumseh 590670

Electric Starter Motor (110 Volt)

$226.99

$

In Stock, only 2 left!

0

399

Tecumseh 510334

Gasket Eliminator (Loctite 515)

$12.99

$

Usually ships in 3-12 days

0

420

Tecumseh 730227D

2-Cycle Oil with Fuel Stabilizer - 8 oz.

$3.99

$

In Stock, Qty 5

0
