HSD 205 (UT-30521) - Homelite 20" Side-Discharge Walk-Behind Mower Handles & Controls Parts Diagram

20" Side-Discharge Walk-Behind Mower

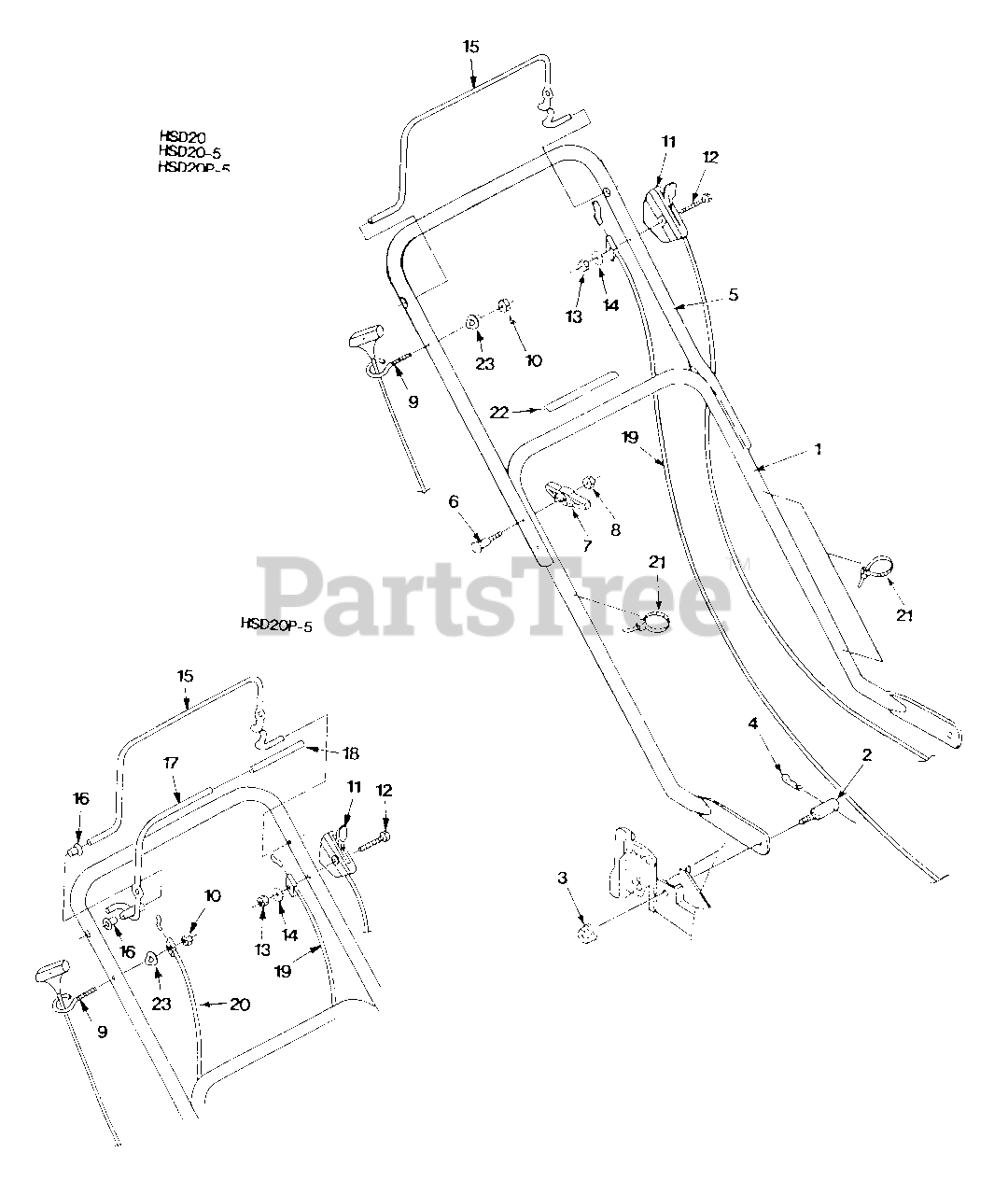

Handles & Controls Parts Diagram

  • Title
1

Homelite JA992400

Handle - lower

$

$

Currently unavailable

2

Homelite JA359178

Stud - handle mounting

$

$

Not available

3

Homelite JA445775

Nut - hex 5/16-18 flnge lock
(Superseded to UP06674)

$

$

Not available

4

$

$

Not available

5

Homelite 03387

Handle - upper

$

$

Not available

6

Homelite JA359102

Bolt - carriage 5/16-18 x 2 - 1/4

$

$

Not available

7

Homelite GP113589

Knob - handle, plastic
(Superseded to JA339550)

$

$

Not available

8

Homelite JA443106

Nut - hex 5/16 - 18
(Superseded to 81018)

$

$

Not available

9

Homelite JA991952

Eyebolt - starter rope 1/4-20

$

$

Currently unavailable

10

Homelite JA444708

Nut - hex 1/4-20 lock

$

$

Currently unavailable

11

Homelite JA994864

Control - throttle w/cable

$

$

Currently unavailable

12

Homelite JA400120

Bolt - hex 1/4-20 x 2
(Superseded to 80295)

$4.99

$

Usually ships in 3-7 days

0

13

Homelite JA443102

Nut - hex 1/4-20
(Superseded to JA993730)

$

$

Not available

14

Homelite JA993731

Washer - lock 1/4 ext tooth

$

$

Currently unavailable

15

Homelite JA993850

Bail - engine/blade control

$

$

Currently unavailable

16

Homelite JA993670

Bushing - control bail

Note: Not used on this product

$

$

Not available

17

Homelite JA993860

Bail - ground drive control

Note: Not used on this product

$30.99

$

Usually ships in 3-7 days

0

18

Homelite JA993682

Sleeve - ground drive bail

Note: Not used on this product

$

$

Not available

19

Homelite JA990534

Cable - engine/blade control

$

$

Currently unavailable

20

Homelite JA990535

Cable - ground drive

Note: Not used on this product

$

$

Currently unavailable

21

Homelite JA994274

Cable Tie

$

$

Not available

22

Homelite 04614

Decal - starting instructions

$

$

Currently unavailable

23

Homelite JA344544

Washer - curved

$

$

Not available
