HSD 20 (UT-30520-A) - Homelite 20" Side-Discharge Walk-Behind Mower Handles & Controls Parts Diagram

20" Side-Discharge Walk-Behind Mower

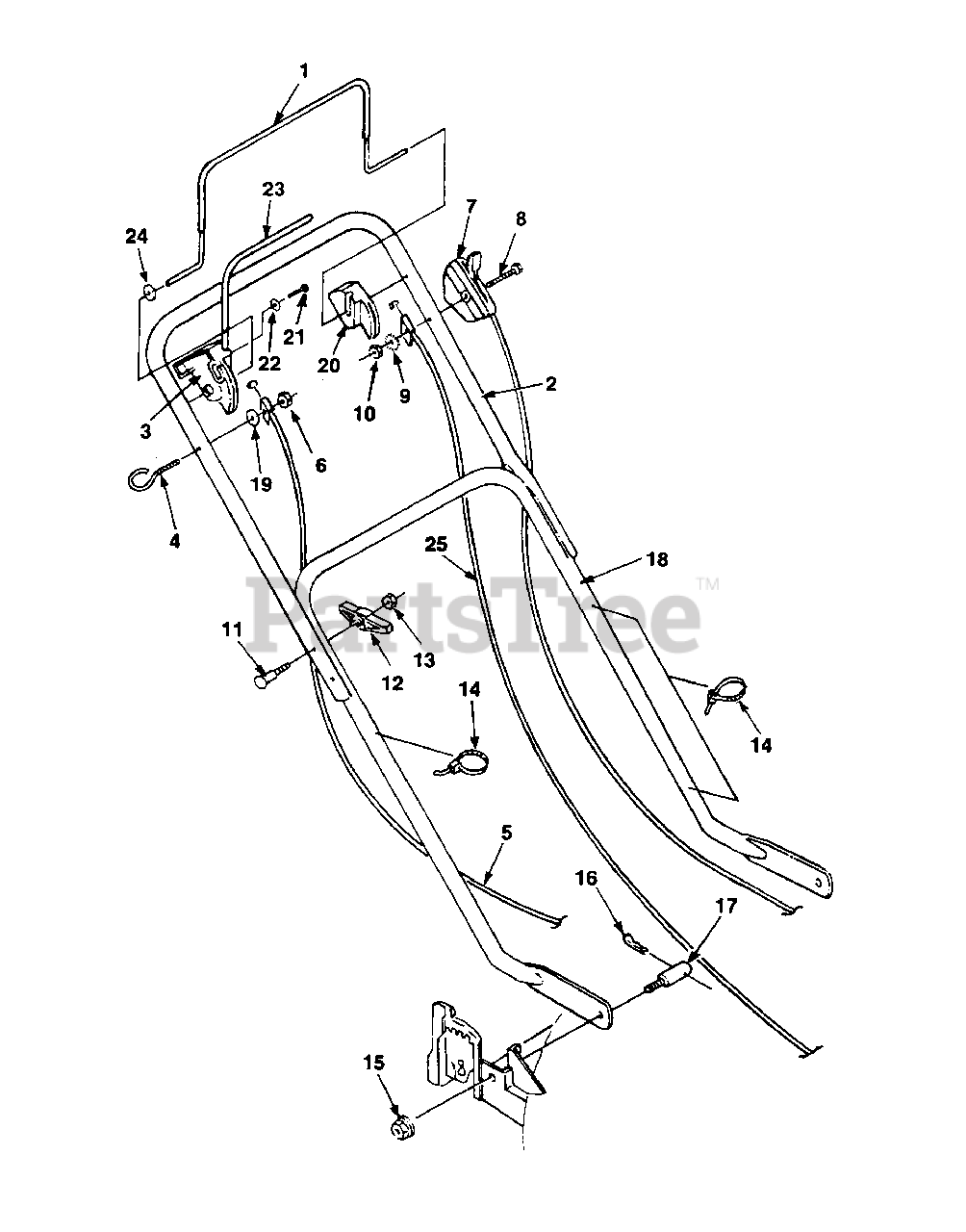

Handles & Controls Parts Diagram

  • Title
1

Homelite JA991888

BAIL- Brake control

$

$

Not available

2

Homelite JA991894

HANDLE- Upper

$

$

Not available

$

$

Currently unavailable

4

Homelite JA991952

Eyebolt - starter rope 1/4-20

$

$

Currently unavailable

5

Homelite JA994798

NLA(NO LONGER AVAILABLE)

$

$

Currently unavailable

6

Homelite JA444708

Nut - hex 1/4-20 lock

$

$

Currently unavailable

7

Homelite JA994864

CONTROL-Throttle

$

$

Currently unavailable

8

Homelite JA993197

SCREW, CAP HEX HD
(Superseded to UP06523)

$4.99

$

Usually ships in 3-7 days

0

9

Homelite JA447010

WASHER- External tooth (1/4")

$

$

Currently unavailable

10

Homelite JA443102

NUT - Hex 1/4-20
(Superseded to JA993730)

$

$

Not available

11

$

$

Not available

12

Homelite JA339550

HANDLE KNOB-TBO

$

$

Not available

13

Homelite JA443106

NUT TBO
(Superseded to 81018)

$

$

Not available

14

Homelite JA994274

CABLE - Tie

$

$

Not available

15

Homelite JA445775

HEX WASHER NUT-TBO
(Superseded to UP06674)

$

$

Not available

16

$

$

Not available

17

Homelite JA359178

Stud - handle mounting

$

$

Not available

18

Homelite JA992400

Handle - lower

$

$

Currently unavailable

19

Homelite JA344544

WASHER

Note: Not used on this product

$

$

Not available

20

Homelite JA991907

ACTUATOR- L.H.

Note: Not used on this product

$

$

Currently unavailable

21

Homelite JA409704

SCREW - Hex #10-16

Note: Not used on this product

$

$

Not available

22

Homelite JA452002

WASHER

Note: Not used on this product

$

$

Not available

23

Homelite JA991893

TRACTION LEVER

Note: Not used on this product

$

$

Currently unavailable

24

Homelite JA453009

FLAT WASHER(HSD'S) TBO
(Superseded to UP07173)

Note: Not used on this product

$

$

Not available

25

Homelite JA994863

NLA(NO LONGER AVAILABLE)

Note: Not used on this product

$

$

Not available

Homelite JA994816

NLA(NO LONGER AVAILABLE)

Note: Not used on this product

$

$

Currently unavailable

Homelite JA993439

CONTROL- Manual start

Note: Not used on this product

$

$

Currently unavailable
