HSD 20 (UT-30072) - Homelite 20" Side-Discharge Walk-Behind Mower Handles & Controls Parts Diagram

20" Side-Discharge Walk-Behind Mower

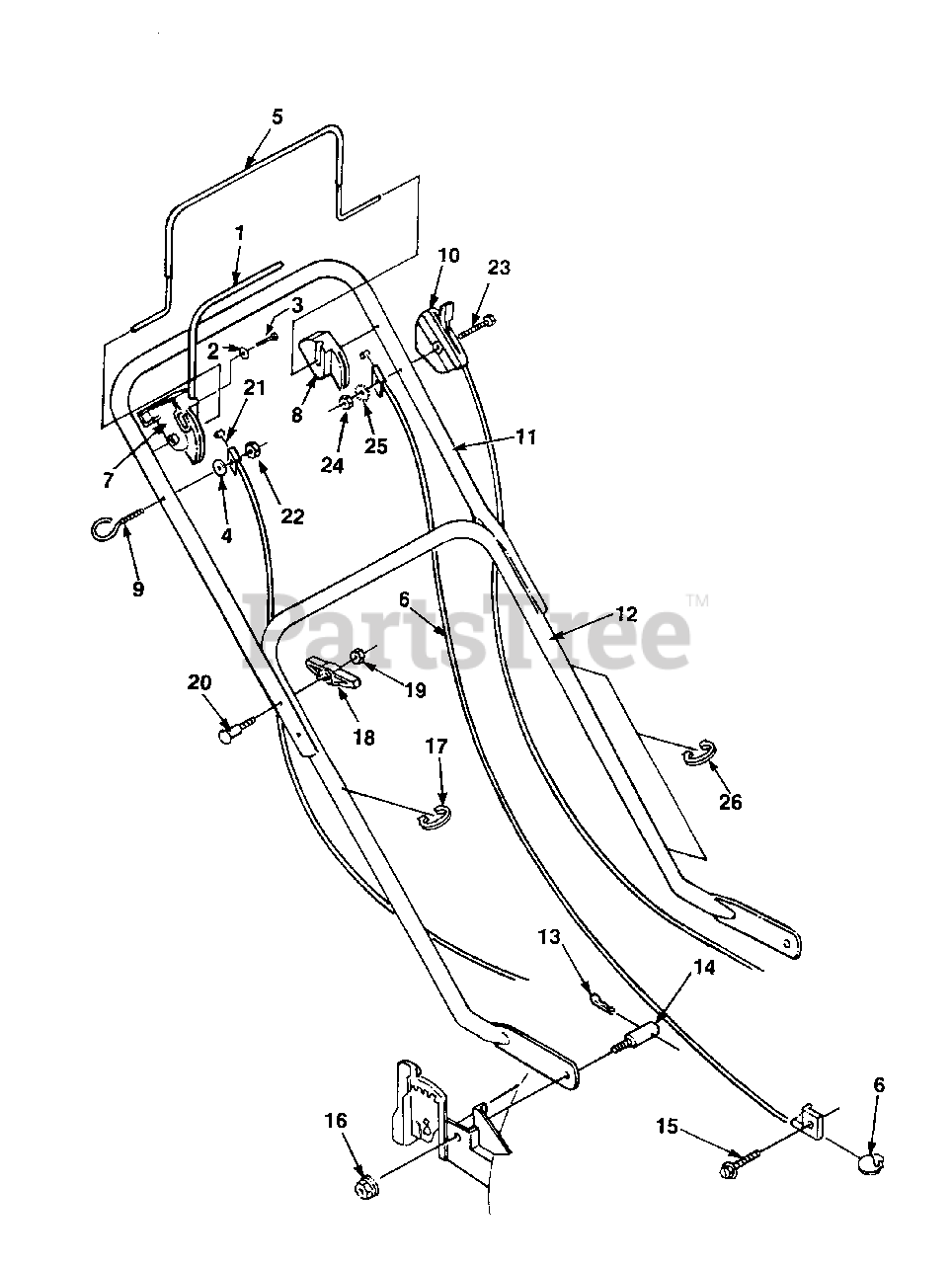

Handles & Controls Parts Diagram

  • Title

1

TRACTION LEVER ASSY.

Note: Not used on this product

$

$

Not available

2

WASHER

Note: Not used on this product

$

$

Not available

3

SCREW

Note: Not used on this product

$

$

Not available

4

Homelite JA343535

WASHER

$

$

Currently unavailable

5

Homelite JA991888

BAIL- Brake control

$

$

Not available

6

Homelite JA991899

CONTROL- Manual start

$

$

Not available

7

ACTUATOR- R.H.

Note: Not used on this product

$

$

Not available

8

Homelite JA991907

ACTUATOR- L.H.

$

$

Currently unavailable

9

Homelite JA991952

EYEBOLT

$

$

Currently unavailable

10

Homelite JA991901

CONTROL- Throttle
(Superseded to JA993195)

$41.99

$

Usually ships in 3-7 days

0

11

Homelite JA991894

HANDLE- Upper

$

$

Not available

12

Homelite JA992400

HANDLE- Lower

$

$

Currently unavailable

13

Homelite JA460306

PIN- Hair

$

$

Not available

14

Homelite JA359178

STUD

$

$

Not available

15

Homelite JA403744

SCREW

$

$

Currently unavailable

16

Homelite JA445775

NUT- Flanged
(Superseded to UP06674)

$

$

Not available

17

CLAMP- Cable single

Note: Not used on this product

$

$

Not available

18

Homelite JA339550

KNOB- Handle

$

$

Not available

19

Homelite JA443106

NUT- Hex
(Superseded to 81018)

$

$

Not available

20

Homelite JA359102

BOLT

$

$

Not available

21

CABLE- Traction control

Note: Not used on this product

$

$

Not available

22

Homelite JA444708

NUT- Hex

$

$

Currently unavailable

23

Homelite JA992920

BOLT- Sq. neck

$

$

Currently unavailable

24

Homelite JA443102

NUT- Hex
(Superseded to JA993730)

$

$

Not available

25

Homelite JA447010

WASHER- External tooth

$

$

Currently unavailable

26

Homelite JA995410

CLAMP- Double
(Superseded to JA994274)

$

$

Not available
