HSD 20 P5 (UT-30523-A) - Homelite 20" Side-Discharge Walk-Behind Mower Mower Parts Diagram

20" Side-Discharge Walk-Behind Mower

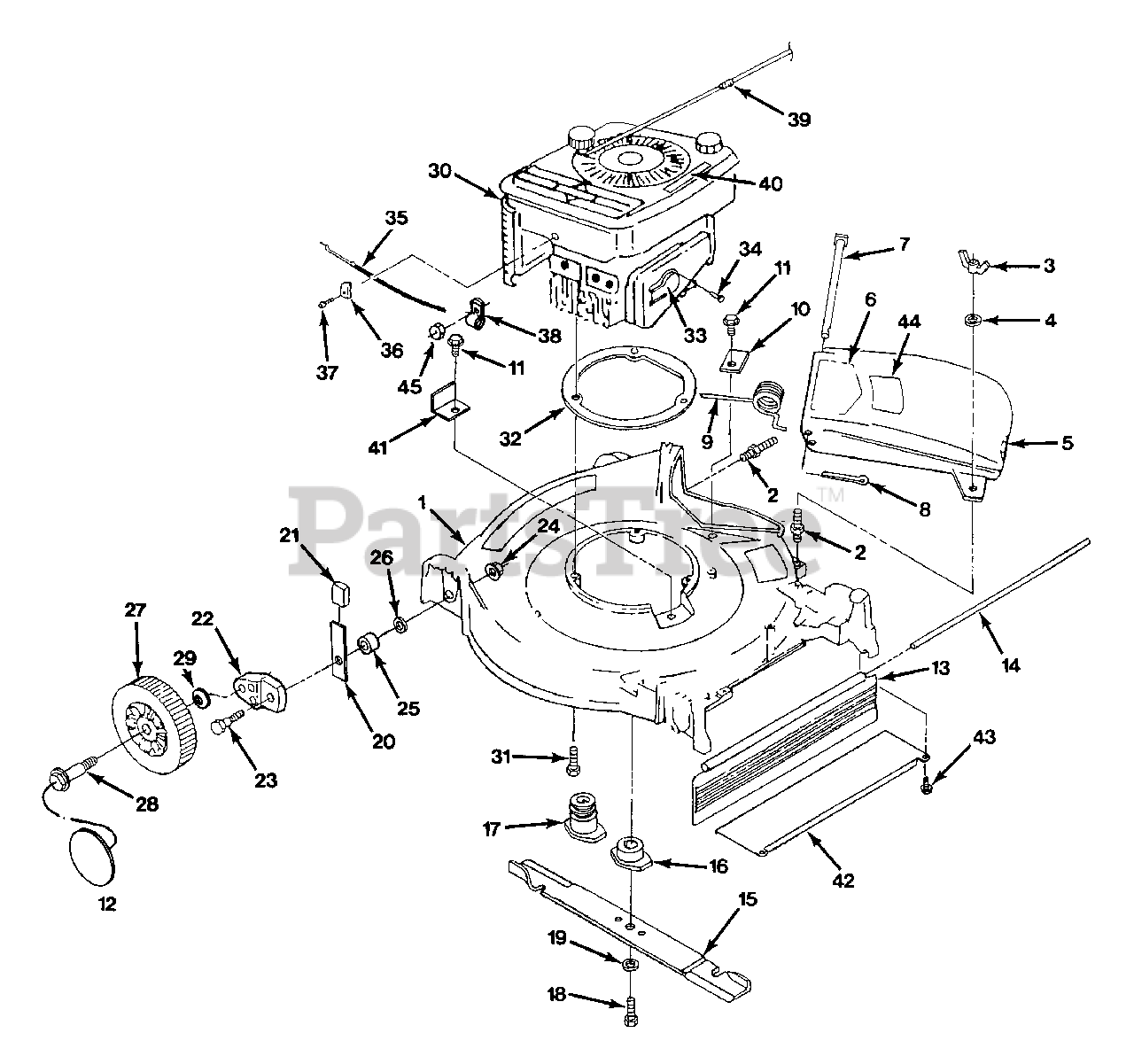

Mower Parts Diagram

  • Title

1

Homelite GP023901

Deck - 20" propelled

$

$

Currently unavailable

2

Homelite JA992964

Stud - 1/4-20 x 3/4

$

$

Not available

3

Homelite JA992974

Nut - wing 1/4-20 nylock

$

$

Not available

4

Homelite GP615690

Washer - flat 1/4

$

$

Not available

5

Homelite GP115556

Cover - discharge opening

$

$

Currently unavailable

6

Homelite JA992264

Decal - DANGER CPSC

$

$

Not available

7

Homelite JA992958

Pin - hinge

$

$

Currently unavailable

8

Homelite GP715029

Pin - cotter

$

$

Currently unavailable

9

Homelite JA375276

Spring - cover

$

$

Currently unavailable

10

Homelite JA992981

Bracket - rear bagger

$

$

Currently unavailable

11

Homelite JA409907

Screw - hex tap 1/4-20 x 1/2

$

$

Not available

12

Homelite GP043254

Hubcap

$

$

Currently unavailable

13

Homelite JA339238

Flap - drag
(Superseded to UP06701)

$

$

Not available

14

Homelite JA375391

Rod - drag flap

$

$

Currently unavailable

15

Homelite JA993820

Blade - cutter 20"

$23.99

$

Usually ships in 3-7 days

0

16

Adapter - blade

Note: Not Used On This Model.

$

$

Not available

17

Homelite GP095216

Adapter - blade w/pulley

$

$

Currently unavailable

18

Homelite GP382902

Bolt - hex 3/8-24 x 1-1/4 Gde 8

$

$

Currently unavailable

19

Homelite GP156919

Washer - split lock 3/8 hvy

$

$

Currently unavailable

20

Homelite JA990087

Lever - height adjuster
(Superseded to GP586051)

$38.99

$

Usually ships in 3-7 days

0

21

Homelite JA336623

Tip - adjuster lever
(Superseded to UP06697)

$

$

Not available

22

Homelite GP023895

Arm - wheel mount

$

$

Currently unavailable

23

Homelite GP166730

Bolt - hex 5/16-18 x 1-5/8 shldr

$

$

Currently unavailable

24

Homelite JA445775

Nut - hex 5/16-18 flnge lock
(Superseded to UP06674)

$

$

Not available

25

Homelite JA358362

Spacer - adjuster lever

$

$

Not available

26

Homelite JA453009

Washer - flat 5/16
(Superseded to UP07173)

$

$

Not available

27

Homelite GP043250

Wheel - 8"

$

$

Currently unavailable

28

Homelite GP166741

Bolt - wheel 3/8-16

$

$

Currently unavailable

29

Homelite GP715607

Washer - Belleville

$4.49

$

Usually ships in 3-7 days

0

30

Engine

Note: For engine replacement parts, locate the engine brand name, model number, and type number and consult the appropriate dealer in your area.

$

$

Not available

31

Homelite JA408876

Bolt - hex 3/8-16 x 1 1/2

$

$

Not available

32

Homelite JA994311

Ring - engine

$

$

Not available

33

Homelite JA359256

Deflector - muffler

$

$

Not available

34

Homelite JA408880

Screw-tap #8-32 x 3/8

$

$

Currently unavailable

35

Homelite GP053103

Control - throttle w/cable

$

$

Not available

36

Homelite JA991876

Clamp - cable

$

$

Currently unavailable

37

Homelite GP166640

Screw - tap #10-16 x 5/8

$

$

Currently unavailable

38

Homelite GP447607

Clip - cable

$

$

Currently unavailable

39

Homelite JA990567

Stop - rope

$

$

Not available

40

Homelite 04443

Decal - DANGER, blade moving

$10.99

$

Usually ships in 3-7 days

0

41

Cover - belt opening

Note: Not Used On This Model.

$

$

Not available

42

Homelite JA994309

Cover - rear

$

$

Currently unavailable

43

Homelite JA408878

Screw - hex 1/4-20 x 3/4

$

$

Not available

44

Homelite JA992391

Decal - DANGER

$

$

Not available

45

Homelite JA444708

Nut - hex 1/4-20 lock

$

$

Currently unavailable
