HSD 20 P4M (UT-30166) - Homelite 20" Side-Discharge Walk-Behind Mower Gear Reducer Parts Diagram

20" Side-Discharge Walk-Behind Mower

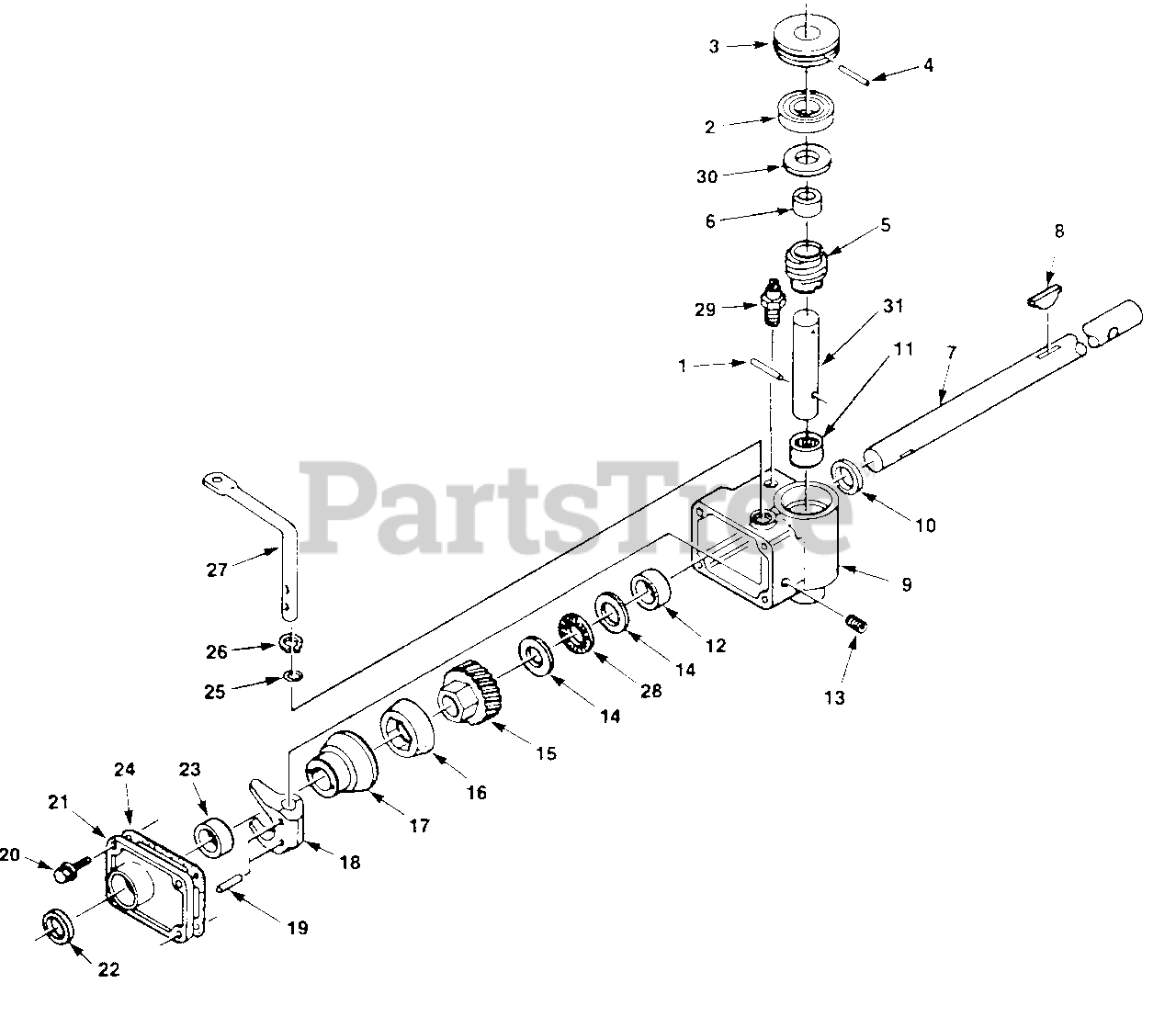

Gear Reducer Parts Diagram

  • Title

1

Homelite JA461415

PIN-Roll

$

$

Not available

2

Homelite JA990499

BEARING-Ball

$

$

Not available

3

Homelite JA359085

PULLEY-Gear box
(Superseded to UP06660)

$33.99

$

Usually ships in 3-7 days

0

4

Homelite JA461414

PIN-Roll

$

$

Currently unavailable

5

Homelite JA990642

WORM & SPACER

$

$

Currently unavailable

6

Homelite JA990478

SPACER-Worm

$

$

Currently unavailable

7

Homelite JA994761

SHAFT-Drive

$

$

Not available

8

Homelite JA463101

KEY

$1.99

$

In Stock, only 1 left!

0

9

Homelite JA990529

HOUSING-Gearbox

$

$

Currently unavailable

10

Homelite JA376110

SEAL

$15.99

$

In Stock, only 2 left!

0

11

Homelite 58956

BEARING-Needle

$

$

Not available

12

Homelite JA992820

BUSHING-Sleeve

$

$

Not available

13

Homelite JA472007

PLUG-Pipe

$

$

Not available

14

Homelite JA990446

RACE-Thrust

$

$

Not available

15

Homelite JA992770

GEAR-Helical

$

$

Not available

16

Homelite JA992780

CONE-Friction

$

$

Currently unavailable

17

Homelite JA990217

DRUM-Clutch

$

$

Not available

18

Homelite JA990153

FORK-Shift

$

$

Not available

19

Homelite JA461330

PIN-Groove

$

$

Not available

20

Homelite JA408862

SCREW- (1/4-20 x 7/8")

$

$

Currently unavailable

21

Homelite JA990168

GEAR BOX COVER ASSEMBLY

$

$

Currently unavailable

22

Homelite JA376110

SEAL

$15.99

$

In Stock, only 2 left!

0

23

Homelite JA992820

BUSHING-Sleeve

$

$

Not available

24

Homelite JA375948

GASKET-Gearbox
(Superseded to GP582047)

$4.99

$

Usually ships in 3-7 days

0

25

Homelite JA459037

"O" RING

$

$

Not available

26

Homelite JA458094

TRU-ARC RING

$

$

Not available

27

Homelite JA994140

LEVER-Shift

$

$

Currently unavailable

28

Homelite JA990447

BEARING-Thrust

$

$

Currently unavailable

29

Homelite JA990415

VENT

$

$

Not available

30

Homelite JA990463

WASHER

$

$

Not available

31

Homelite JA990525

WORM-Shaft

$

$

Currently unavailable
