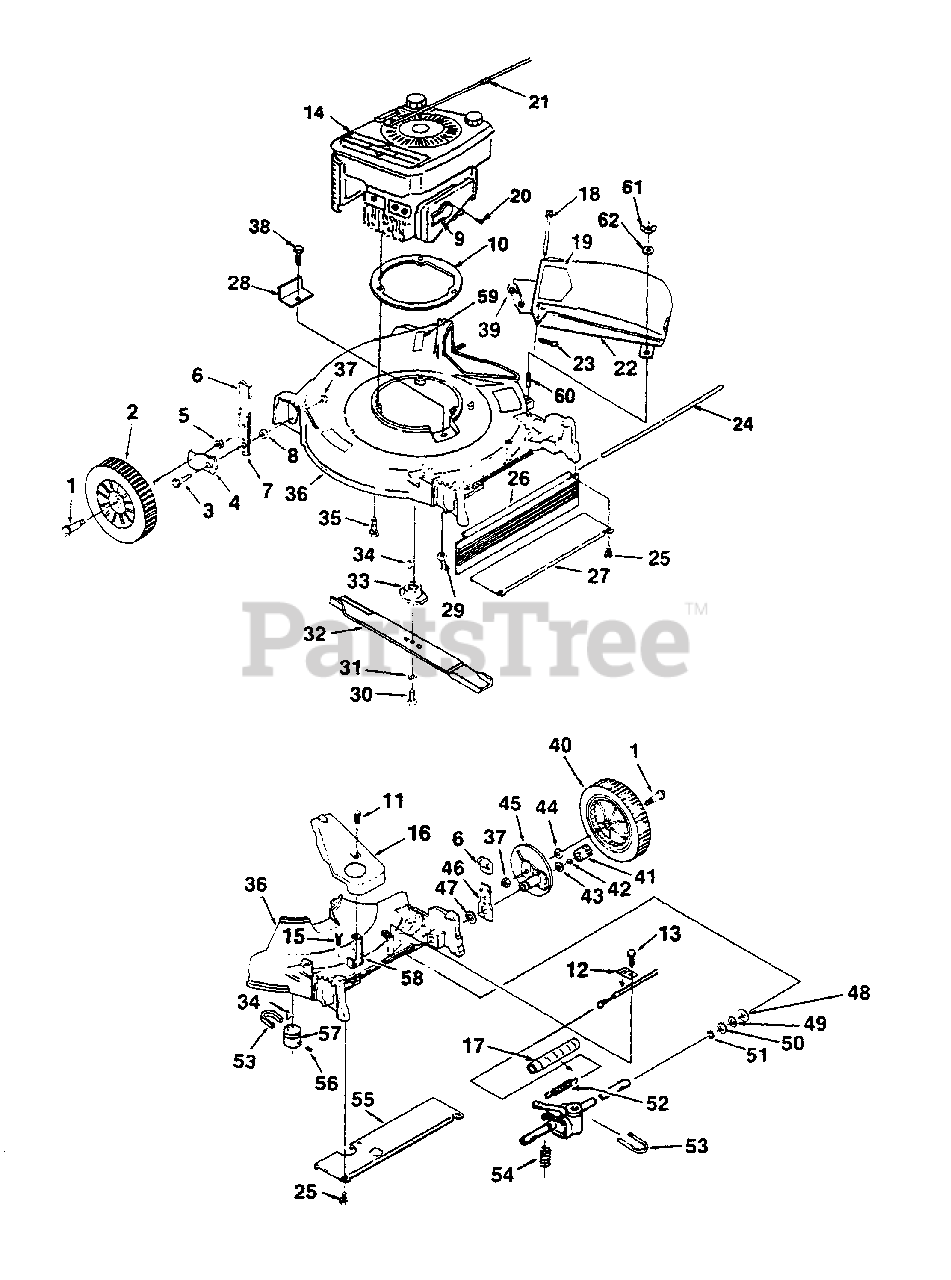

HSD 20 P (UT-30097) - Homelite 20" Side-Discharge Walk-Behind Mower Deck Assembly Parts Diagram

20" Side-Discharge Walk-Behind Mower

Deck Assembly Parts Diagram

  • Title
1

Homelite JA992955

BOLT- Axle
(Superseded to UP06685)

$

$

Currently unavailable

2

Homelite JA991782

WHEEL & TIRE
(Superseded to UP06670)

$

$

Not available

3

Homelite JA359180

BOLT- Hex hd. 5/16-18

$

$

Not available

4

Homelite JA991287

ARM- Wheel adjusting
(Superseded to GP031455)

$

$

Currently unavailable

5

Homelite JA444850

NUT
(Superseded to JA993711)

$

$

Not available

6

Homelite JA336623

KNOB
(Superseded to UP06697)

$

$

Not available

7

Homelite JA990087

INDEX SPRING & PIN ASSY.
(Superseded to GP586051)

$38.99

$

Usually ships in 3-7 days

0

$

$

Not available

9

Homelite JA359256

DEFLECTOR

$

$

Not available

10

Homelite JA991879

RING- Engine
(Superseded to JA994311)

$

$

Not available

11

Homelite JA408879

SCREW- 1/4-20 x 3/4"

$

$

Currently unavailable

12

Homelite JA991065

CLAMP- Cable

$

$

Not available

13

Homelite JA409908

SCREW- Thd. 1/4-20 x 5/8"

$3.99

$

Usually ships in 3-7 days

0

14

Homelite JA991911

ENGINE- 3.5 H.P.

$

$

Currently unavailable

15

SCREW- Sems thd. forming 1/4-20 x 9/16"

Note: Not used on this product

$

$

Not available

16

COVER- Drive

Note: Not used on this product

$

$

Not available

17

COVER- Spring

Note: Not used on this product

$

$

Not available

18

Homelite JA992958

PIN- Hinge

$

$

Currently unavailable

19

Homelite JA339460

LABEL- Warning

$

$

Not available

20

Homelite JA408880

SCREW- Sems #8-32 x 3/8"

$

$

Currently unavailable

21

Homelite JA990567

STOP- Rope

$

$

Not available

22

Homelite JA992998

CHUTE
(Superseded to UP06680)

$

$

Currently unavailable

23

JA4600l4

PIN- Cotter 3/32 x 3/4"

$

$

Not available

$

$

Currently unavailable

25

Homelite JA408878

SCREW- Hex washer hd. 1/4-20 x 3/4"

$

$

Not available

26

Homelite JA339238

FLAP- Drag
(Superseded to UP06701)

$

$

Not available

27

COVER- Rear

Note: Not used on this product

$

$

Not available

28

COVER- Belt opening

Note: Not used on this product

$

$

Not available

29

NUT- Hex 1/4-20

Note: Not used on this product

$

$

Not available

30

Homelite JA401196

SCREW- Hex hd. 3/8-24 x 1"

$

$

Currently unavailable

31

Homelite JA446142

WASHER- Lock 3/8

$

$

Not available

32

Homelite JA392422

BLADE
(Superseded to JA993820)

$23.99

$

Usually ships in 3-7 days

0

33

$30.99

$

Usually ships in 3-7 days

0

$

$

Not available

35

Homelite JA408876

SCREW- Hex hd. 3/8-16 x 1 1/2"

$

$

Not available

$

$

Currently unavailable

37

Homelite JA445775

NUT- Flange 5/16-18
(Superseded to UP06674)

$

$

Not available

38

SCREW- Hex hd. 1/4-20 x 1/2"

Note: Not used on this product

$

$

Not available

39

$

$

Currently unavailable

40

Homelite JA991783

WHEEL & TIRE ASSY.
(Superseded to JA993975)

$

$

Not available

41

Homelite JA204244

PINION- R.H.

$

$

Not available

Homelite JA204245

PINION- L.H.

$

$

Currently unavailable

$

$

Not available

43

$

$

Not available

44

$

$

Not available

45

Homelite JA990074

DR. WHEEL SUPPORT ASSY.
(Superseded to GP095304)

$

$

Not available

46

Homelite JA991288

INDEX SPRING & PIN ASSY.

$

$

Not available

47

$

$

Not available

48

$

$

Not available

49

$

$

Not available

50

Homelite JA328147

WASHER- (Shim)

$

$

Not available

51

Homelite JA458451

RING- Eaton

$2.99

$

Usually ships in 3-7 days

0

52

Homelite JA375748

SPRING- Extension

$

$

Not available

53

Homelite JA390165

BELT- Drive
(Superseded to UP07148)

$

$

Not available

54

Homelite JA359266

SPRING- Compression

$

$

Not available

55

Homelite JA339240

COVER- Rear
(Superseded to JA994309)

$

$

Currently unavailable

56

Homelite JA422505

SCREW- Set 1/4-20 x 3/8

$

$

Not available

57

Homelite JA993007

PULLEY- Drive

$

$

Not available

58

Homelite JA375400

BRACKET- Gear box cover

$

$

Currently unavailable

59

Homelite 00305

DECAL- Gasohol

$

$

Currently unavailable

$

$

Not available

61

Homelite JA992974

WING NUT (HSD20 & HSD20P)

$

$

Not available

62

Homelite JA453023

WASHER- Flat 1/4"
(Superseded to 678013001)

$1.99

$

Usually ships in 3-7 days

0
