HSB 212 (UT-30146) - Homelite 21" Superbagger Walk-Behind Mower Handles & Controls (HSB21-2) Parts Diagram

21" Superbagger Walk-Behind Mower

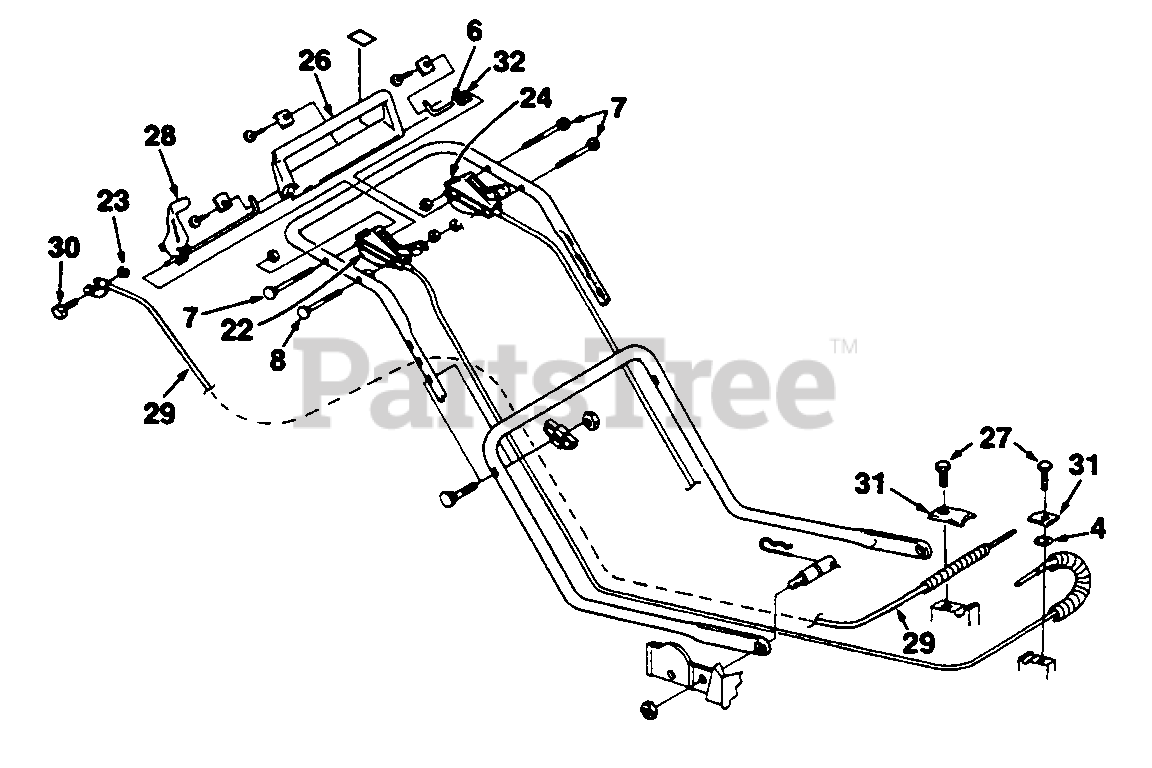

Handles & Controls (HSB21-2) Parts Diagram

  • Title
4

Homelite 83009

WASHER, LOCK

$8.49

$

Usually ships in 3-7 days

0

6

Homelite JA992560

SHAFT - Pivot

$

$

Currently unavailable

7

Homelite JA992920

BOLT- Sq. neck

$

$

Currently unavailable

8

Homelite JA992930

BOLT- Sq. neck

$5.49

$

Usually ships in 3-7 days

0

22

Homelite JA992708

CONTROL- Manual start

$

$

Currently unavailable

23

Homelite JA993701

NUT-Lock (1/4-20)

$

$

Currently unavailable

24

Homelite JA992695

CONTROL- Throttle

$

$

Currently unavailable

26

Homelite JA993190

BAIL- Brake control

$

$

Currently unavailable

27

Homelite JA409908

SCREW- 1/4-20 x 5/8"

$3.99

$

Usually ships in 3-7 days

0

28

Homelite JA995540

TRACTION LEVER ASSY.

Note: Not used on this product

$

$

Currently unavailable

29

Homelite JA991075

CONTROL CABLE TBO

Note: Not used on this product

$

$

Not available

30

Homelite JA400116

SCREW - 1/4-20 x 1 1/2"

Note: Not used on this product

$

$

Not available

$

$

Not available

32

Homelite JA990141

SPRING - Compression

Note: Not used on this product

$

$

Not available
