HSB 21 (UT-30515) - Homelite 21" Superbagger Walk-Behind Mower Mower Parts Diagram

21" Superbagger Walk-Behind Mower

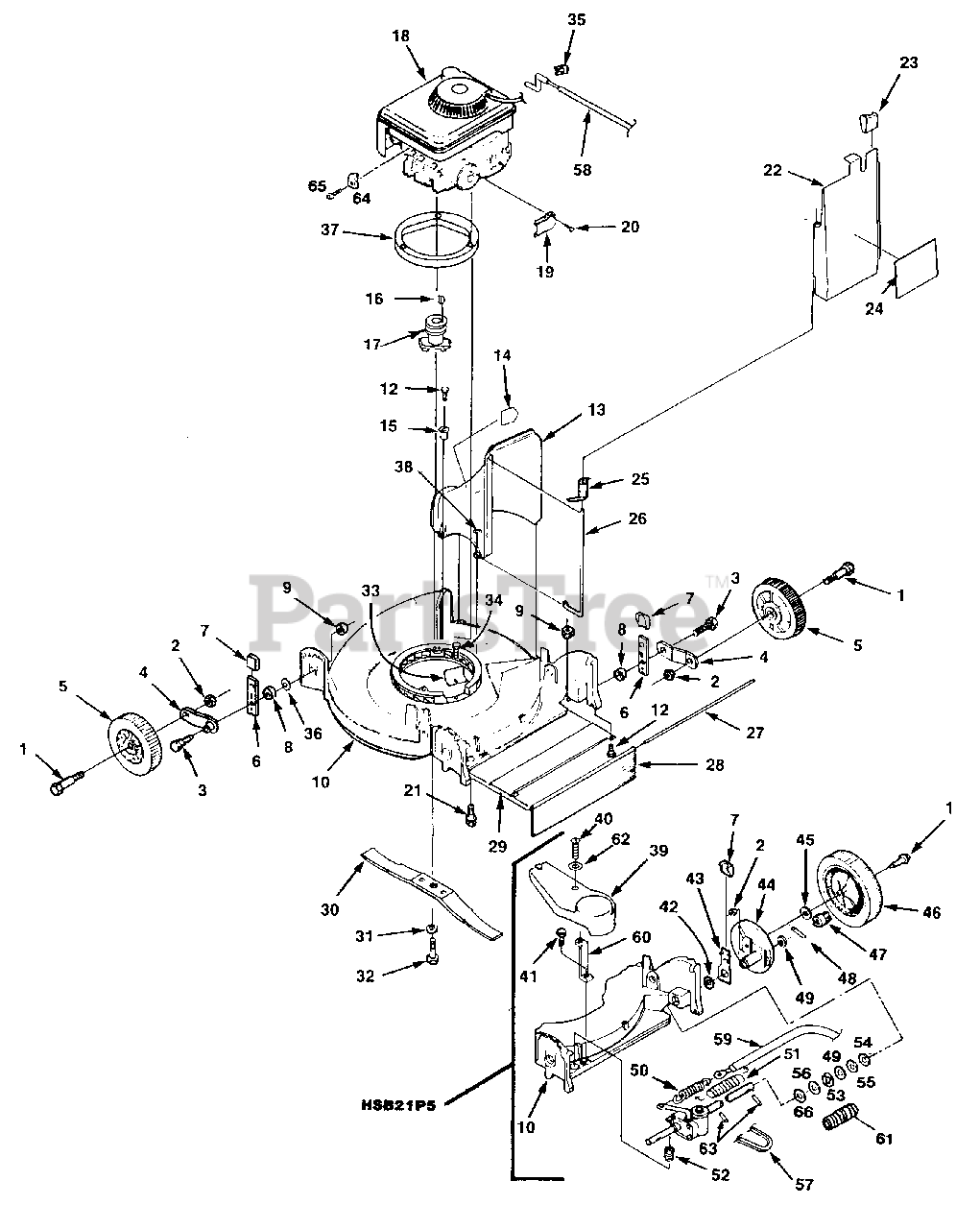

Mower Parts Diagram

  • Title

1

Homelite JA992138

Axle Assembly
(Superseded to UP06685)

Note: Includes ref 2

$

$

Currently unavailable

2

Homelite JA631452

Nut-Jam 3/8-16

$

$

Currently unavailable

3

Homelite JA359180

Bolt - Height adjusting

$

$

Not available

4

Homelite JA991287

Arm-Wheel htg. adj.
(Superseded to GP031455)

$

$

Currently unavailable

5

Homelite JA993958

Wheel & Tire
(Superseded to UP06670)

$

$

Not available

6

Homelite JA990087

Spring - Index (Front)
(Superseded to GP586051)

$38.99

$

Usually ships in 3-7 days

0

7

Homelite JA336623

KNOB- Indexing spring
(Superseded to UP06697)

$

$

Not available

8

Homelite JA358362

SPACER- Wheel height adj.

$

$

Not available

9

Homelite JA445775

NUT - Flange 5/16-18
(Superseded to UP06674)

$

$

Not available

10

Homelite JA994992

DECK 21"

$

$

Currently unavailable

?11

Homelite 04443

DECAL- Danger

$10.99

$

Usually ships in 3-7 days

0

12

Homelite JA408878

SCREW 1/4-20 x 3/4"

$

$

Not available

13

Homelite JA994993

CHUTE - Discharge

Note: Includes refs 14-15

$

$

Currently unavailable

14

Homelite JA992264

DECAL - CPSC

$

$

Not available

15

Homelite JA473183

EYELET - Stimpson

$8.99

$

Usually ships in 3-7 days

0

16

Homelite JA463029

KEY - Woodruff

$

$

Not available

17

Homelite JA994767

ADAPTER - Blade

$

$

Currently unavailable

18

ENGINE

Note: For engine replacement parts, locate the engine brand name, model number, and type number and consult the appropriate dealer in your area.

$

$

Not available

19

Homelite JA359256

DEFLECTOR

$

$

Not available

20

Homelite JA408880

SCREW - #8-32 x 3/8"

$

$

Currently unavailable

21

Homelite JA408885

SCREW - 3/8-16 x 2 1/4"

$

$

Currently unavailable

22

Homelite JA994820

DOOR - Chute

Note: Includes refs 23-24

$

$

Currently unavailable

23

Homelite JA336623

KNOB - Index spring
(Superseded to UP06697)

$

$

Not available

24

Homelite JA994091

DECAL - Door (warning)

$

$

Currently unavailable

25

Homelite JA992947

SPRING - Chute door

$

$

Not available

26

Homelite JA359167

PIN - Hinge

$

$

Not available

27

Homelite JA359170

ROD - Drag flap

$

$

Currently unavailable

28

Homelite JA359257

FLAP - Drag

$

$

Currently unavailable

29

Homelite 03761

COVER - Rear

$

$

Not available

30

Homelite JA994796

BAR - Cutter
(Superseded to GP589413)

$50.99

$

Usually ships in 3-7 days

0

31

Homelite JA446142

WASHER - Lock 3/8"

$

$

Not available

32

Homelite JA403753

SCREW - Hex hd. 3/8-24 x 1 1/4"

$

$

Not available

33

Homelite GP094989

COVER - Belt Opening

$

$

Currently unavailable

34

Homelite JA409907

SCREW - 1/4-20 x 1/2"

$

$

Not available

35

Homelite JA990567

STOP - Rope

$

$

Not available

36

Homelite JA453009

WASHER - Flat (5/16")
(Superseded to UP07173)

$

$

Not available

37

Homelite JA994311

RING - Engine

$

$

Not available

38

Homelite JA453023

WASHER - Plain (1/4")
(Superseded to 678013001)

$1.99

$

Usually ships in 3-7 days

0

39

Homelite JA994725

COVER - Drive

Note: Not used on this product

$

$

Currently unavailable

40

Homelite JA408879

SCREW - 1/4-20 x 3/4"

Note: Not used on this product

$

$

Currently unavailable

41

Homelite JA409704

SCREW - Hex #10-16

Note: Not used on this product

$

$

Not available

42

Homelite JA359141

SPACER - Rear hgt. adj.

Note: Not used on this product

$

$

Not available

43

Homelite JA991288

SPRING - Index

Note: Not used on this product

$

$

Not available

44

Homelite GP023712

SUPPORT - Drive wheel

Note: Not used on this product

$

$

Currently unavailable

45

Homelite JA359500

WASHER

Note: Not used on this product

$

$

Not available

46

Homelite JA993975

WHEEL & TIRE

Note: Not used on this product

$

$

Not available

47

Homelite JA994801

PINION (L.H.)

Note: Not used on this product

$

$

Currently unavailable

Homelite JA994800

PINION (R.H.)

Note: Not used on this product

$

$

Not available

48

Homelite JA994740

PIN - Drive

Note: Not used on this product

$

$

Currently unavailable

49

Homelite JA351077

WASHER

Note: Not used on this product

$

$

Not available

50

Homelite JA375748

SPRING - Extension

Note: Not used on this product

$

$

Not available

51

Homelite JA359270

COVER - Spring

Note: Not used on this product

$

$

Currently unavailable

52

Homelite JA994858

SPRING - Compression

Note: Not used on this product

$

$

Not available

53

Homelite JA458451

RING - Eaton

Note: Not used on this product

$2.99

$

Usually ships in 3-7 days

0

54

Homelite JA454037

WASHER

Note: Not used on this product

$

$

Not available

55

Homelite JA353406

WASHER

Note: Not used on this product

$

$

Not available

56

Homelite JA328147

WASHER

Note: Not used on this product

$

$

Not available

57

Homelite JA993971

BELT - Drive

Note: Not used on this product

$

$

Currently unavailable

58

Homelite JA994849

CONTROL - Engine

$

$

Currently unavailable

59

Homelite JA991075

CABLE - Traction control

Note: Not used on this product

$

$

Not available

60

Homelite 03735

SUPPORT - Belt cover

Note: Not used on this product

$

$

Not available

61

Homelite GP115445

COVER - Drive Shaft

Note: Not used on this product

$

$

Currently unavailable

62

Homelite JA455024

WASHER - Plain

Note: Not used on this product

$

$

Currently unavailable

63

Homelite JA461361

PIN - Roll 1/8 x 7/8

Note: Not used on this product

$

$

Not available

64

Homelite JA991876

CLAMP - CABLE

$

$

Currently unavailable

65

Homelite GP150623

SCREW - #10-16 x 5/8

$7.49

$

Usually ships in 3-7 days

0

66

Homelite JA990446

WASHER - Thrust

Note: Not used on this product

$

$

Not available
