HSB 21 (UT-30515-A) - Homelite 21" Superbagger Walk-Behind Mower Handles & Controls Parts Diagram

21" Superbagger Walk-Behind Mower

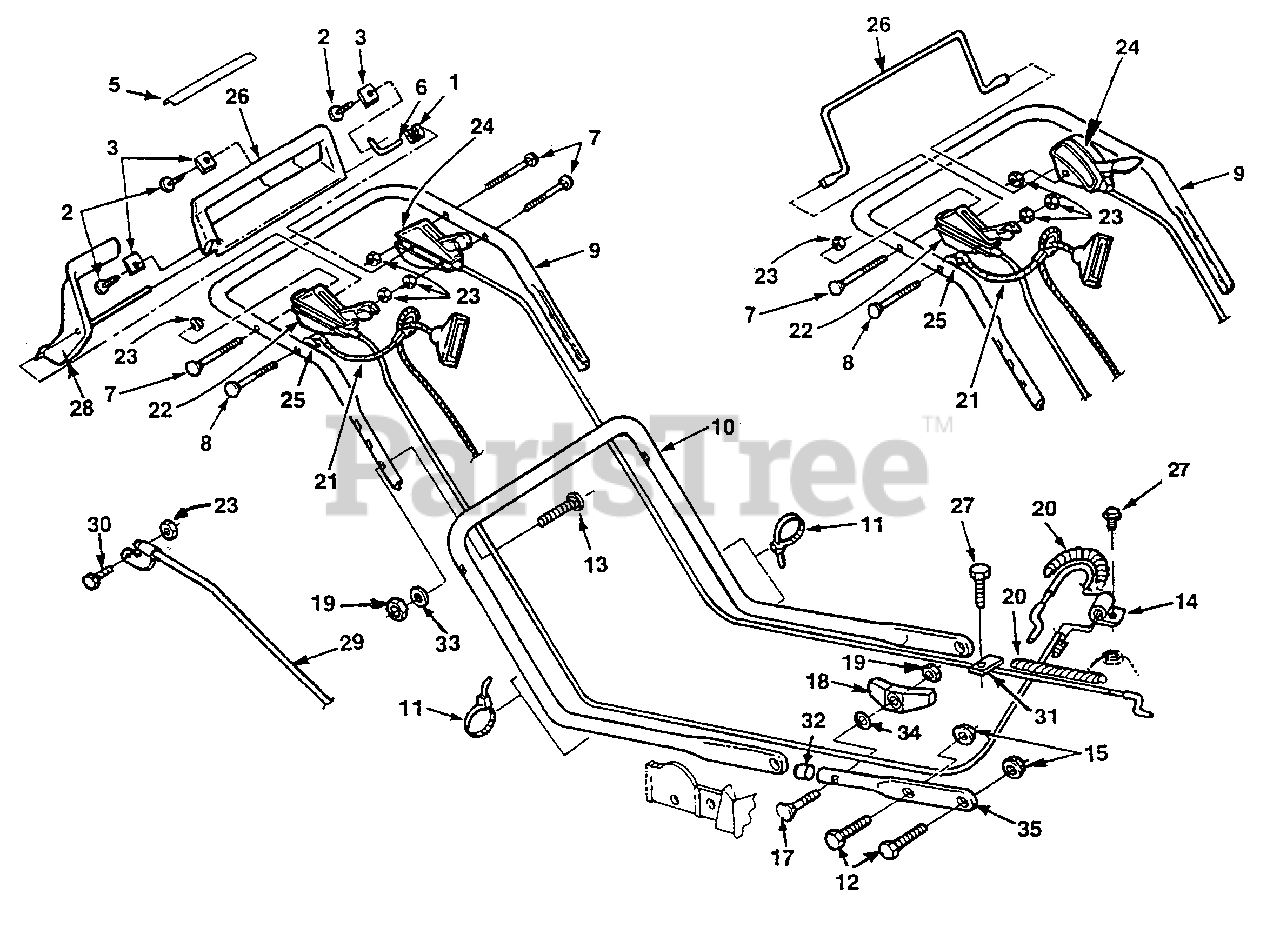

Handles & Controls Parts Diagram

  • Title

1

Homelite JA990141

SPRING - Compression

Note: Not Used On This Product

$

$

Not available

2

Homelite JA408881

SCREW 1/4-10 x 5/8" Truss Tap

Note: Not Used On This Product

$

$

Not available

3

Homelite JA992570

CLAMP - Pivot Shaft

Note: Not Used On This Product

$

$

Currently unavailable

?4

Homelite JA453009

WASHER - 5/16" Flat
(Superseded to UP07173)

$

$

Not available

5

Homelite 04614

DECAL - Starting Instr.

$

$

Currently unavailable

6

Homelite JA992560

PIVOT SHAFT

Note: Not Used On This Product

$

$

Currently unavailable

7

Homelite JA992920

BOLT - 1/4-20 x 2" Carriage

Note: Not Used On This Product

$

$

Currently unavailable

8

Homelite JA992930

BOLT - 1/4-20 x 2-1/4" Carriage

Note: Not Used On This Product

$5.49

$

Usually ships in 3-7 days

0

9

Homelite 03380

HANDLE - Upper
(Superseded to 80049)

$

$

Not available

10

Homelite JA994741

HANDLE - Lower

$

$

Not available

11

Homelite JA994274

CABLE TIE

$

$

Not available

12

Homelite 80085

BOLT - 5/16-18 x 1" HHCS

$2.49

$

Usually ships in 3-7 days

0

13

Homelite GP382901

BOLT - 5/16-18 x 1-1/2" CARR. GR5

$

$

Currently unavailable

14

Homelite JA994310

CLAMP - Engine Control Cable

$

$

Currently unavailable

15

Homelite JA445775

NUT - 5/16-18 Flange Lock
(Superseded to UP06674)

$

$

Not available

?16

Homelite JA994739

STUB - Handle Mounting

$

$

Currently unavailable

17

Homelite JA359102

BOLT - Handle Joining

$

$

Not available

18

Homelite GP113589

WINGKNOB - Handle
(Superseded to JA339550)

$

$

Not available

19

Homelite JA443106

NUT - 5/16-18 Hex
(Superseded to 81018)

$

$

Not available

20

Homelite JA994888

COVER - Cable

$

$

Currently unavailable

21

Homelite JA995390

GRIP RESTRAINT

$48.99

$

Usually ships in 3-7 days

0

22

Homelite GP052985

CABLE - Engine/Blade Control

$

$

Currently unavailable

23

Homelite JA444708

NUT - 1/4-20 Lock

$

$

Currently unavailable

24

Homelite GP053087

CONTROL - Throttle w/Cable
(Superseded to GP053098)

$

$

Currently unavailable

25

Homelite JA344544

WASHER - 5/16 Curved

$

$

Not available

26

Homelite 03381

BAIL - Engine/Blade Control

$35.99

$

Usually ships in 3-7 days

0

27

Homelite JA409908

SCREW - 1/4-20 x 5/8" Hex Tap

$3.99

$

Usually ships in 3-7 days

0

28

Homelite JA995540

TRACTION LEVER

Note: Not Used On This Product

$

$

Currently unavailable

29

Homelite JA991075

CABLE - Drive Control

Note: Not Used On This Product

$

$

Not available

30

Homelite JA400116

SCREW - 1/4-20 x 1-1/2" HHCS

Note: Not Used On This Product

$

$

Not available

31

Homelite JA991065

CLAMP - Cable

Note: Not Used On This Product

$

$

Not available

32

Homelite JA994795

PLUG - Cap

$

$

Currently unavailable

33

Homelite 83003

WASHER - 5/16" Lock
(Superseded to UP03791)

$

$

Not available

34

UNKNOWN

$

$

Not available

35

UNKNOWN

$

$

Not available
