HSB 21 P5G (UT-30140-1) - Homelite 21" Superbagger Walk-Behind Mower Mower Parts Diagram

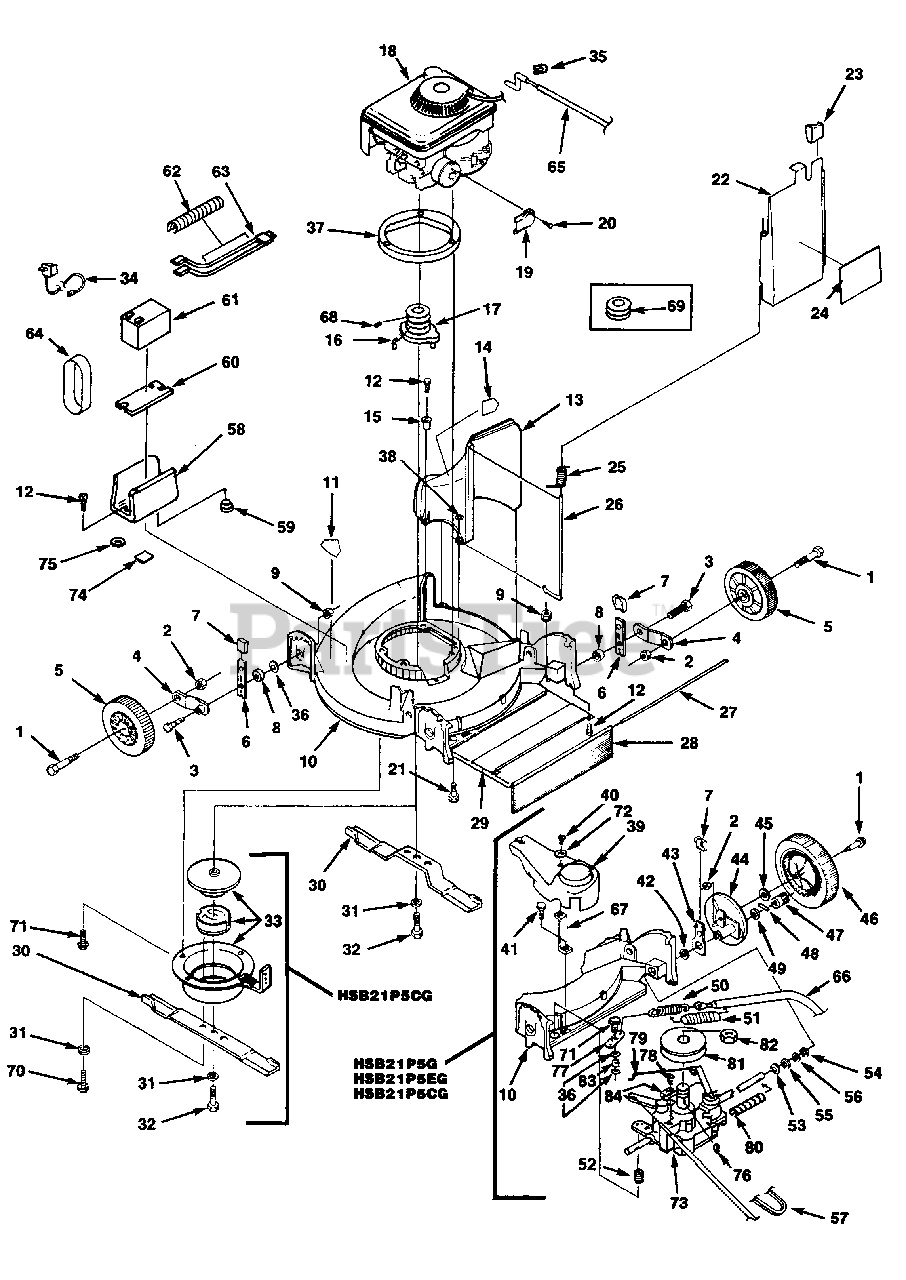

21" Superbagger Walk-Behind Mower

Mower Parts Diagram

  • Title
1

Homelite JA992138

AXLE ASSY.
(Superseded to UP06685)

Note: Includes ref 2

$

$

Currently unavailable

$

$

Not available

3

Homelite JA359180

BOLT-Hgt. adj.

$

$

Not available

4

Homelite JA991287

ARM-Wheel hgt. adj.
(Superseded to GP031455)

$

$

Currently unavailable

5

Homelite JA993958

WHEEL & TIRE
(Superseded to UP06670)

$

$

Not available

6

Homelite JA990087

SPRING-Index (Front)
(Superseded to GP586051)

$38.99

$

Usually ships in 3-7 days

0

7

Homelite JA336623

KNOB-index sprg.
(Superseded to UP06697)

$

$

Not available

8

Homelite JA358362

SPACER-Wheel hgt. adj.

$

$

Not available

9

Homelite JA445775

NUT-Flange 5/16-18
(Superseded to UP06674)

$

$

Not available

10

Homelite A-04109

DECK

Note: Includes ref 11

$

$

Currently unavailable

11

Homelite JA992393

DECAL-Foot pad

$7.49

$

Usually ships in 3-7 days

0

12

Homelite JA408878

SCREW 1/4-20 X 3/4"

$

$

Not available

13

Homelite JA994993

CHUTE-Discharge

Note: Includes refs 14-15

$

$

Currently unavailable

14

Homelite JA992264

DECAL-CPSC

$

$

Not available

15

Homelite JA473183

EYELET-Simpson

$8.99

$

Usually ships in 3-7 days

0

16

Homelite JA463029

KEY-Woodruff

$

$

Not available

17

Homelite JA994767

ADAPTER-Blade

Note: Not used on this product

$

$

Currently unavailable

18

ENGINE

$

$

Not available

19

Homelite JA359256

DEFLECTOR

$

$

Not available

20

Homelite JA408880

SCREW-#8-32 X 3/8"

$

$

Currently unavailable

21

Homelite JA408885

SCREW-3/8-16 X 2 1/4"

$

$

Currently unavailable

22

Homelite JA994820

DOOR-Chute

Note: Includes refs 23-24

$

$

Currently unavailable

23

Homelite JA336623

KNOB-index sprg.
(Superseded to UP06697)

$

$

Not available

24

Homelite JA994091

DECAL-Door (warning)

$

$

Currently unavailable

25

Homelite JA992947

SPRING-Chute door

$

$

Not available

26

Homelite JA359167

PIN-Hinge

$

$

Not available

27

Homelite JA359170

ROD-Drag flap

$

$

Currently unavailable

28

Homelite JA359257

FLAP-Drag

$

$

Currently unavailable

29

Homelite JA994876

COVER-Drag

$

$

Currently unavailable

30

Homelite JA994796

BAR-Cutter
(Superseded to GP589413)

$50.99

$

Usually ships in 3-7 days

0

31

Homelite JA446142

WASHER-Lock 3/8"

$

$

Not available

32

Homelite JA403753

Screw-Hex hd. 3/8-24 x 1 1/4"

$

$

Not available

33

Homelite JA993909

CLUTCH-Blade brake

$1237.99

$

Usually ships in 3-7 days

0

34

Homelite JA992108

BATTERY CHARGER (120V)

Note: Not used on this product

$

$

Not available

Homelite JA375654

BATTERY CHARGER (240V)

Note: Not used on this product

$

$

Currently unavailable

35

Homelite JA990567

STOP-Rope

$

$

Not available

36

Homelite JA453009

WASHER-Flat (5/16")
(Superseded to UP07173)

$

$

Not available

37

Homelite JA994311

RING-Engine

$

$

Not available

38

Homelite JA453023

WASHER-Plain (1/4")
(Superseded to 678013001)

$1.99

$

Usually ships in 3-7 days

0

39

Homelite JA994725

COVER-Drive

$

$

Currently unavailable

40

Homelite JA408879

Screw 1/4-20 x 3/4

$

$

Currently unavailable

41

Homelite JA409704

Screw Hex #10-16

$

$

Not available

42

Homelite JA359141

SPACER-Rear hgt. adj.

$

$

Not available

43

Homelite JA991288

SPRING-index

$

$

Not available

44

Homelite JA994730

SUPPORT-Drive wheel

$

$

Currently unavailable

45

$

$

Not available

46

Homelite JA993975

WHEEL & TIRE

$

$

Not available

47

Homelite JA994742

PINION (L.H.)

$

$

Currently unavailable

Homelite JA994743

PINION (R.H.)

$

$

Currently unavailable

48

Homelite JA994740

Pin-Drive

$

$

Currently unavailable

49

$

$

Not available

50

Homelite JA375748

SPRING-Ext.

$

$

Not available

51

Homelite JA359270

COVER-Spring

$

$

Currently unavailable

52

Homelite JA994858

SPRING-Compression

$

$

Not available

53

Homelite JA458451

RING-Eaton

$2.99

$

Usually ships in 3-7 days

0

54

$

$

Not available

55

$

$

Not available

56

$

$

Not available

57

Homelite JA994736

BELT-Traction
(Superseded to GP589360)

$

$

Not available

58

Homelite JA994195

HOLDER-Battery

Note: Not used on this product

$

$

Currently unavailable

59

Homelite 12096

BUMPER

Note: Not used on this product

$

$

Not available

60

Homelite JA991263

PAD-Battery

Note: Not used on this product

$

$

Currently unavailable

61

Homelite JA991223

BATTERY

Note: Not used on this product

$

$

Currently unavailable

62

Homelite JA991992

COVER-Harness

Note: Not used on this product

$

$

Currently unavailable

63

Homelite JA991224

LEAD

Note: Not used on this product

$

$

Currently unavailable

64

Homelite JA991289

BAND-Rubber

Note: Not used on this product

$

$

Not available

65

Homelite JA994849

ENGINE-Control

Note: Not used on this product

$

$

Currently unavailable

Homelite 04084

ENGINE-Control

$

$

Currently unavailable

66

Homelite JA991075

CABLE-Traction control

Note: Not used on this product

$

$

Not available

67

Homelite 03735

SUPPORT-Cover

$

$

Not available

68

Homelite JA422541

SCREW-Set

Note: Not used on this product

$4.99

$

Usually ships in 3-7 days

0

69

Homelite JA993669

PULLEY-Drive

Note: Not used on this product

$

$

Currently unavailable

70

Homelite JA401208

SCREW-Hex hd. 3/8-16 x 1"

Note: Not used on this product

$

$

Currently unavailable

71

Homelite JA409912

SCREW-Hex hd. 5/16-18

$6.99

$

Usually ships in 3-7 days

0

72

Homelite JA455024

WASHER-Plain

$

$

Currently unavailable

73

Homelite JA994737

GEAR REDUCER (3 Speed)

$

$

Currently unavailable

74

Homelite JA993865

SPACER-Battery holder

Note: Not used on this product

$

$

Currently unavailable

75

Homelite JA358362

SPACER

Note: Not used on this product

$

$

Not available

76

Homelite JA463003

KEY-Woodruff

$

$

Not available

77

Homelite JA994883

BELL CRANK

$

$

Currently unavailable

78

Homelite JA994859

SCREW-5/16-18 x 5/8"

$12.99

$

Usually ships in 3-7 days

0

79

Homelite JA994882

LINKAGE-Shift

$

$

Currently unavailable

80

Homelite JA993880

COVER-Drive shaft

$

$

Currently unavailable

81

Homelite JA994755

PULLEY-Gear

$

$

Currently unavailable

82

Homelite JA994745

NUT-Metric (M10)

$

$

Not available

83

Homelite JA993875

SPACER-Bellcrank

$

$

Currently unavailable

84

Homelite JA994811

CLAMP-Cable

$

$

Currently unavailable
