HSB 21 P5EI (UT-30517-B) - Homelite 21" Superbagger Walk-Behind Mower Grass Catcher Parts Diagram

21" Superbagger Walk-Behind Mower

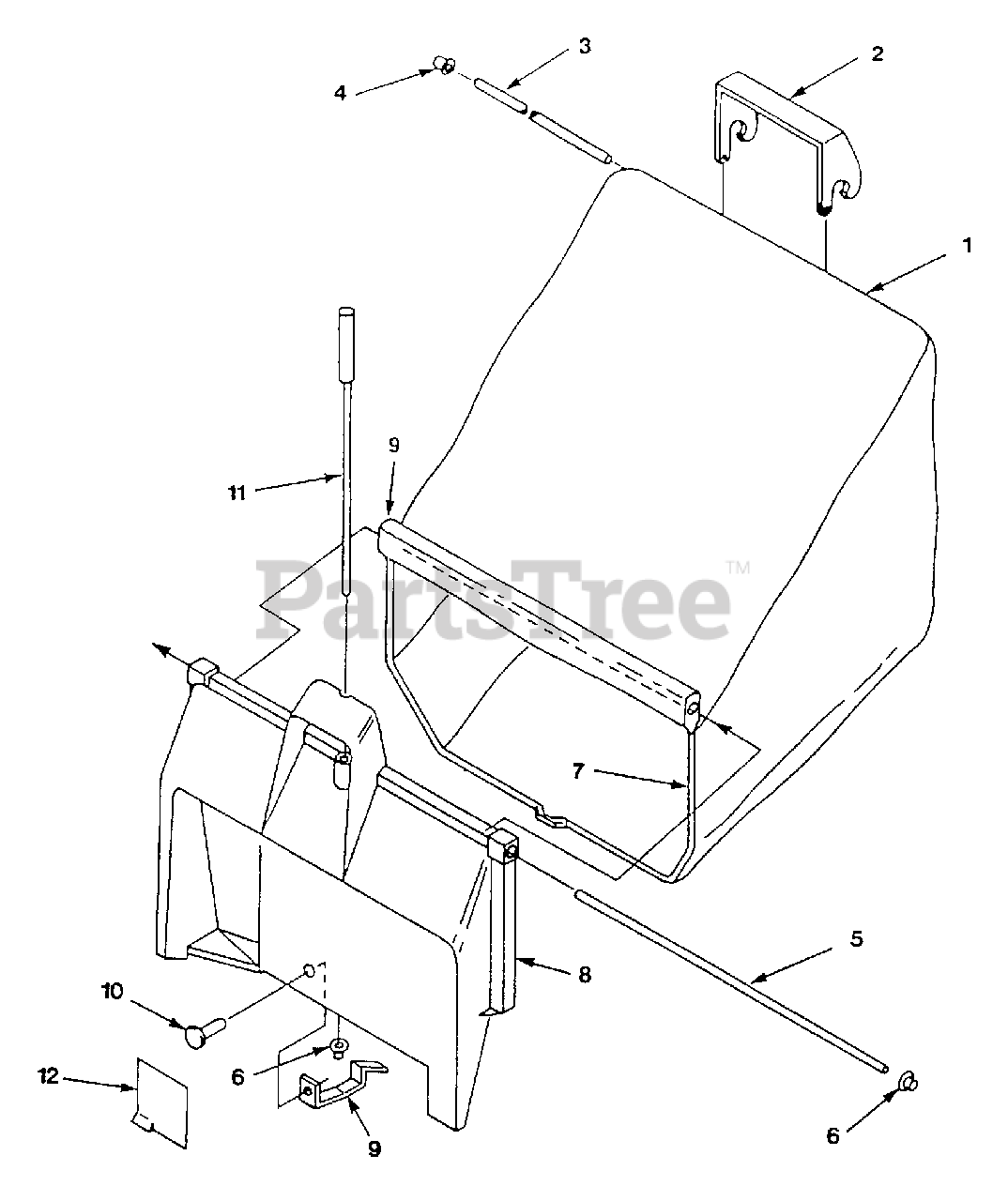

Grass Catcher Parts Diagram

  • Title

Homelite GP161306

Kit - grass bag & adapter
(Superseded to JA518989)

Note: Includes items 1-12

$

$

Currently unavailable

1

Homelite JA994165

Bag - grass catcher

$

$

Currently unavailable

2

Homelite JA991786

Handle - bag

$

$

Not available

3

Homelite JA359169

Rod - handle

$

$

Not available

4

Homelite JA359179

Retainer - handle rod

$

$

Currently unavailable

5

Homelite JA359168

Rod - bag hinge

$

$

Currently unavailable

6

Homelite JA445515

Nut - Pal

$

$

Currently unavailable

7

Homelite JA336651

Frame - bag, unshaped

$

$

Not available

8

Homelite GP115535

Adapter - bag
(Superseded to JA991789)

Note: Includes 6, 9, 10, 11 & 12

$

$

Currently unavailable

9

Homelite JA359259

Latch - bag release

$

$

Currently unavailable

10

Homelite 85163

Rivet - pop

$

$

Not available

11

Homelite JA991788

Rod - latch release

$

$

Not available

12

Homelite JA375660

Decal - heat deflector

$

$

Currently unavailable
