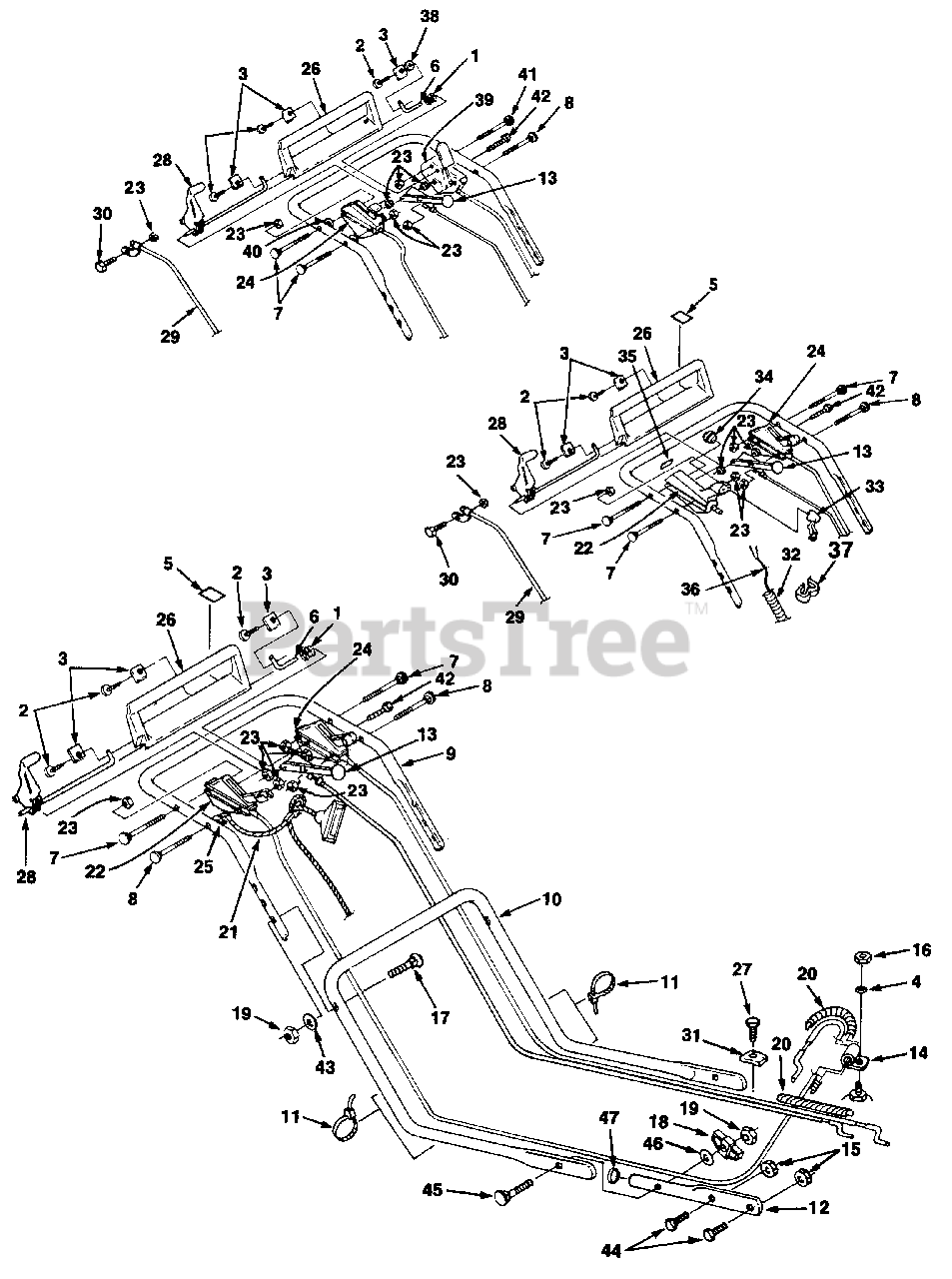

HSB 21 P5EG (UT-30162) - Homelite 21" Superbagger Walk-Behind Mower Handles & Controls Parts Diagram

21" Superbagger Walk-Behind Mower

Handles & Controls Parts Diagram

  • Title
1

Homelite JA990141

SPRING-Compression

$

$

Not available

2

Homelite JA408881

SCREW-1/4-10 x 5/8"

$

$

Not available

3

Homelite JA992570

CLAMP-Pivot shaft

$

$

Currently unavailable

4

Homelite JA446128

WASHER-Lock 1/4"
(Superseded to UP03409)

$8.49

$

Usually ships in 3-7 days

0

5

Homelite JA994751

DECAL-Warning

$

$

Currently unavailable

6

Homelite JA992560

SHAFT-Pivot

$

$

Currently unavailable

7

Homelite JA992920

BOLT-Sq. nk.

$

$

Currently unavailable

8

Homelite JA992930

BOLT-Sq. nk.

$5.49

$

Usually ships in 3-7 days

0

9

Homelite JA994779

HANDLE-Upper

$

$

Currently unavailable

10

Homelite JA994741

HANDLE-Lower

$

$

Not available

11

Homelite JA994274

CABLE-Tie

$

$

Not available

12

Homelite JA994739

STUB-Handle mtg.

$

$

Currently unavailable

13

Homelite JA994746

SHIFT-Gear

$

$

Currently unavailable

$

$

Currently unavailable

15

Homelite JA445775

NUT-Flange 5/16-18
(Superseded to UP06674)

$

$

Not available

16

Homelite JA443102

NUT-Hex 1/4-20
(Superseded to JA993730)

$

$

Not available

17

Homelite JA441677

BOLT-5/16-18 X 1 1/2'

$

$

Currently unavailable

18

Homelite JA339550

KNOB-Handle

$

$

Not available

19

Homelite JA443106

NUT-Hex 5/16-18
(Superseded to 81018)

$

$

Not available

20

Homelite JA994888

COVER-Cable

$

$

Currently unavailable

21

Homelite JA995390

GRIP-Restraint

Note: Not used on this product

$48.99

$

Usually ships in 3-7 days

0

22

Homelite JA994849

ENGINE CONTROL

$

$

Currently unavailable

23

Homelite JA444708

NUT-Lock 1/4-20

$

$

Currently unavailable

24

Homelite JA994990

CONTROL-Throttle

$

$

Currently unavailable

25

Homelite JA-344544

WASHER

Note: Not used on this product

$

$

Not available

26

Homelite JA993190

BAIL-Brake control

$

$

Currently unavailable

27

Homelite JA409908

SCREW-Hex 1/4-20 X 5/8"

$3.99

$

Usually ships in 3-7 days

0

28

Homelite JA995540

TRACTION LEVER ASSY

$

$

Currently unavailable

29

Homelite JA991075

CABLE-Traction control

$

$

Not available

30

Homelite JA400116

SCREW-1/4-20 X 1 1/2"

$

$

Not available

$

$

Not available

32

Homelite JA990626

COVER-Control cable

$

$

Not available

33

Homelite JA990605

HOUSING-Switch

$

$

Not available

34

$

$

Currently unavailable

$

$

Currently unavailable

36

Homelite JA991226

HARNESS-Wiring

$

$

Not available

37

Homelite JA359289

CLIP-Cover

$30.99

$

Usually ships in 3-7 days

0

38

Homelite JA453023

WASHER-Plain 1/4"
(Superseded to 678013001)

Note: Not used on this product

$1.99

$

Usually ships in 3-7 days

0

39

Homelite JA991353

CONTROL-BBC

Note: Not used on this product

$

$

Currently unavailable

40

Homelite JA991469

SPACER

Note: Not used on this product

$

$

Currently unavailable

41

Homelite JA991611

BOLT-Sq. nk.

Note: Not used on this product

$5.99

$

Usually ships in 3-7 days

0

42

Homelite JA400120

SCREW
(Superseded to 80295)

$4.99

$

Usually ships in 3-7 days

0

43

Homelite JA446136

WASHER-Lock 5/16-18
(Superseded to UP03791)

$

$

Not available

44

Homelite JA400188

BOLT-Hex 5/16-18 x 1
(Superseded to 80085)

$2.49

$

Usually ships in 3-7 days

0

45

Homelite JA359102

BOLT-Handle joining

$

$

Not available

46

Homelite JA453009

WASHER-Flat 5/16
(Superseded to UP07173)

$

$

Not available

47

$

$

Currently unavailable
