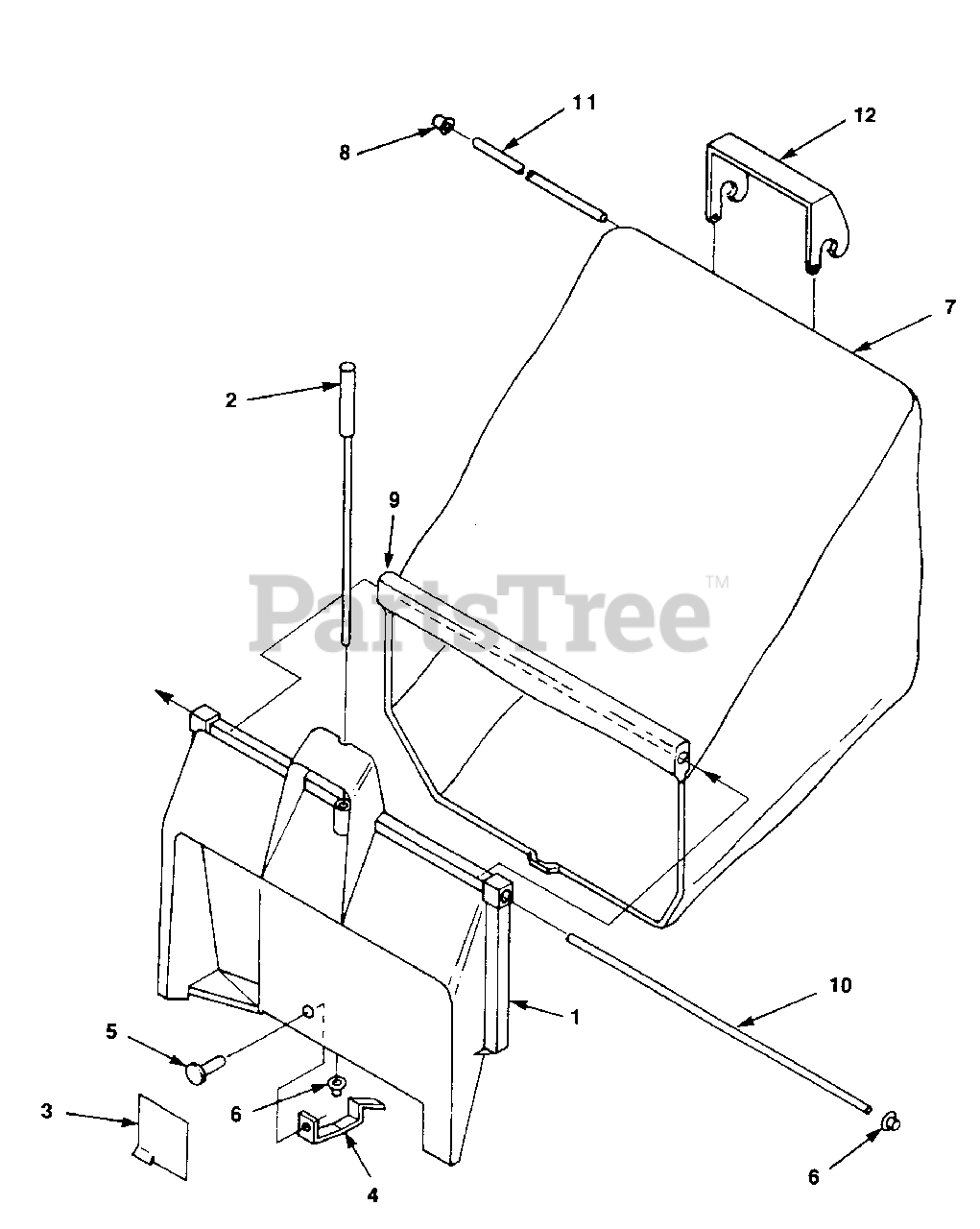

HSB 21 P5 (UT-30516) - Homelite 21" Superbagger Walk-Behind Mower Grass Catcher Parts Diagram

21" Superbagger Walk-Behind Mower

Grass Catcher Parts Diagram

  • Title

Homelite JA518989

BAG ASSEMBLY

$

$

Currently unavailable

1

Homelite JA991789

ADAPTER ASSY.

Note: Includes refs 2-8

$

$

Currently unavailable

2

Homelite JA991788

ROD - Latch release

$

$

Not available

3

Homelite JA375660

DEFLECTOR

$

$

Currently unavailable

$

$

Currently unavailable

5

Homelite 85163

RIVET 5/32 x 3/8"

$

$

Not available

6

Homelite JA445515

NUT - Pal

$

$

Currently unavailable

7

Homelite JA518759

BAG - Replacement

$

$

Currently unavailable

8

Homelite JA359179

RETAINER - Bag rod

$

$

Currently unavailable

9

Homelite JA336651

ROD - Bag support

$

$

Not available

10

Homelite JA359168

ROD - Bag hinge

$

$

Currently unavailable

11

Homelite JA359169

ROD - Bag

$

$

Not available

12

Homelite JA991786

HANDLE-Bag

$

$

Not available
