HSB 21 P5 (UT-30516-A) - Homelite 21" Superbagger Walk-Behind Mower Mower Parts Diagram

21" Superbagger Walk-Behind Mower

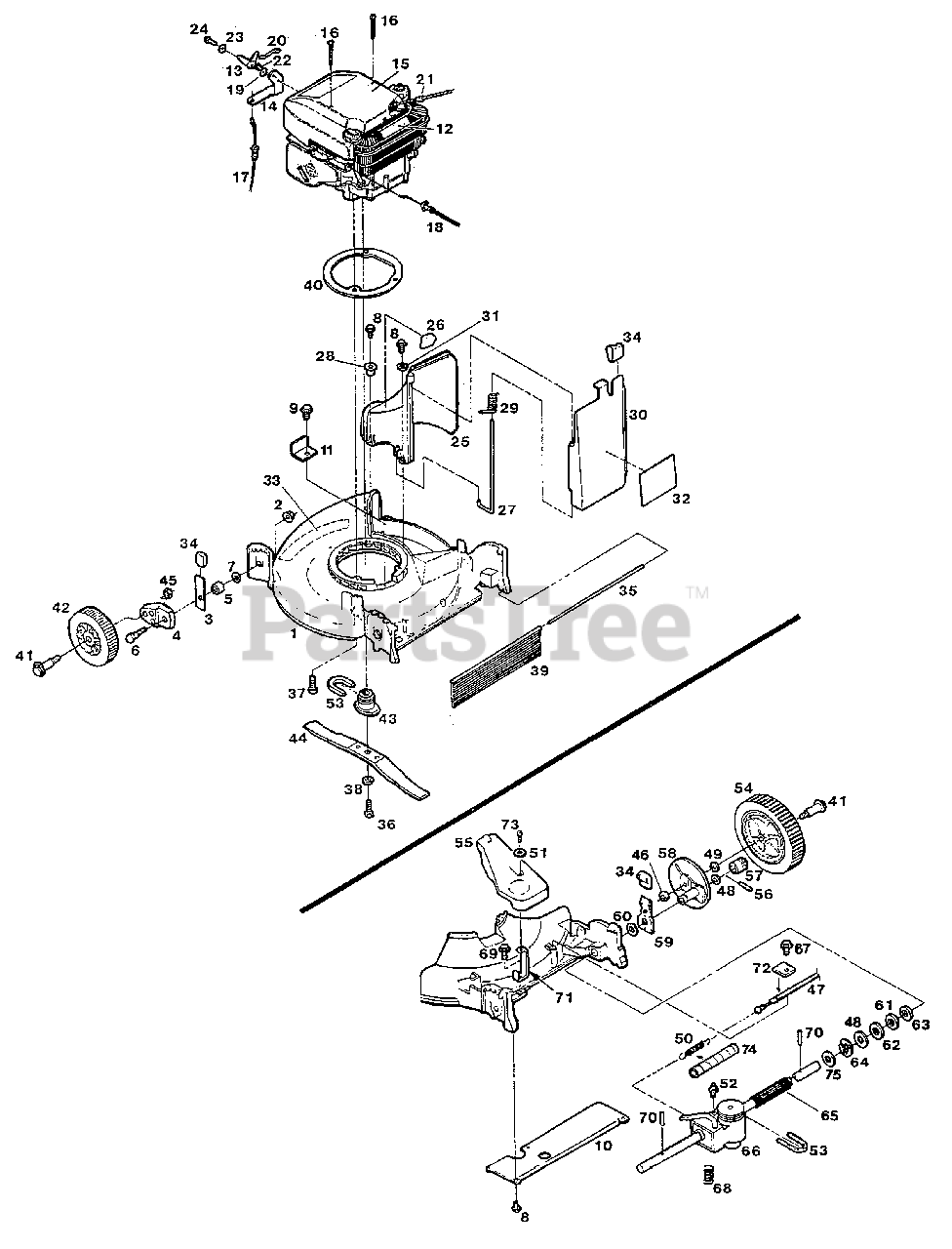

Mower Parts Diagram

  • Title

1

Homelite GP397055

DECK - 21" Red PP

$

$

Currently unavailable

2

Homelite JA445775

NUT - 5/16" Flg. Lock
(Superseded to UP06674)

$

$

Not available

3

Homelite JA990087

SETTING LEVER ASSY
(Superseded to GP586051)

$38.99

$

Usually ships in 3-7 days

0

4

Homelite GP031455

WHEEL ARM - Black

$

$

Currently unavailable

5

Homelite JA358362

SPACER - WHEEL

$

$

Not available

6

Homelite GP-38291-2

BOLT - Height Adjuster

$

$

Currently unavailable

7

Homelite JA453009

WASHER - 5/16" Flat
(Superseded to UP07173)

$

$

Not available

8

Homelite JA408878

SCREW - 1/4-20 x 3/4" Hex Tap

$

$

Not available

9

Homelite JA409907

SCREW - 1/4-20 x 1/2" Hex Tap

Note: Not used on this product

$

$

Not available

10

Homelite GP116776

COVER - Rear Black

$

$

Currently unavailable

11

Homelite GP094989

COVER - Belt Opening Black

Note: Not used on this product

$

$

Currently unavailable

12

Homelite 04443

DECAL - Blade Warning BI/FR

$10.99

$

Usually ships in 3-7 days

0

13

Homelite GP023682

BELLCRANK

$

$

Currently unavailable

14

Homelite GP023683

BRACKET - Throttle

$

$

Currently unavailable

15

Homelite GP036938

COVER ENGINE

$

$

Currently unavailable

16

Homelite GP036731

SCREW - #8-32 x 1 1/4" Phil Tap

$

$

Currently unavailable

17

Homelite GP052977

CONTROL - Throttle w/Cable

$

$

Not available

18

Homelite GP052985

CABLE - Engine/Blade Control

$

$

Currently unavailable

19

Homelite GP094250

SPACER - Stepped

$

$

Currently unavailable

20

Homelite GP094898

THROTTLE LINK

$

$

Not available

21

Homelite JA990567

ROPE STOP

$

$

Not available

22

Homelite GP157784

SCREW - #10-24 x 3/8" Hex Tap

$

$

Currently unavailable

23

Homelite GP159467

WASHER - 3/16" flat

$

$

Currently unavailable

24

Homelite GP380543

SCREW - #10-24 x 3/4" Hex Tap

$

$

Currently unavailable

25

Homelite 01586

DISCHARGE CHUTE
(Superseded to JA994993)

$

$

Currently unavailable

26

Homelite JA992264

DECAL - CPSC DANGER

$

$

Not available

27

Homelite JA359167

HINGE PIN

$

$

Not available

28

Homelite JA473183

EYELET

$8.99

$

Usually ships in 3-7 days

0

29

Homelite JA992947

SPRING - Door Chute

$

$

Not available

30

Homelite JA994881

DOOR - Chute

$

$

Currently unavailable

31

Homelite GP615690

WASHER - 1/4" Flat

$

$

Not available

32

Homelite JA994091

DECAL - Door Warning

$

$

Currently unavailable

33

Homelite JA995065

DECAL - Logo 21"

$

$

Currently unavailable

34

Homelite JA336623

PLASTIC TIP - Height Adjuster
(Superseded to UP06697)

$

$

Not available

35

Homelite JA359170

ROD - Trailing Shield

$

$

Currently unavailable

36

Homelite GP-38290-2

BOLT - 3/8-24 x 1-1/4" HHCS GR8

$

$

Currently unavailable

37

Homelite GP382892

BOLT - 3/8-16 x 2-1/4" Sems

$

$

Not available

38

Homelite GP156919

WASHER - 3/8 Lock H.D.

$

$

Currently unavailable

39

Homelite JA359257

TRAILING SHIELD - Plastic

$

$

Currently unavailable

40

Homelite JA994311

ENGINE RING BLACK

$

$

Not available

41

Homelite GP382889

WHEEL BOLT

$

$

Not available

42

Homelite JA993958

WHEEL - 8"
(Superseded to UP06670)

$

$

Not available

43

Homelite GP095214

BLADE ADAPTER - 7/8" DIA. PP

$

$

Not available

44

Homelite JA994796

BLADE - 21"
(Superseded to GP589413)

$50.99

$

Usually ships in 3-7 days

0

45

Homelite GP715391

NUT - 3/8-16 Hex

$

$

Currently unavailable

46

Homelite GP156406

NUT 3/8-16 Flg Lock

$

$

Not available

47

Homelite JA991075

CABLE - Drive Control

$

$

Not available

48

Homelite JA351077

WASHER - 5/8" x 22 GA. Hard

$

$

Not available

49

Homelite JA359500

WASHER - 3/8" Flat

$

$

Not available

50

Homelite JA375748

SPRING - Extension

$

$

Not available

51

Homelite GP151555

WASHER - 1/4" Flat

$

$

Currently unavailable

52

Homelite JA990415

VENT - Transmission

$

$

Not available

53

Homelite JA993971

V-BELT

$

$

Currently unavailable

54

Homelite JA993975

WHEEL - 8" Power Propelled

$

$

Not available

55

Homelite JA994725

COVER - Drive

$

$

Currently unavailable

56

Homelite JA994740

DRIVE PIN

$

$

Currently unavailable

57

Homelite JA994800

PINION R.H.

$

$

Not available

Homelite JA994801

PINION L.H.

$

$

Currently unavailable

58

Homelite GP023712

DRIVE WHEEL SUPPORT Assy- Black

$

$

Currently unavailable

59

Homelite JA991288

SETTING LEVER - Black

$

$

Not available

60

Homelite JA359141

SPACER - Wheel Rear

$

$

Not available

61

Homelite JA328147

WASHER - 5/8" x 22 GA. Hard

$

$

Not available

62

Homelite JA353406

WASHER - 5/8" x 14 GA. Flat

$

$

Not available

63

Homelite JA454037

WASHER - 5/8" Wave

$

$

Not available

64

Homelite JA458451

E-RING - 5/8"

$2.99

$

Usually ships in 3-7 days

0

65

Homelite GP115445

COVER - Drive Shaft - 7 1/4"

$

$

Currently unavailable

66

Homelite GP300014

TRANSMISSION - 1 spd

$

$

Currently unavailable

67

Homelite JA409907

SCREW - 1/4-20 x 1/2" Hex Tap

$

$

Not available

68

Homelite JA994858

SPRING - Compression

$

$

Not available

69

Homelite JA409704

SCREW - #10-16 Hex Tap

$

$

Not available

70

Homelite JA461361

ROLL PIN - 1/8 x 7/8

$

$

Not available

71

Homelite 03735

BRACKET - Belt Cover Black

$

$

Not available

72

Homelite JA991065

CLAMP - Drive Control Cable

$

$

Not available

73

Homelite JA408879

SCREW 1/4-20 x 3/4" Phill Tap

$

$

Currently unavailable

74

Homelite JA359270

COVER - Spring

$

$

Currently unavailable

75

Homelite JA990446

WASHER - Thrust

$

$

Not available
