HS928 WAS/A (SZAS) - Honda 28" Snow Blower, Made in Japan (SN: SZAS-1130001 - SZAS-9999999) RIGHT TRANSMISSION CASE (2) Parts Diagram

28" Snow Blower, Made in Japan

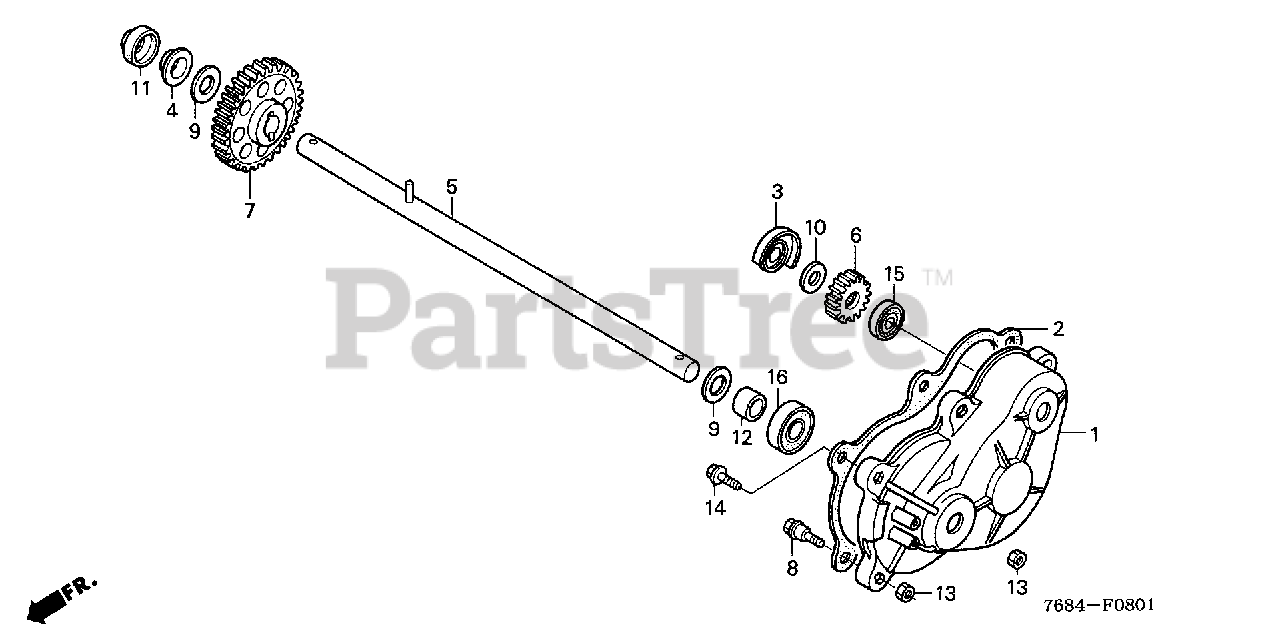

RIGHT TRANSMISSION CASE (2) Parts Diagram

  • Title

1

Honda 21111-767-C10

CASE, R. TRANSMISSION

$255.99

$

Usually ships in 3-6 days

0

2

Honda 21115-767-C30

GASKET, TRANSMISSION CASE

$17.99

$

In Stock, only 4 left!

0

3

Honda 23234-767-C10

BUSH, CROSS SHAFT

$13.99

$

Usually ships in 3-6 days

0

4

Honda 23252-767-003

BUSH, FINAL SHAFT

$8.49

$

In Stock, Qty 14

0

5

Honda 23370-767-C31

SEE PART DETAILS - PRI; SHAFT, WHEEL

$128.99

$

In Stock, only 1 left!

0

6

Honda 23421-767-C30

GEAR, DRIVE (11T)

$35.99

$

Usually ships in 3-6 days

0

7

Honda 23431-767-C30

GEAR, DRIVEN (66T)

$238.99

$

Usually ships in 3-6 days

0

8

Honda 90004-732-000

BOLT, TRANSMISSION SETTING

$4.99

$

Usually ships in 3-6 days

0

9

Honda 90525-750-000

WASHER, DIFFERENTIAL GEAR

$5.99

$

In Stock, Qty 12

0

10

Honda 90599-767-C10

WASHER, THRUST (12X23X2)

$3.99

$

In Stock, only 1 left!

0

11

Honda 91251-767-C31

DUST SEAL (20X34X7.5)

$6.99

$

In Stock, Qty 11

0

12

Honda 91551-767-C10

COLLAR, WHEEL SHAFT

$6.49

$

Usually ships in 3-6 days

0

13

Honda 94001-06000-0S

SEE PART DETAILS - SUP; NUT, HEX. (6MM)
(Superseded to 94001-06200-0S)

$1.99

$

In Stock, Qty 10

0

13

Honda 94001-06200-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM)

$1.99

$

In Stock, Qty 10

0

14

Honda 95701-06018-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X18)

$2.49

$

In Stock, Qty 5

0

15

Honda 96150-60020-10

BEARING, RADIAL BALL (6002UU)

$17.99

$

In Stock, Qty 20+

0

16

Honda 96150-60040-10

BEARING, RADIAL BALL (6004UU)

$25.99

$

In Stock, Qty 7

0
