HS928 WAS/A (SZAS) - Honda 28" Snow Blower, Made in Japan (SN: SZAS-1130001 - SZAS-9999999) AUGER TRANSMISSION Parts Diagram

28" Snow Blower, Made in Japan

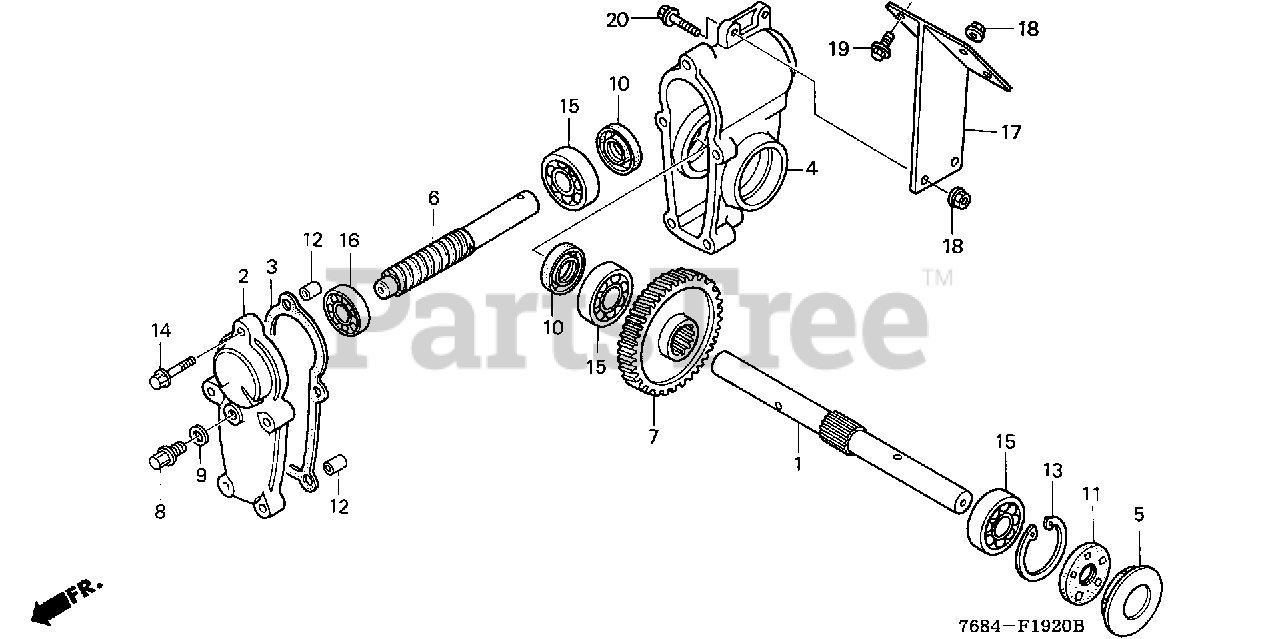

AUGER TRANSMISSION Parts Diagram

  • Title

1

Honda 23377-767-030

SHAFT, AUGER

$150.99

$

In Stock, only 2 left!

0

2

Honda 71211-743-000

COVER, AUGER TRANSMISSION

$109.99

$

Usually ships in 3-6 days

0

3

Honda 71212-743-640

GASKET, AUGER TRANSMISSION

$6.99

$

In Stock, Qty 6

0

4

Honda 71221-743-020

CASE, AUGER TRANSMISSION

$137.99

$

Usually ships in 3-6 days

0

5

Honda 71222-743-010

CAP, AUGER CASE

$9.49

$

In Stock, Qty 8

0

6

Honda 73251-767-000

GEAR, DRIVE

$114.99

$

Usually ships in 3-6 days

0

7

Honda 73551-767-000

GEAR, DRIVEN (55T)

$127.99

$

Usually ships in 3-6 days

0

8

Honda 90131-ZE1-000

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG

$3.49

$

In Stock, only 2 left!

0

9

Honda 90601-ZE1-000

WASHER, DRAIN PLUG (10.2MM)

$1.49

$

In Stock, Qty 20+

0

10

Honda 91201-732-003

OIL SEAL (20X32X7)

$12.99

$

In Stock, only 2 left!

0

11

Honda 91201-743-000

OIL SEAL (20X42X8)

$10.99

$

In Stock, Qty 6

0

12

Honda 94301-08140

PIN, DOWEL (8X14)

$2.99

$

In Stock, Qty 8

0

13

Honda 94520-42000

CIRCLIP (INNER) (42MM)

$2.99

$

Usually ships in 3-6 days

0

14

Honda 95801-06032-00

BOLT, FLANGE (6X32)

$1.49

$

Usually ships in 3-6 days

0

15

Honda 96100-60040-00

BEARING, RADIAL BALL (6004)

$21.99

$

In Stock, only 1 left!

0

16

Honda 96100-62020-00

BEARING, RADIAL BALL (6202)

$12.99

$

In Stock, only 3 left!

0

17

Honda 76714-V03-000

BRACKET, AUGER HOUSING
(Superseded to 76714-V21-W00)

$77.99

$

Usually ships in 3-6 days

0

18

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

19

Honda 95701-08014-00

BOLT, FLANGE (8X14)

$2.49

$

In Stock, Qty 20+

0

20

Honda 95701-08025-00

BOLT, FLANGE (8X25)

$2.49

$

In Stock, only 3 left!

0
