HS928 WA (SZAS) - Honda 28" Snow Blower, Made in Japan (SN: SZAS-1100001 - SZAS-1129999) TOOLS Parts Diagram

28" Snow Blower, Made in Japan

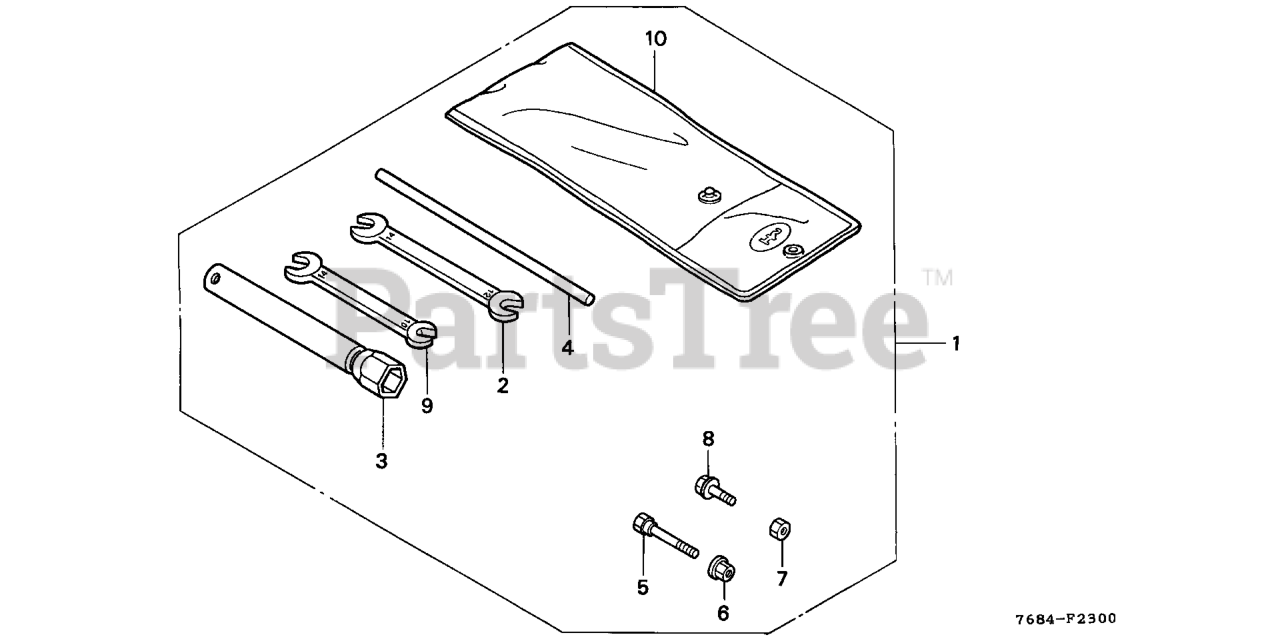

TOOLS Parts Diagram

  • Title

1

Honda 89000-767-000

TOOL KIT

Note: Use up to Frame SN 1116979.

$

$

Currently unavailable

1

Honda 89000-767-010

TOOL KIT (NOT AVAILABLE)

Note: Use from Frame SN 1116980.

$

$

Not available

2

Honda 89216-KB7-000

SPANNER (12X14)

$13.99

$

Usually ships in 3-6 days

0

3

Honda 89216-809-000

WRENCH, SPARK PLUG (NOT AVAILABLE)

$8.99

$

Usually ships in 3-6 days

0

4

Honda 89219-805-000

HANDLE, BOX WRENCH (NOT AVAILABLE) (Honda Code 0066654).

$3.99

$

Usually ships in 3-6 days

0

5

Honda 90102-732-010

SEE PART DETAILS - PRI; BOLT, LOCK

$6.49

$

In Stock, Qty 6

0

6

Honda 90114-SA0-000

SEE PART DETAILS - PRI; NUT, SELF-LOCK (6MM) (Honda Code 1410182).

Note: Use from Frame SN 1116980. Use up to Frame SN 1116979.

$4.49

$

In Stock, Qty 20+

0

7

Honda 94001-06000-0S

SEE PART DETAILS - SUP; NUT, HEX. (6MM) (Honda Code 0156067).
(Superseded to 94001-06200-0S)

Note: Use up to Frame SN 1116979.

$1.99

$

In Stock, Qty 20+

0

7

Honda 94001-06200-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM) (Honda Code 2043255).

Note: Use up to Frame SN 1116979.

$1.99

$

In Stock, Qty 20+

0

8

Honda 95701-06016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) Use from Engine SN 2056820.

Note: Use up to Frame SN 1116979.

$2.49

$

Usually ships in 3-6 days

0

8

Honda 92101-06016-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X16)

Note: Use from Frame SN 1116980.

$1.99

$

In Stock, Qty 20+

0

9

Honda 99001-10140

WRENCH (10X14) (OPEN END)

$4.99

$

Usually ships in 3-6 days

0

10

Honda 89101-ME5-670

SEE PART DETAILS - PRI; BAG, TOOL (Honda Code 1669480).

$8.99

$

In Stock, only 1 left!

0
