HS928 WA (SZAS) - Honda 28" Snow Blower, Made in Japan (SN: SZAS-1100001 - SZAS-1129999) TENSIONER ARM Parts Diagram

28" Snow Blower, Made in Japan

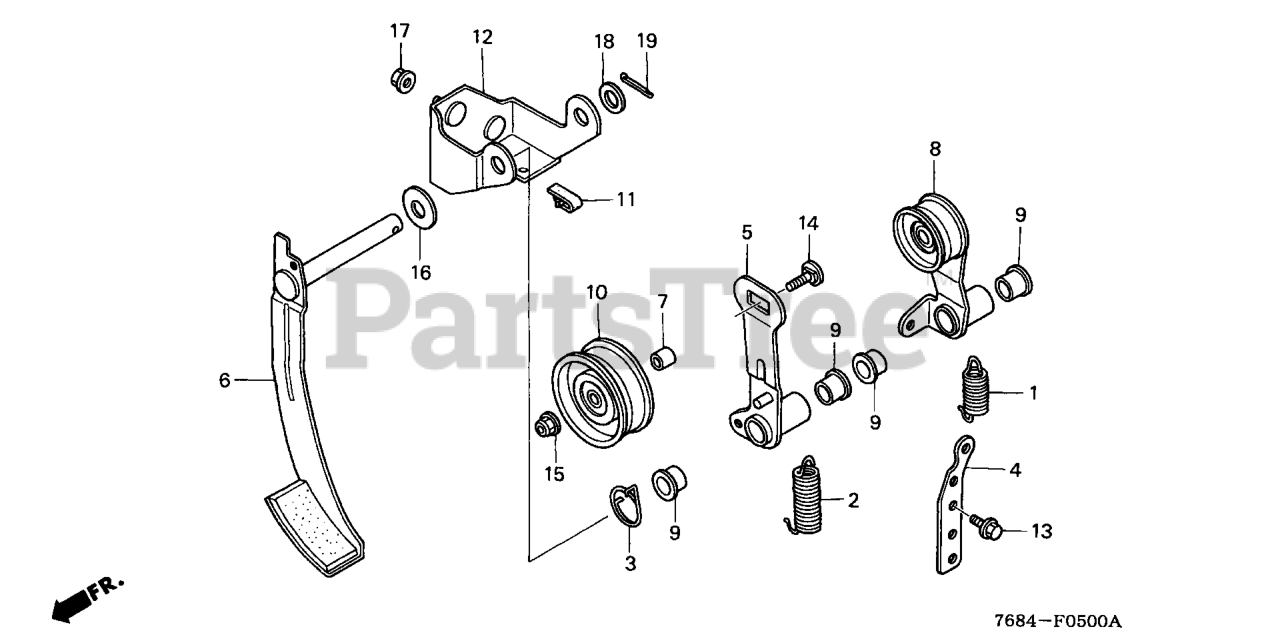

TENSIONER ARM Parts Diagram

  • Title

1

Honda 22437-767-000

SPRING, WHEEL TENSION RETURN

$7.49

$

In Stock, only 3 left!

0

2

Honda 22438-738-A00

SPRING, AUGER TENSIONER RETURN

$8.99

$

In Stock, only 1 left!

0

3

Honda 22439-736-A00

SPRING, BRAKE ARM

$3.99

$

In Stock, only 1 left!

0

4

Honda 22455-767-000

STAY, TENSIONER SPRING

$8.99

$

Usually ships in 3-6 days

0

5

Honda 22511-738-A00

ARM, AUGER TENSIONER

$30.99

$

Usually ships in 3-6 days

0

6

Honda 22512-V41-W00

SEE PART DETAILS - PRI; ARM, AUGER BRAKE

$27.99

$

In Stock, only 1 left!

0

7

Honda 22514-736-000

COLLAR, ROLLER

$4.99

$

Usually ships in 3-6 days

0

8

Honda 22520-767-000

ARM, WHEEL TENSIONER

$81.99

$

Usually ships in 3-6 days

0

9

Honda 22524-730-000

BUSH, TENSIONER ARM

$9.99

$

Usually ships in 3-6 days

0

10

Honda 22530-736-A00

ROLLER

$39.99

$

In Stock, only 1 left!

0

11

Honda 50319-736-A00

RUBBER, STOPPER

$3.99

$

Usually ships in 3-6 days

0

12

Honda 51176-767-000

BRACKET, TENSION ARM

$21.99

$

Usually ships in 3-6 days

0

13

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

14

Honda 90101-736-000

BOLT, ROLLER

$5.99

$

Usually ships in 3-6 days

0

15

Honda 90115-659-003

NUT, SELF-LOCK (8MM) (Honda Code 0599480).

$0.99

$

In Stock, Qty 20+

0

16

Honda 90501-736-A00

WASHER, BRAKE ARM

$3.99

$

Usually ships in 3-6 days

0

17

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

Usually ships in 3-6 days

0

18

Honda 94102-12800

SEE PART DETAILS - PRI; WASHER, PLAIN (12MM)

$

$

Not available

19

Honda 94201-30180

PIN, COTTER (3.0X18)

$1.49

$

In Stock, Qty 20+

0
