HS928 WA (SZAS) - Honda 28" Snow Blower, Made in Japan (SN: SZAS-1100001 - SZAS-1129999) DRIVEN PULLEY Parts Diagram

28" Snow Blower, Made in Japan

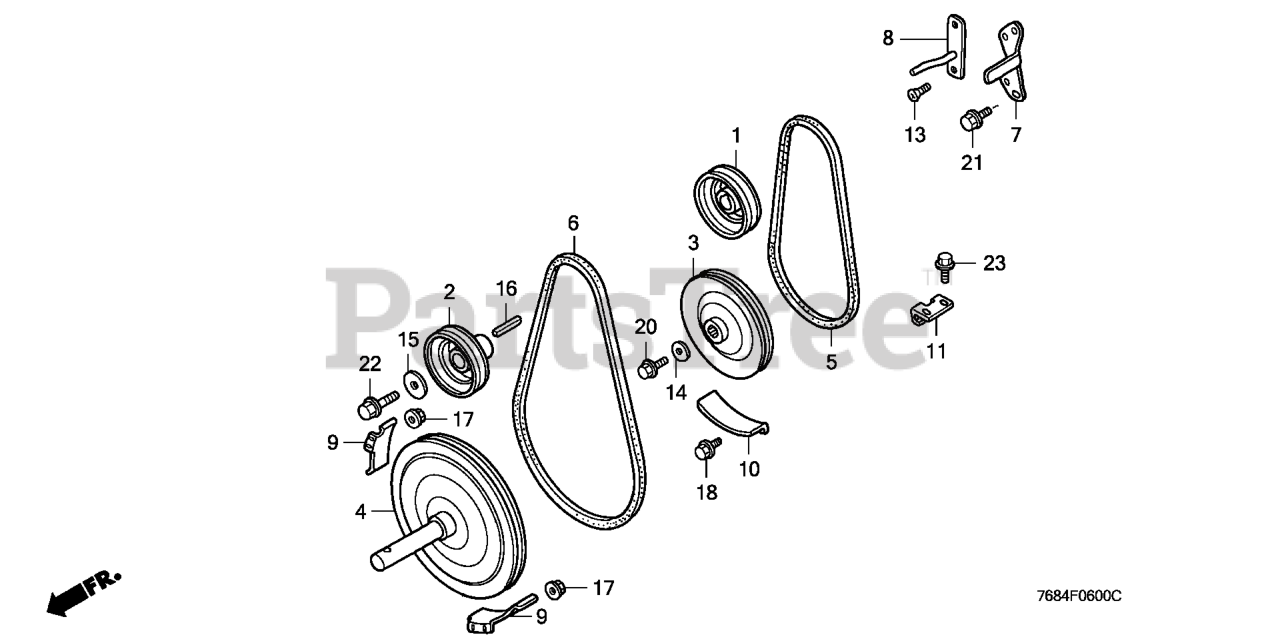

DRIVEN PULLEY Parts Diagram

  • Title

1

Honda 22411-738-000

PULLEY, WHEEL DRIVEN

$52.99

$

In Stock, only 1 left!

0

2

Honda 22412-738-700

PULLEY, AUGER DRIVE

$52.99

$

In Stock, only 1 left!

0

3

Honda 22423-767-000

PULLEY, WHEEL DRIVEN (133MM)

$74.99

$

In Stock, only 1 left!

0

4

Honda 22424-768-020

SEE PART DETAILS - PRI; PULLEY, AUGER DRIVEN (198MM)

$94.99

$

In Stock, only 3 left!

0

5

Honda 22431-768-003

SEE PART DETAILS - PRI; V-BELT (SA-29)

$20.99

$

In Stock, Qty 6

0

6

Honda 22432-V03-000

SEE PART DETAILS - PRI; V-BELT (SB-35)

$40.99

$

In Stock, Qty 20+

0

7

Honda 22441-767-000

STOPPER, R. BELT (L. SIDE)

$18.99

$

Usually ships in 3-6 days

0

8

Honda 22442-738-A00

STOPPER, L. BELT (R. SIDE)

$36.99

$

Usually ships in 3-6 days

0

9

Honda 22444-768-000

STOPPER, AUGER BELT

$14.99

$

Usually ships in 3-6 days

0

10

Honda 22451-767-000

PROTECTOR, BELT (WHEEL)

$7.99

$

Usually ships in 3-6 days

0

11

Honda 22453-767-C30

GUIDE, BELT

$23.99

$

Usually ships in 3-6 days

0

13

Honda 75556-605-010

BOLT, DOOR LOCK STRIKER

$8.49

$

Usually ships in 3-6 days

0

14

Honda 90417-115-000

WASHER, CAMSHAFT SIDE

$3.99

$

Usually ships in 3-6 days

0

15

Honda 90534-706-010

SEE PART DETAILS - PRI; WASHER, LOCK (8MM) (Honda Code 0177998).

$6.99

$

Usually ships in 3-6 days

0

16

Honda 90741-889-810

SEE PART DETAILS - PRI; KEY (7X7X33) (Honda Code 1064039).

$9.99

$

Usually ships in 3-6 days

0

17

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

18

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$2.49

$

In Stock, Qty 20+

0

20

Honda 95701-06016-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) (Honda Code 2105807).

$1.99

$

In Stock, Qty 5

0

21

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) Use from Engine SN 1000016.

$2.49

$

In Stock, Qty 20+

0

22

Honda 95701-08028-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X28) (Honda Code 2581387).

$1.99

$

In Stock, Qty 5

0

23

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$2.49

$

In Stock, Qty 20+

0
