HS928 WA (SZAS) - Honda 28" Snow Blower, Made in Japan (SN: SZAS-1100001 - SZAS-1129999) CRANKCASE COVER Parts Diagram

28" Snow Blower, Made in Japan

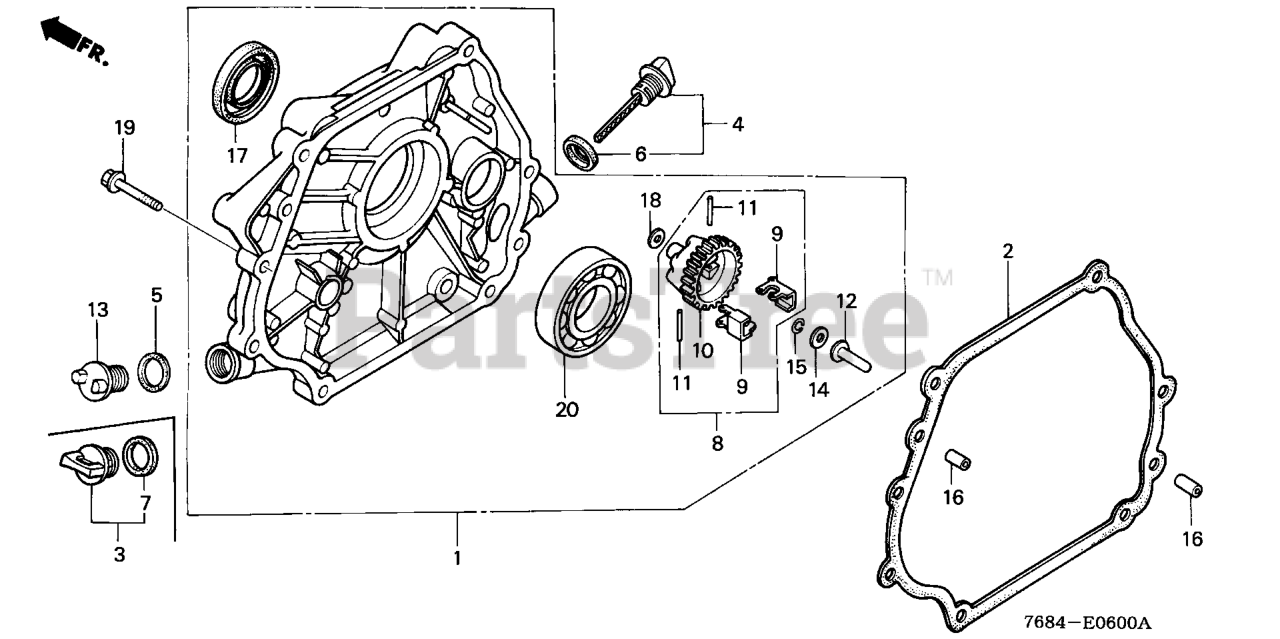

CRANKCASE COVER Parts Diagram

  • Title

1

Honda 11300-ZE2-000

SEE PART DETAILS - SUP; COVER ASSY., CRANKCASE (Honda Code 2159853). (S-TYPE)
(Superseded to 11300-Z1D-000)

Note: Use up to Engine SN 1832354.

$296.99

$

Usually ships in 3-6 days

0

1

Honda 11300-Z1D-000

SEE PART DETAILS - PRI; COVER ASSY., CRANKCASE

$296.99

$

Usually ships in 3-6 days

0

2

Honda 11381-ZE2-800

SEE PART DETAILS - SUP; GASKET, CASE COVER (Honda Code 3678505).
(Superseded to 11381-ZE2-801)

Note: Use up to Engine SN 1641019.

$11.99

$

In Stock, only 4 left!

0

2

Honda 11381-ZE2-801

SEE PART DETAILS - PRI; GASKET, CASE COVER (Honda Code 6436851).

$11.99

$

In Stock, only 4 left!

0

3

Honda 15600-ZG4-003

SEE PART DETAILS - PRI; CAP ASSY., OIL FILLER

$6.99

$

In Stock, only 1 left!

0

4

Honda 15600-735-003

SEE PART DETAILS - PRI; CAP ASSY., OIL FILLER (Honda Code 4523106).

$9.49

$

In Stock, Qty 11

0

6

Honda 15625-ZE1-003

SEE PART DETAILS - PRI; GASKET, OIL FILLER CAP (Honda Code 4497947).

$3.49

$

In Stock, only 3 left!

0

7

Honda 15625-ZE1-003

SEE PART DETAILS - PRI; GASKET, OIL FILLER CAP (Honda Code 4497947).

$3.49

$

In Stock, only 3 left!

0

8

Honda 16510-ZE2-000

GOVERNOR ASSY. (STD) (Honda Code 2871390).

$28.99

$

Usually ships in 3-6 days

0

9

Honda 16511-ZE2-000

WEIGHT, GOVERNOR (Honda Code 2025955).

$4.49

$

Usually ships in 3-6 days

0

10

Honda 16512-ZE2-000

HOLDER, GOVERNOR WEIGHT (Honda Code 2106219).

$19.99

$

Usually ships in 3-6 days

0

11

Honda 16513-ZE2-000

PIN, GOVERNOR WEIGHT (Honda Code 2025971).

$2.49

$

Usually ships in 3-6 days

0

12

Honda 16531-Z0A-000

SEE PART DETAILS - PRI; SLIDER, GOVERNOR (Honda Code 6605117).

$3.99

$

In Stock, only 3 left!

0

12

Honda 16531-ZE2-000

SEE PART DETAILS - SUP; SLIDER, GOVERNOR (Honda Code 2025989).
(Superseded to 16531-Z0A-000)

Note: Use up to Engine SN 1832354.

$3.99

$

In Stock, only 3 left!

0

15

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER (Honda Code 2456697).

$1.99

$

In Stock, only 3 left!

0

16

Honda 90701-HC4-000

PIN, DOWEL (8X12) (Honda Code 2978443).

$3.99

$

In Stock, only 2 left!

0

17

Honda 91201-890-003

OIL SEAL (30X46X8) (Honda Code 0756494).

$11.99

$

In Stock, Qty 5

0

18

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

19

Honda 95701-08035-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X35) (Honda Code 2724029).

$2.99

$

In Stock, only 4 left!

0

20

Honda 96100-62060-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6206) (Honda Code 0636118).

$32.99

$

In Stock, only 1 left!

0
