HS928 WA/A (SZAS) - Honda 28" Snow Blower, Made in Japan (SN: SZAS-1130001 - SZAS-9999999) CONTROL PANEL Parts Diagram

28" Snow Blower, Made in Japan

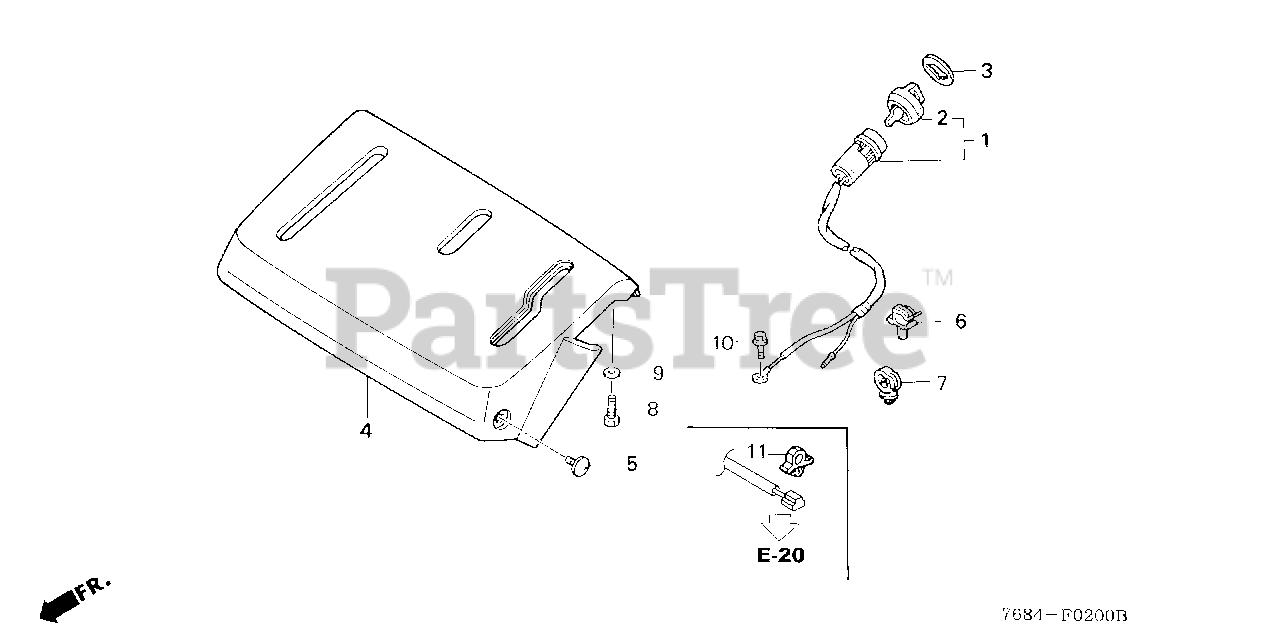

CONTROL PANEL Parts Diagram

  • Title

1

Honda 35100-767-B11

SWITCH ASSY., COMBINATION

$98.99

$

Usually ships in 3-6 days

0

2

Honda 35110-766-003

KEY ASSY., COMBINATION SWITCH (RED)

$8.99

$

In Stock, only 1 left!

0

3

Honda 36101-767-A10

SPACER, ENGINE STOP SWITCH

$4.99

$

Usually ships in 3-6 days

0

4

Honda 54221-767-A10ZA

PANEL, CONTROL *NH296* (ALPS GRAY)

$137.99

$

Usually ships in 3-6 days

0

5

Honda 90123-750-000

SCREW, METER VISOR SETTING

Note: Use up to Frame SN 1135290.

$4.99

$

In Stock, Qty 6

0

5

Honda 90123-V15-000

BOLT, CONTROL PANEL

Note: Use from Frame SN 1135291.

$4.99

$

In Stock, only 1 left!

0

7

Honda 90683-SA0-003

CLIP, WIRE HARNESS (25MM)

$12.99

$

Usually ships in 3-6 days

0

8

Honda 92101-05012-0G

BOLT, HEX. (5X12)

Note: Use up to Frame SN 1135410.

$1.49

$

In Stock, only 4 left!

0

8

Honda 90101-P4V-010

BOLT, FLANGE (5X12)

Note: Use from Frame SN 1135411.

$3.49

$

In Stock, only 2 left!

0

9

Honda 94101-05000

WASHER, PLAIN (5MM)

$1.49

$

In Stock, only 3 left!

0

10

Honda 95701-06010-00

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 13

0

11

Honda 30701-883-000

SEE PART DETAILS - PRI; CLIP, IGNITION WIRE (8MM)

$3.99

$

In Stock, only 1 left!

0
