HS928 WA/A (SZAS) - Honda 28" Snow Blower, Made in Japan (SN: SZAS-1130001 - SZAS-9999999) AUGER Parts Diagram

28" Snow Blower, Made in Japan

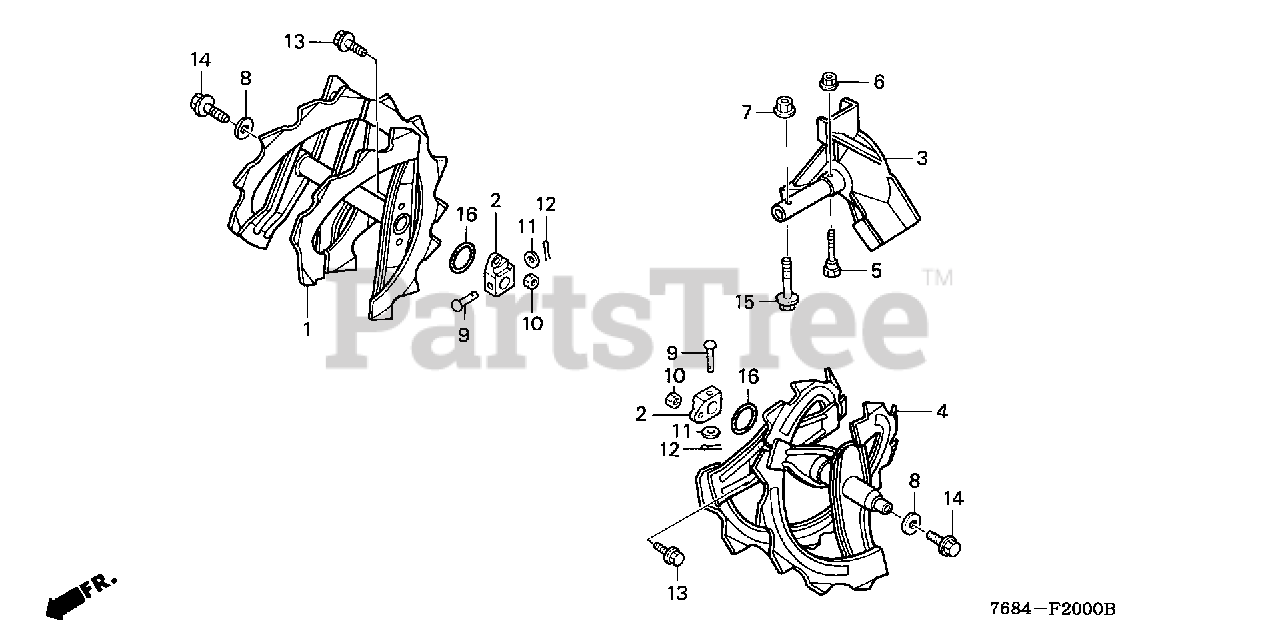

AUGER Parts Diagram

  • Title

NI

Honda 04700-768-E100

SEE PART DETAILS - SUP; AUGER SKID KIT, COMMERCIAL

$

$

Not available

NI

Honda 04700-768-E110

SEE PART DETAILS - PRI; AUGER SKID KIT, COMMERCIAL

$

$

Not available

1

Honda 72410-768-010

AUGER, R.

$442.99

$

Usually ships in 3-6 days

0

2

Honda 72419-767-013

BOSS, LOCK BOLT

$25.99

$

Usually ships in 3-6 days

0

3

Honda 72440-768-000

BLOWER

$251.99

$

In Stock, only 1 left!

0

4

Honda 72450-768-010

AUGER, L.

$447.99

$

Usually ships in 3-6 days

0

5

Honda 90102-732-010

SEE PART DETAILS - PRI; BOLT, LOCK

$6.49

$

In Stock, Qty 6

0

6

Honda 90114-SA0-000

NUT, SELF-LOCK (6MM)

$4.49

$

In Stock, Qty 20+

0

7

Honda 90309-428-731

NUT, FLANGE (M8X1.25) (SELF-LOCK)

$4.99

$

In Stock, Qty 14

0

8

Honda 90430-657-000

WASHER (23X8.3X3.2)

$9.49

$

In Stock, only 1 left!

0

9

Honda 90757-767-000

PIN (7X40)

$4.49

$

In Stock, Qty 20+

0

10

Honda 90114-SA0-000

NUT, SELF-LOCK (6MM)

$4.49

$

In Stock, Qty 20+

0

11

Honda 90501-KV6-670

WASHER, PLAIN (7MM)

$2.49

$

In Stock, only 2 left!

0

12

Honda 94201-30250

PIN, SPLIT (3.0X25)
(Superseded to 94201-30450)

$1.49

$

Usually ships in 3-6 days

0

12

Honda 94201-30450

PIN, SPLIT (3.0X45)

$1.49

$

Usually ships in 3-6 days

0

13

Honda 92101-06016-0A

BOLT, HEX. (6X16)

$1.99

$

In Stock, Qty 20+

0

14

Honda 95701-08016-00

BOLT, FLANGE (8X16)

$2.49

$

In Stock, Qty 7

0

15

Honda 95701-08035-00

BOLT, FLANGE (8X35)

$2.99

$

In Stock, only 3 left!

0

16

Honda 91308-PA9-003

O-RING (19.8X1.9) (ARAI)

$5.99

$

In Stock, only 2 left!

0
