HS928 TA/A (SZAS) - Honda 28" Snow Blower, Made in Japan (SN: SZAS-1130001 - SZAS-9999999) CYLINDER Parts Diagram

28" Snow Blower, Made in Japan

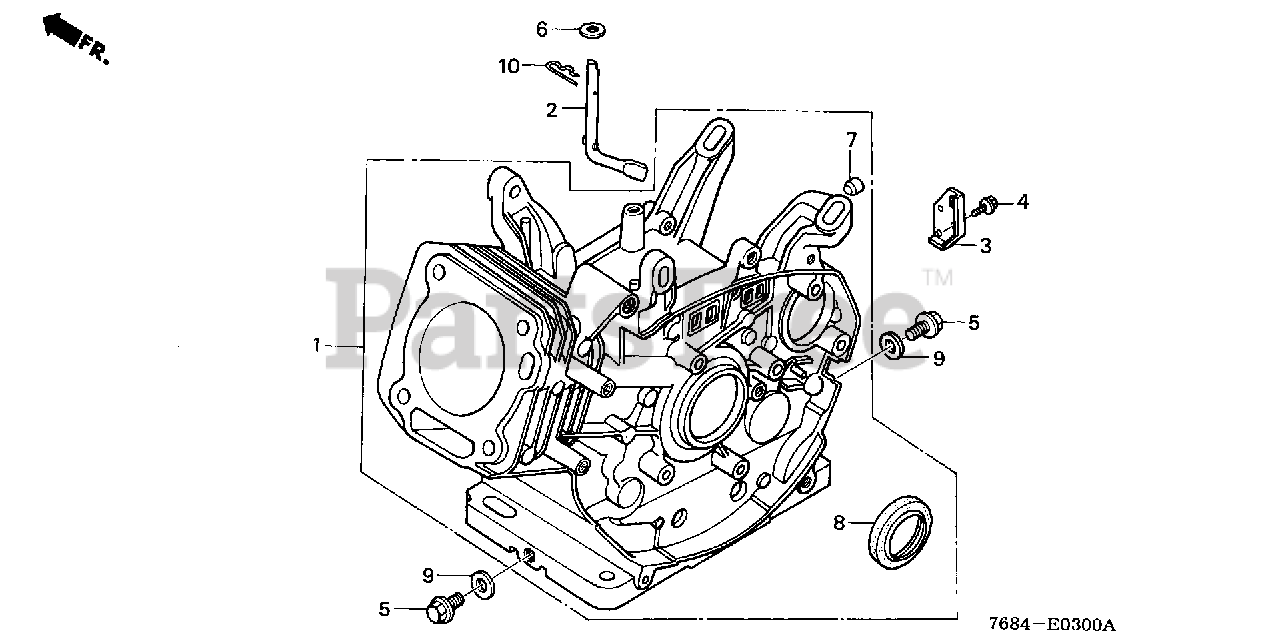

CYLINDER Parts Diagram

  • Title
1

Honda 12000-ZH9-405

CYLINDER ASSY. (STD)
(Superseded to 12000-Z1D-405)

$202.99

$

Usually ships in 3-6 days

0

2

Honda 16541-ZE2-010

SHAFT, GOVERNOR ARM

$12.99

$

Usually ships in 3-6 days

0

3

Honda 32108-ZE2-P50

BASE, WIRE CLIP

$10.99

$

Usually ships in 3-6 days

0

4

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 17

0

5

Honda 90131-896-650

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG (12X15)

$5.49

$

In Stock, Qty 11

0

6

Honda 90446-KE1-000

WASHER (8.2X17X0.8)

$2.49

$

In Stock, only 1 left!

0

7

Honda 90801-ZE2-003

PLUG, SEALING (RUBBER 10MM)

Note: Use up to Engine SN 2406961.

$4.99

$

Usually ships in 3-6 days

0

8

Honda 91201-890-003

OIL SEAL (30X46X8)

$11.99

$

In Stock, Qty 5

0

9

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.49

$

In Stock, Qty 20+

0

10

Honda 94251-10000

PIN, LOCK (10MM)

$1.99

$

In Stock, Qty 5

0
