HS928 K1 WAS (SAVJ) - Honda 28" Snow Blower, Made in Japan (SN: SAVJ-5000001 - SAVJ-9999999) MUFFLER Parts Diagram

28" Snow Blower, Made in Japan

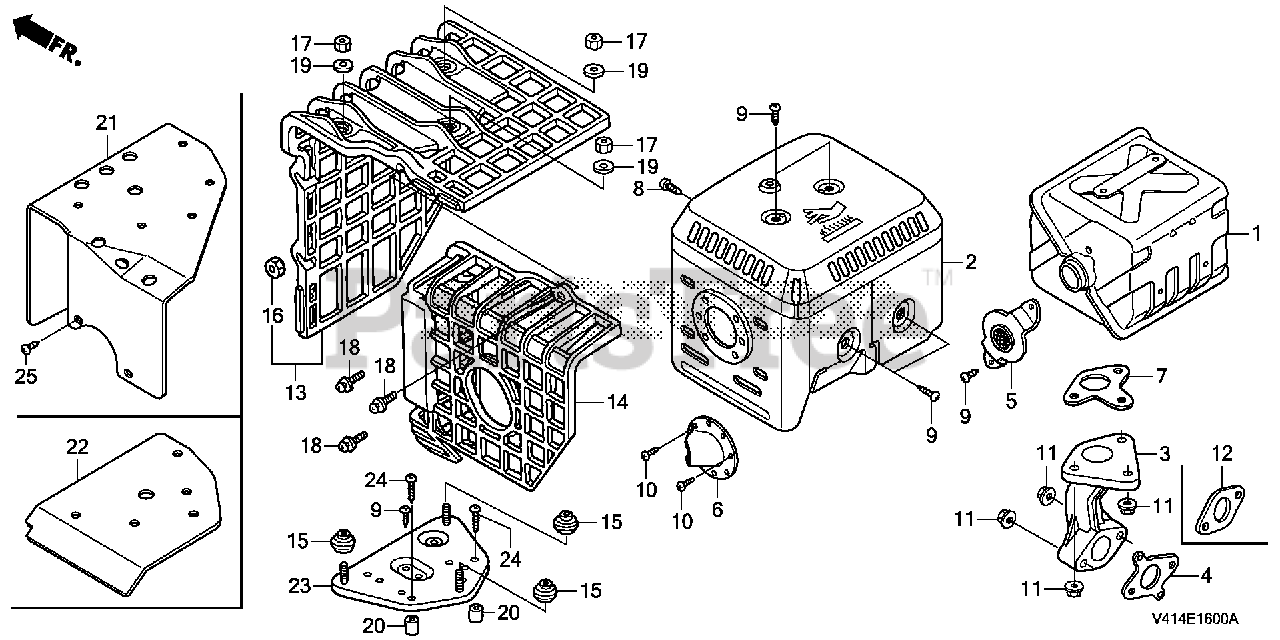

MUFFLER Parts Diagram

  • Title
1

Honda 18310-Z5T-010

SEE PART DETAILS - PRI; MUFFLER

$37.99

$

In Stock, only 2 left!

0

2

Honda 18320-Z5T-000

PROTECTOR, MUFFLER

$21.99

$

In Stock, only 1 left!

0

3

$28.99

$

Usually ships in 3-6 days

0

4

Honda 18333-Z1C-901

SEE PART DETAILS - PRI; GASKET, EX. PIPE

$3.49

$

In Stock, only 1 left!

0

5

Honda 18336-ZE3-000

FLANGE, BAFFLE

$14.99

$

Usually ships in 3-6 days

0

6

Honda 18337-Z1C-H00

CAP, MUFFLER

$41.99

$

Usually ships in 3-6 days

0

7

Honda 18381-ZE2-801

GASKET, MUFFLER (NIPPON LEAKLESS)

$15.99

$

In Stock, only 2 left!

0

7

Honda 18381-Z1C-801

GASKET, MUFFLER (THAI LEAKLESS)

$15.99

$

In Stock, only 1 left!

0

8

Honda 90006-ZE2-000

SCREW, TAPPING (6X10)

$2.49

$

In Stock, only 4 left!

0

9

Honda 90050-ZE1-000

SCREW, TAPPING (5X8)

$2.49

$

In Stock, Qty 20+

0

10

Honda 90055-ZE1-000

SCREW, TAPPING (4X6)

$1.49

$

In Stock, Qty 20+

0

11

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0
