HS928 K1 WAS (SAVJ) - Honda 28" Snow Blower, Made in Japan (SN: SAVJ-5000001 - SAVJ-9999999) CHANGE LEVER (1) Parts Diagram

28" Snow Blower, Made in Japan

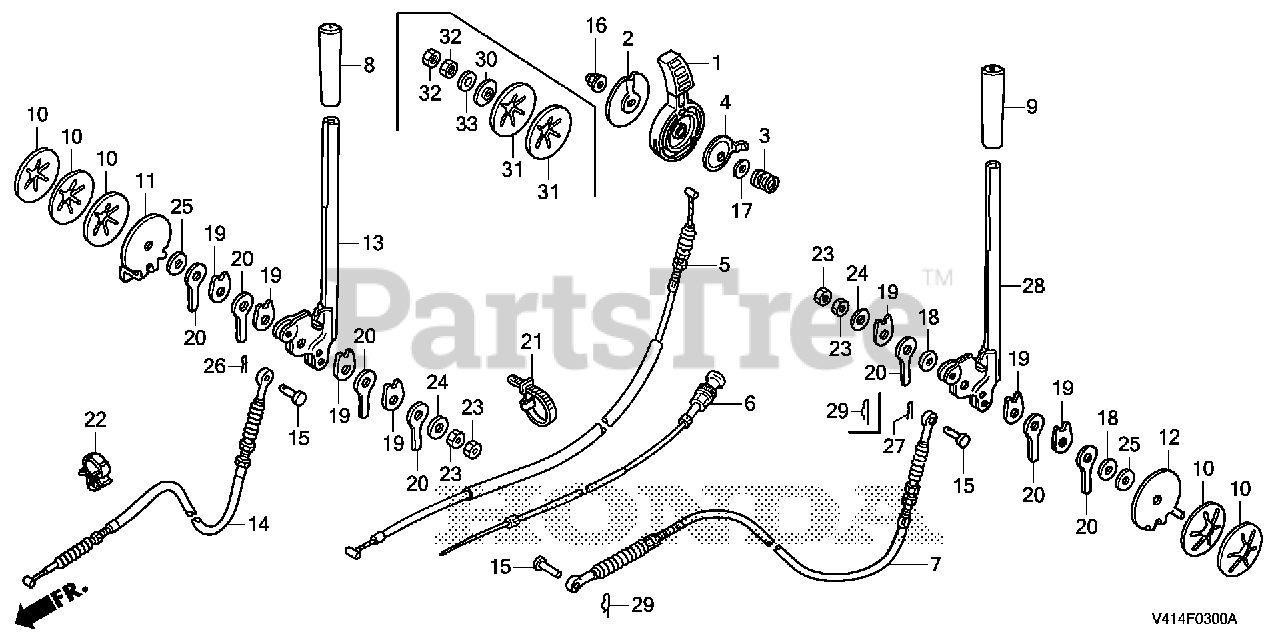

CHANGE LEVER (1) Parts Diagram

  • Title

1

Honda 17851-767-000

LEVER, THROTTLE

$13.99

$

In Stock, only 1 left!

0

2

Honda 17857-V03-000

PLATE, THROTTLE LEVER

$6.99

$

Usually ships in 3-6 days

0

3

Honda 17858-VA4-000

SPRING, THROTTLE LEVER

Note: Use up to Frame SN 5015472.

$4.49

$

Usually ships in 3-6 days

0

4

Honda 17859-VA4-000

SEAT, SPRING

$5.99

$

Usually ships in 3-6 days

0

5

Honda 17910-V41-B10

CABLE, THROTTLE

$18.99

$

Usually ships in 3-6 days

0

6

Honda 17950-V41-B10

CABLE, CHOKE

$23.99

$

In Stock, only 4 left!

0

7

Honda 24150-V13-000

CABLE, CHANGE

$39.99

$

In Stock, only 1 left!

0

8

Honda 24411-719-000

GRIP, CHANGE LEVER

$11.99

$

Usually ships in 3-6 days

0

9

Honda 24411-734-A00

GRIP, CHANGE LEVER

$8.99

$

Usually ships in 3-6 days

0

10

Honda 42915-959-000

SPRING, ADJUSTING ARM

$6.99

$

Usually ships in 3-6 days

0

11

Honda 50326-767-000

PLATE, R. STOPPER

$8.99

$

In Stock, only 2 left!

0

12

Honda 50338-767-000

PLATE, L. STOPPER

$8.99

$

In Stock, only 2 left!

0

13

Honda 54311-767-000

LEVER, CHANGE

$36.99

$

In Stock, only 1 left!

0

14

Honda 54580-V41-A10

CABLE, CHUTE GUIDE

$28.99

$

Usually ships in 3-6 days

0

15

Honda 68331-876-000

PIN, CONTROL BOX SETTING

$4.99

$

In Stock, only 2 left!

0

16

Honda 90308-SA0-981

NUT, SELF-LOCK (6MM)

Note: Use up to Frame SN 5015472.

$8.49

$

Usually ships in 3-6 days

0

17

Honda 90401-430-000

WASHER (10.2MM)

Note: Use up to Frame SN 5015472.

$2.49

$

Usually ships in 3-6 days

0

18

Honda 90401-MA1-000

WASHER, LOCK

$7.49

$

Usually ships in 3-6 days

0

19

Honda 90501-767-000

WASHER, FRICTION

$4.49

$

Usually ships in 3-6 days

0

20

Honda 90502-767-000

WASHER, FRICTION SETTING

$4.49

$

Usually ships in 3-6 days

0

21

Honda 90651-KV6-003

BAND, WIRE (165MM) (BLACK)

$4.99

$

Usually ships in 3-6 days

0

22

Honda 91451-768-S00

CLAMP, CABLE

$2.99

$

Usually ships in 3-6 days

0

23

Honda 94001-08000-0S

NUT, HEX. (8MM)

$1.99

$

In Stock, Qty 10

0

24

Honda 94101-08000

WASHER, PLAIN (8MM)

$1.49

$

In Stock, Qty 20+

0

25

Honda 94103-08000

WASHER, PLAIN (8MM)

$0.99

$

In Stock, Qty 20+

0

26

Honda 94201-20120

PIN, SPLIT (2.0X12)

$1.49

$

In Stock, Qty 7

0

27

Honda 94201-20120

PIN, SPLIT (2.0X12)

$1.49

$

In Stock, Qty 7

0

28

Honda 54311-767-000

LEVER, CHANGE

$36.99

$

In Stock, only 1 left!

0

29

Honda 94251-06000

PIN, LOCK (6MM)

$1.49

$

In Stock, Qty 20+

0

30

Honda 33601-428-000

WASHER, RR. TURN SIGNAL

Note: Use from Frame SN 5015473.

$4.49

$

Usually ships in 3-6 days

0

31

Honda 42915-959-000

SPRING, ADJUSTING ARM

Note: Use from Frame SN 5015473.

$6.99

$

Usually ships in 3-6 days

0

32

Honda 94001-06080-0S

NUT, HEX. (6MM)

Note: Use from Frame SN 5015473.

$1.99

$

In Stock, Qty 6

0

33

Honda 94101-06800

WASHER, PLAIN (6MM)

Note: Use from Frame SN 5015473.

$0.99

$

In Stock, Qty 20+

0
